Yamaha VMAX VMX17Y(C) 2009 Service Manual Set (P/N LIT-11616-22-64)

585 Pages • ZIP Download: 2 Printable PDFs (English)

4.7starstarstarstarstar_half(3)
$17.77 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Models: VMAX (VMX17Y(C))

Sub-models / Variants: USA (2S31), California (2S32)

Model Year: 2009


  • Engine: Liquid-cooled 4-stroke, DOHC, V-type 4-cylinder

  • Engine displacement: 1679.0 cm³

  • Bore x stroke: 90.0 x 66.0 mm

  • Compression ratio: 11.30:1

  • Lubrication system: Wet sump

  • Transmission: Constant mesh 5-speed

  • Frame type: Diamond

  • Front suspension: Telescopic fork, coil spring/oil damper

  • System voltage: 12 V

  • Ignition system: TCI (digital)

  • Spark plug: NGK/CR9EIA or DENSO/IU27D

  • Front disc brake: 320.0 x 5.5 mm dual disc

Yamaha Manual Features & Selected Content Preview

Publication Pages

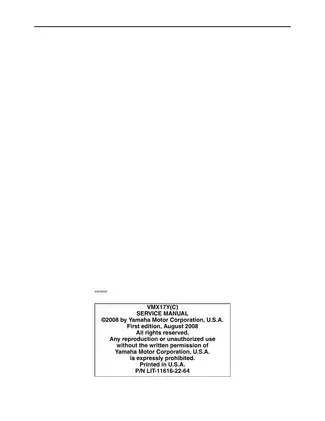

Service Manual — 2009 Yamaha VMAX VMX17Y(C). Model codes 2S31 (USA) and 2S32 (California). First edition, August 2008. P/Ns LIT-11616-22-64 and 2S3-28197-10. 584
Technical Bulletin M2012-003 — Valve Clearance Adjustment Correction. Applies to all 2009–2012 VMX17(C) models. 1

Use the bulletin alongside the valve-clearance section: it corrects two crankshaft-position references on printed page 3-5. Its later-model applicability concerns that correction only; the core service manual remains specific to the 2009 model.

PDF Search, Bookmarks, and Wiring Detail

Search and navigation: Both PDFs contain searchable text, but the bulletin’s reproduced manual-page image is not searchable. The service manual has chapter and section bookmarks; its top-level contents entry has no jump target. The bulletin has no bookmarks. Small wiring labels are readable when enlarged.

The ZIP download contains two printable English PDFs with 585 pages total. Covers, front matter, blank pages, and the service manual’s two appended wiring-diagram sheets are already included, along with the separate bulletin.


Engine, Chassis, FI, and ABS Service

These selected topics outline the repair coverage rather than reproduce the complete contents. Other sections include instrument-display settings and air-induction reed-valve checks.

  • Engine and transmission: Step-by-step engine removal and installation, camshaft and cylinder-head service, crankcase separation, clutch repair, and transmission assembly.

  • Brakes and ABS: Caliper and master-cylinder repair, hydraulic bleeding, wheel-sensor service, hydraulic-unit operation tests, and fault-code diagnosis.

  • Chassis and shaft drive: Wheel removal and static balancing, fork disassembly, steering-head and swingarm service, rear-shock removal, and final-drive adjustment.

  • Fuel and intake: Fuel-pump and injector pressure tests, throttle-body cleaning and synchronization, throttle- and accelerator-position sensor adjustment, YCC-T/YCC-I coverage, and EXUP cable adjustment.

  • Cooling system: Radiator and oil-cooler removal and installation, thermostat testing, and water-pump disassembly, inspection, and reassembly.

  • Electrical diagnosis: Circuit diagrams and troubleshooting for ignition, starting, charging, lighting, signaling, cooling, fuel injection, and the fuel pump.

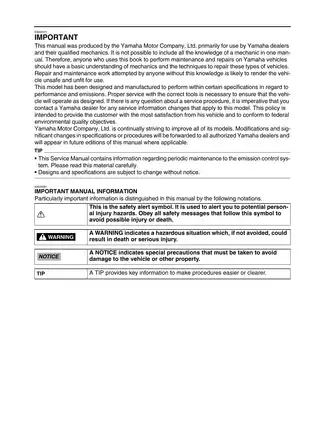

Yamaha produced this manual primarily for its dealers and qualified mechanics. It assumes a basic understanding of motorcycle mechanics and repair techniques, with the correct tools available.

Maintenance and Internal Engine Repair

Periodic service covers valve-clearance adjustment, engine-oil pressure measurement, hydraulic clutch bleeding, coolant replacement, ABS brake bleeding, steering-head adjustment, suspension settings, and final-drive oil service.

Internal engine coverage extends to the decompression system, timing-chain guides and tensioners, valve guides and seats, and starter clutch. Lower-engine procedures address connecting rods and pistons, crankshaft and balancer bearings, the oil pump and relief valve, and the shift drum and forks.

Hydraulic clutch work includes the master and release cylinders. The middle drive and driven pinion sections provide inspection, assembly, backlash adjustment, and gear-alignment procedures.

Wheel, Suspension, and Final-Drive Setup

Chassis procedures cover front and rear wheel-sensor rotors, fork internals, suspension linkage, the swingarm, and drive shaft. Final-drive setup includes pinion/ring-gear alignment, shim selection, and backlash adjustment.

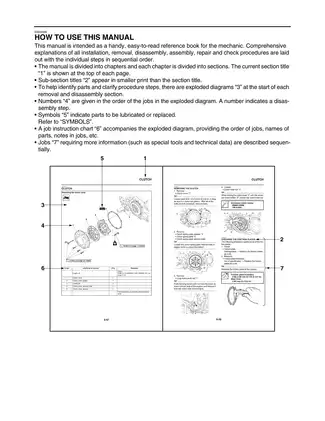

Exploded views are paired with job charts identifying removal order, parts, replacement items, lubrication points, and related technical data. This supports planning disassembly and reassembly without relying on a parts illustration alone.

Fuel Injection, Electronic Intake, and Cooling

The YCC-T and YCC-I explanations connect electronic throttle control with variable intake-funnel operation. Related procedures cover intake-funnel servo checks and installation, while California-specific evaporative-emissions coverage includes canister checks and hose routing.

Fuel-system testing distinguishes fuel-pump delivery pressure from injector pressure checks. Cooling procedures include radiator-cap pressure testing, thermostat operation checks, and water-pump seal and bearing inspection.

ECU and ABS Fault Diagnosis

ECU diagnostic mode provides sensor-operation and actuator-operation tables alongside fault-specific checks. ABS operation and self-diagnosis explanations are backed by warning-light workflows, fault-code diagnosis and deletion, and final operational checks.

These sections connect displayed symptoms and codes with the relevant wiring and component tests. The ABS ECU and hydraulic unit are non-disassemblable assemblies; their coverage concerns diagnosis, external connections, removal, and replacement.

Diagrams and Workshop Reference

Visual references include the engine-oil lubrication chart, cooling-system diagrams, and cable-routing drawings. Electrical references include the fuel-injection circuit diagram, ABS component and coupler-location charts, and the VMX17Y(C) 2009 wiring diagram, supplied in black-and-white and color versions.

The 71-page specifications chapter consolidates engine, chassis, and electrical specifications with tightening torques, lubrication points, fluid-capacity data, inspection limits, and electrical test specifications.

Special Tools and Repair Cautions

Diagnostic and fuel tools: Listed equipment includes test coupler adapter 90890-03149, vacuum gauge 90890-03094 / YU-44456, pressure gauge 90890-03153, and fuel-pressure adapter 90890-03176.

Other workshop tools: References include fork seal driver 90890-01502 / YM-A0948, middle-gear backlash tool 90890-04080, and radiator cap tester 90890-01325 / YU-24460-01.

Incorrect camshaft-cap bolt release can damage the cylinder heads, camshafts, or caps. Foreign material left in a wheel hub can damage the inner ABS sensor rotor and wheel sensor.

Brake/ABS hydraulic work, pressurized fuel testing, and internal engine repair should be performed only with the required mechanical knowledge, proper support equipment, and the complete factory procedure in front of the technician.

Valve-Clearance and Sensor-Test Preview

The valve-clearance section specifies intake clearance of 0.10–0.17 mm and exhaust clearance of 0.22–0.29 mm, measured with the engine cold at room temperature.

Electrical component testing includes a crankshaft-position sensor resistance specification of 192–288 Ω at 20 °C (68 °F), alongside the corresponding test connections.
