1991–2001 Honda GX240K1, GX270, GX340K1, GX390K1 Engine Shop Manual (P/N 61ZH910E7)

Honda's July 2001 shop manual covers the 1991–2001 GX240K1, GX270, GX340K1, and GX390K1 engines, including their reduction and starting configurations.

Printable PDF and Wiring Detail

Text search, navigation and wiring detail: PDF text search and embedded bookmarks are not available. Small wire-color codes and terminal labels in the wiring and connection diagrams require zooming for comfortable reading.

Supplied as one printable, English-language 111-page PDF, the manual includes 99 technical and index pages, two cover pages, two safety/introduction pages, and eight otherwise blank pages carrying only headers and footers.

Engine Overhaul, Fuel Control and Electrical Diagnosis

These selected topics highlight the workshop coverage; the manual also includes engine-switch continuity checks and optional muffler-cover assembly drawings.

• Internal engine repair: Cylinder-head and valve service, crankshaft and piston inspection, camshaft and balancer timing alignment, and crankcase cover disassembly.

• Fuel and speed control: Carburetor removal and disassembly, float-level inspection, pilot-screw replacement, fuel-tank service, and governor adjustment.

• Ignition and electrical diagnosis: Ignition-coil air-gap adjustment, Oil Alert troubleshooting, charging-system tests, starter-motor inspection, and wiring diagrams.

• Recoil starter and cooling components: Recoil starter rebuilding, fan-cover removal, flywheel removal and installation, and cooling-fan assembly.

• Intake and exhaust: Dual-element and cyclone air-cleaner service, standard and silent muffler disassembly, and optional spark-arrester maintenance.

• Reduction units: Chain and gear drive disassembly, centrifugal clutch inspection, bearing replacement, and P.T.O. shaft installation.

Written for qualified professional technicians, this manual assumes the training, tools, and equipment needed for engine service and repair.

Carburetor, Fuel System and Governor

The carburetor identification table links individual carburetor variants to their inner- or outer-vent arrangements, main jets, and pilot-screw settings. Illustrations of the internal and external passages help technicians distinguish the configurations before selecting the relevant service data.

Repair instructions address the float valve, pilot jet, main nozzle, and limiter cap. The pilot-screw section explains that limiter-cap removal breaks the pilot screw, requiring both parts to be replaced.

Fuel-tank, filter, strainer, and fuel-line service is accompanied by governor-arm and control-base assembly details. Governor adjustment covers linkage positioning and the maximum-speed setting.

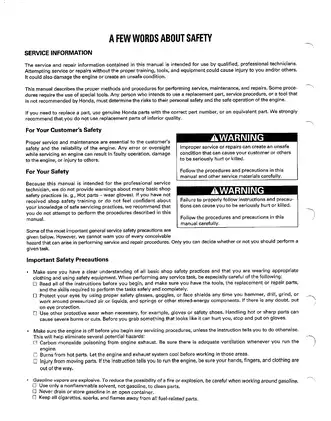

Fuel-system and rotating-assembly work carries risks from gasoline vapors, hot components, and moving parts; the manual sets out the related precautions.

Ignition, Oil Alert and Starting Systems

Separate 1 A/3 A, 10 A, and 18 A charging-system diagrams show the different rectifier and regulator/rectifier arrangements. Terminal views and resistance tables accompany fan-cover wire-connection drawings for engines with and without a control box.

The troubleshooting charts address Hard Starting, Engine Starts But Then Stalls, and No Spark at Spark Plug. Their references to component tests help technicians follow a fault from its symptom to the relevant inspection, including checks that distinguish ignition problems from faults in the oil-level switch, Oil Alert unit, or wiring.

Starter-motor coverage includes solenoid testing, brush measurements, armature continuity checks, overrunning-clutch inspection, and cranking-performance specifications.

Cylinder Head and Internal Engine Repair

Step-by-step procedures cover valve-guide replacement and reaming, plus valve-seat reconditioning. Model-specific valve identification accompanies the assembly drawings. The exhaust-valve instructions warn that omitting the valve rotator can allow the valve to drop into the cylinder, risking internal engine damage.

Cylinder-wear measurements, piston-ring inspection, connecting-rod oil-clearance checks, and camshaft inspection support internal repair assessment. Timing-mark illustrations show camshaft and balancer alignment; assembly views identify piston orientation, connecting-rod positioning, and governor components.

Reduction Units and P.T.O. Configurations

The reduction chapter treats 1/2 chain drives with and without a centrifugal clutch, the 1/2 gear drive, and the 1/6 gear drive separately. Bearing and seal service is supported by clutch friction-disc thickness and plate-warpage inspection data.

Engine dimensional drawings and P.T.O. shaft drawings distinguish metric and inch straight, tapered, and threaded shaft configurations. Installation instructions also cover optional remote throttle and choke kits.

Maintenance Standards and Special Tools

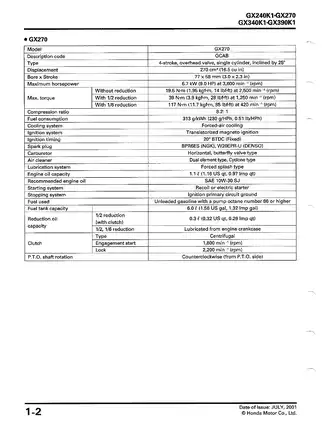

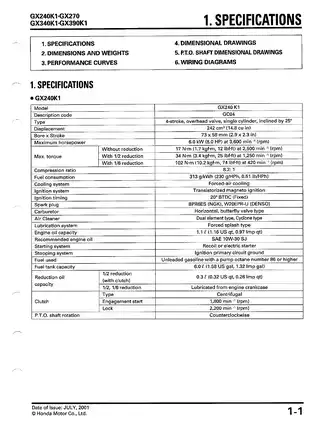

Model-specific tables supply cylinder-compression data, valve clearances, electrical resistance values, wear limits, and component torque settings. Performance curves, lubrication and forced-air cooling specifications, and centrifugal clutch data provide further reference material for inspection and setup.

The tool listings identify float level gauge 07401-0010000 and valve guide driver 07742-0010200, together with application-specific bearing drivers, pilots, and valve-seat cutting tools.

A Preview of Valve and Carburetor Inspection Data

For the four covered engines, the valve-clearance section specifies cold clearances of 0.15 ± 0.02 mm for the intake and 0.20 ± 0.02 mm for the exhaust.

The carburetor inspection section gives a standard float height of 13.2 mm (0.52 in), measured with the float just contacting the valve seat without compressing the valve spring.
