Honda Goldwing GL1500 SE / Aspencade 1988–2000 Manual Collection (P/N 37MAM830)
194 Pages • ZIP Download: 11 Printable PDFs (EN, NL)
Honda Models Covered & Key Technical Specifications
Models: Goldwing GL1500 SE, Goldwing GL1500 Aspencade
Sub-models / Variants: SE (Speciale Edition) (GL1500 SE: E, F, ED, U, SW, FI, AR, SP, SI), ASP (Aspencade) (GL1500 A: F, ED, U, SD, FI, AR, SP)
Additional bulletin application: Valkyrie (GL1500C/CT; optional CB radio update only)
Model Years: 1988–2000 (1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000)
Carburetor vent-hose update VIN limits (GL1500 #1): 1988 GL1500, 49-state models: up to VIN 1HFSC2200JA004107; California models: up to VIN 1HFSC2218JA000959.
CB radio serial-number coverage (GL1500 #3): Optional GL1500 CB radios with serial numbers up to 6655.
AICV recall VIN identification (GL1500 #9): The prefixes below occupy VIN positions 1–11; * represents the check digit at position 9. Only the listed six-digit serial numbers are included in this recall.
2000 GL1500A, California — VIN prefix 1HFSC221*YA: 200010, 200085, 200090, 200098, 200102, 200104.
2000 GL1500A, 49-state — VIN prefix 1HFSC220*YA: 200548, 200555, 200559, 200592, 200593, 200603, 200608, 200630, 200638, 200647.
2000 GL1500SE, California — VIN prefix 1HFSC224*YA: 200200, 200224, 200225, 200232, 200239.
2000 GL1500SE, 49-state — VIN prefix 1HFSC223*YA: 202301, 202332, 202338, 202341, 202342, 202344, 202346, 202349, 202368, 202370, 202391, 202398, 202399, 202407, 202413, 202415, 202422, 202424, 202426, 202444, 202461, 202464, 202522, 202530, 202534, 202547, 202687, 202749, 202827, 202834, 202836, 202839, 202840, 202845, 202870, 202872, 202876, 202891, 202894, 202895, 202896, 202907, 202909, 202918, 202921, 202923, 202924, 202927, 202932, 202997, 203002, 203006, 203012, 203030, 203036, 203045, 203047, 203057, 203060, 203124.
Specification applicability: The following specifications are from the GL1500 SE / GL1500 A owner's handbook.
-
Engine displacement: 1,520 cm³
-
Compression ratio: 9.8:1
-
Bore and stroke: 71 x 64 mm
-
Engine oil capacity (after drain): 3.5 liters
-
Engine oil capacity (with filter change): 3.7 liters
-
Engine oil capacity (after disassembly): 4.3 liters
-
Final drive oil capacity: 140 cm³ (SAE 80 Hypoid gear oil)
-
Coolant system capacity: 4.1 liters
-
Fuel tank capacity: 23 liters
-
Spark plug gap: 0.8–0.9 mm
-
Idle speed: 800 ± 80 rpm (or 800 ± 50 rpm for SW models)
-
Rear shock absorber bolt torque: Upper: 23 N-m (2.3 kgf-m); lower right: 23 N-m (2.3 kgf-m); lower left: 69 N-m (7.0 kgf-m)
-
Final drive oil drain bolt torque: 20 N-m (2.0 kgf-m)
Honda Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

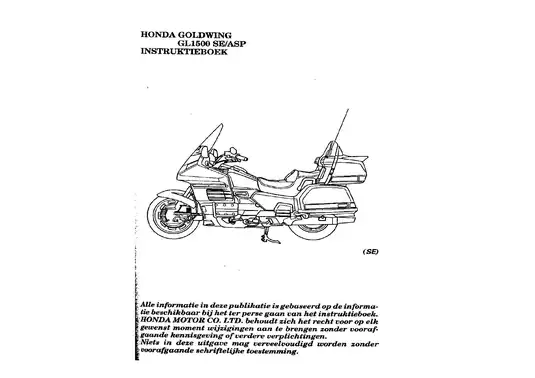

| Honda GL1500 SE / GL1500 A Aspencade owner's handbook — Dutch; P/N 37MAM830, printed code 00X37-MAM-8300; includes appended references | 82 |
| GL1500 #1 — 1988 Carburetor Vent Hose Routing; revised March 1988 | 5 |
| GL1500 #2 — 1988 Low Speed Driveability Improvement; revised July 1988 | 4 |
| GL1500 #3 — CB Radio Sub-Harness; December 1988 | 1 |
| GL1500 #4 — 1988/1989 Saddlebag Water Leakage; May 1989 | 1 |
| GL1500 #5 — 1988/1989 Improved Windshield Seal; revised December 1989 | 1 |
| GL1500 #6 — All Models of 1988–1993 GL1500 Bank Angle Sensor Replacement; June 1995 | 3 |
| GL1500 #8 — 1997–1998 GL1500C/CT Valkyrie Hondaline CB Radio Kit; revised June 1998 | 2 |
| GL1500 #9 — 2000 GL1500A/SE AICV T-fitting emissions recall; April 2000 | 5 |
| Aftermarket audio connector and wiring-test excerpt — English | 2 |
| Third-party GL1500 exploded-view compilation | 88 |
The handbook provides operating and routine maintenance information, while the American Honda bulletins address specific repairs and updates. Each bulletin has its own model, year, equipment, or VIN applicability; the Valkyrie document covers only the optional CB-radio update.
The complete Honda GL1500 workshop service manual is not included. Several bulletins require separate service-manual instructions for bodywork, carburetor work, or torque specifications. The CB sub-harness bulletin refers to installation instructions supplied with the hardware kit; those instructions are not included here.
PDF Search, Diagram Detail, and File Contents
Search and drawing detail: The two-page audio excerpt has searchable OCR text, with recognition errors. The handbook, bulletin procedures, and exploded drawings do not have usable text search. None of the eleven PDFs has embedded bookmarks. Small audio connector numbers and wire-color labels are readable when enlarged; the appended relay reference requires substantial zoom, and some GPS pinout labels remain soft.
The ZIP download contains 11 printable PDFs totaling 194 pages. Included in that total are two added opening pages, two repeated introductory pages, and six appended contents/reference pages in the handbook file, plus two cover/additional pages in the drawing compilation.
Owner Maintenance, Fuel-System Updates, and Recall Repairs
The following is a selection of covered topics, rather than a complete contents list. Additional handbook material includes storage preparation and side-stand engine-cutoff checks.
-
Routine maintenance: Daily inspection, engine oil and filter service, final-drive lubrication, air-filter and spark-plug replacement, idle adjustment, battery care, and fuse replacement.
-
Wheels and brakes: Step-by-step wheel removal and installation, brake-pad wear inspection, illustrated component placement, installation checks, and fastening specifications.
-
Fuel-system updates: Carburetor vent-hose and vacuum fuel-valve installation, slow-jet and vacuum-piston replacement, ICU/CCU updates, hose-routing checks, and throttle-cable adjustment.
-
Recalls and sealing repairs: Bank-angle-sensor replacement, AICV T-fitting replacement, improved windshield sealing, and saddlebag seal replacement.
-
Audio references: CB update identification and replacement procedures, harness-side connector views for reverse and non-reverse models, and a main wire-harness test-connection table.
The Dutch handbook suits owners handling operating checks and routine upkeep within their mechanical experience; several English campaign bulletins expressly require skilled technicians with the proper tools, equipment, and training.
Operating Controls and Scheduled Maintenance
The handbook explains cruise control, electric reverse, integrated braking, adjustable rear air suspension, and the onboard compressor. Windshield and ventilation controls, luggage, AM/FM radio, cassette operation, intercom, and the U-SE CB transceiver are also covered.
Separate SI and non-SI maintenance schedules distinguish inspection requirements for the fuel, ignition, cooling, secondary-air, final-drive, brake, clutch, suspension, steering-head, reverse, and cruise-control systems. The specification pages include approved lubricants, tire data, drivetrain ratios, battery and charging data, lighting ratings, and fuse values.
1988 Carburetor and Driveability Work
GL1500 #1 distinguishes 49-state and California installations, including their vent pipes, vacuum connections, and emissions-hose routing. Its synchronization connection notes help technicians account for the added vacuum fuel valve during later carburetor work.
GL1500 #2 addresses hesitation just above idle, idle fluctuation, and afterfire. Beyond the replacement components, it identifies Air Jet Controller and solenoid hoses, the deceleration-compensation hose, and water-hose routing that can affect cold-weather driveability.
The routing illustrations help relate these symptoms to specific hoses and connections before selecting the applicable repair. Pinched vent hoses can allow fuel into the cylinders while the engine is off; replacement lines trapped by reinstalled bodywork can recreate the no-crank condition.
Recall and Accessory Applications
The bank-angle-sensor bulletin covers all 1988–1993 GL1500 models. The AICV bulletin provides a specific affected-VIN list for selected 2000 Aspencade and SE units, rather than applying to every motorcycle of that year.
The windshield bulletin covers seal replacement and references service-manual adjustment instructions. The saddlebag bulletin distinguishes the revised upper body seals from the retained lower seals.
The Valkyrie CB bulletin addresses affected optional radios purchased before May 31, 1998. It explains transceiver replacement, noise-suppressor installation, alternator access, and identification of the revised equipment.
Reference Drawings and Wheel-Service Cautions
Visual references include vacuum-hose routing, bank-angle-sensor and AICV locations, CB grounding, audio connector terminal views, and the main wire-harness test table. The third-party exploded views provide numbered assembly drawings without a parts-name index or repair instructions.
During wheel work, the handbook warns that brake operation with a wheel removed can force caliper pistons out; careless disc placement during installation can damage the pads. Fuel-system, wheel, brake, and recall repair should be performed with the motorcycle securely supported and with the training and tools required by the applicable document.
A Preview of Wheel-Clearance and Suspension Data
For GL1500 SE / GL1500 A front-wheel installation, the handbook specifies a minimum 0.7 mm clearance between each brake disc and its caliper bracket. The accompanying inspection text explains the significance of this check after installation.
The rear air-suspension section gives a normal adjustment range of 0–400 kPa and relates the setting to load and road conditions.
