Mitsubishi Chariot, Space Runner, Space Wagon Workshop Manual, passenger car, 1992-1998 edition
Manual Preview

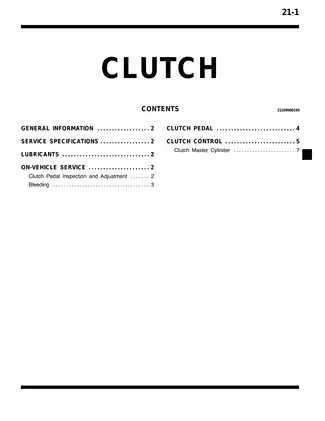

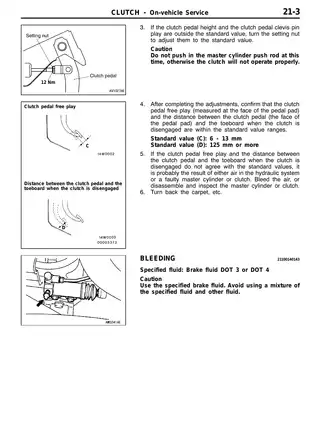

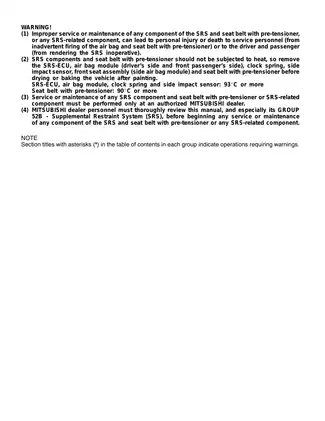

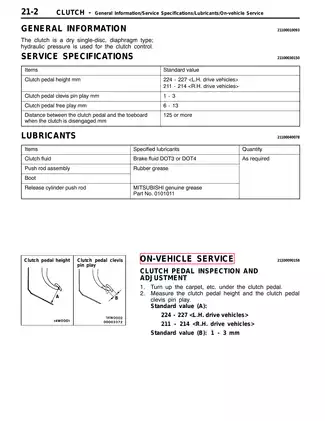

Sample pages from the Mitsubishi Chariot, Space Runner, Space Wagon Workshop Manual, passenger car, 1992-1998 edition manual
Purchase & Download
Models Covered & Key Technical Specifications
- Mitsubishi Chariot (1992-1998)
- Mitsubishi Space Runner (1992-1998)
- Mitsubishi Space Wagon (1992-1998)
- Mitsubishi Nimbus (1992-1998)
- Mitsubishi Expo (1992-1995)
- Mitsubishi Expo LRV (1992-1994)
- Mitsubishi RVR (1991-1997)
- Mitsubishi Space Wagon 4WD (1992-1998)
- Mitsubishi Space Runner Diesel (1993-1998)
- Mitsubishi Chariot Resort Runner (1995-1997)
Professional Workshop Service Manual & Technical Specifications
1992-1998 Mitsubishi Chariot, Space Runner & Wagon Professional Workshop Manual
This comprehensive service resource is the definitive technical guide for the 1992-1998 Mitsubishi MPV family. Whether you are maintaining a daily driver or performing a complete engine overhaul, this manual provides the factory-level precision required for professional results. Covering the versatile Mitsubishi Chariot, the agile Space Runner, and the spacious Space Wagon (including international variants like the Expo and Nimbus), this document is essential for anyone serious about vehicle longevity.
Technical Serial Designations
For precise parts identification, this manual references the following chassis and series codes:
- N11W, N18W (Space Runner / Expo LRV)
- N31W, N33W, N34W, N38W (Space Wagon / Chariot / Expo)
- N41W, N43W, N44W, N48W (4WD Models)
Performance & Engine Systems
Detailed procedures are provided for both gasoline and diesel powerplants, including the 1.8L, 2.0L, and 2.4L variants. You will find exhaustive data on:
- Engine Overhaul: Complete breakdown of block and head assembly.
- Fuel Systems: Precise settings for Mitsubishi's Multi-Port Injection (MPI) and diesel injection pumps.
- Cooling & Exhaust: System diagrams for optimal temperature management and emissions compliance.
Drivetrain & Chassis
Engineered for both FWD and 4WD layouts, the manual covers:
- Transmission: Full service data for manual gearboxes and electronically controlled automatic transmissions.
- Suspension: Maintenance for front MacPherson struts and rear trailing arm setups.
- Braking: Detailed specs for hydraulic systems, including ABS troubleshooting.
Electrical & Troubleshooting
The electrical section features high-resolution wiring diagrams that are vital for modernizing or repairing older electronics.
- Wiring Diagrams: Clear routing for lighting, ignition, and cabin electronics.
- Climate Control: Complete AC and heating system schematics.
- Troubleshooting: Logical diagnostic charts to isolate engine, transmission, and electrical faults quickly.
Technical Specifications for Professionals
- Torque Sequences: Essential for engine and suspension work to prevent component failure.
- Fluid Capacities: Accurate measurements for oil, coolant, and transmission fluids.
- Maintenance Schedules: Factory-recommended intervals to keep these classic MPVs on the road.
This manual is formatted for easy navigation, making it a practical tool for both high-intensity garage environments and home workshops. Get immediate access to the technical knowledge used by factory-trained technicians.
