1990 Yamaha FZR400 Service Manual OEM (P/N LIT-11616-07-23)

• Correct model split: Covers the 1990 FZR400A (3BF5, non-California) and FZR400SAC (3FH3, California), using the enclosed FZR400U/FZR400SUC 3BF/3FH base manual for the full repair procedures.

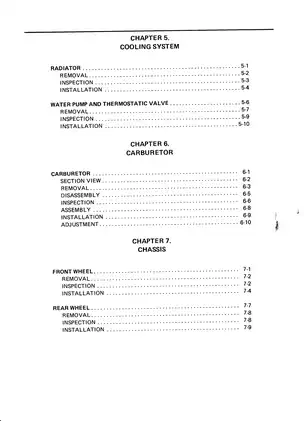

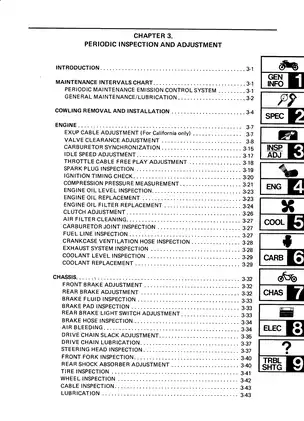

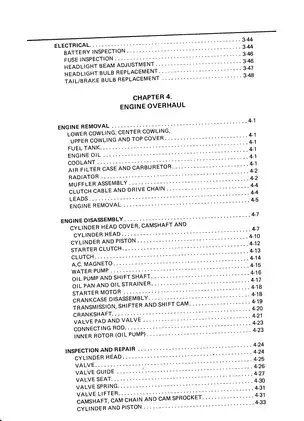

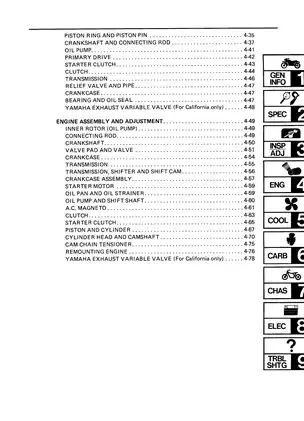

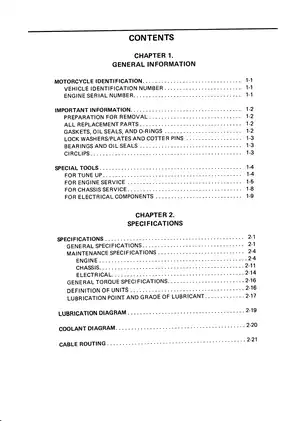

• 393 PDF pages across six files: The set includes a 33-page 1990 supplement before the underlying base-manual chapters, plus a separate contents PDF for section lookup.
• Engine repair work includes removal and remounting, cylinder-head and camshaft service, valve/guide/seat inspection, piston and cylinder work, crankshaft and connecting-rod bearing selection, clutch and starter-clutch service, transmission and shift-cam disassembly, and oil-pump repair.
• Fuel and cooling coverage follows the four-carburetor bank through removal, disassembly, inspection, reassembly, fuel-level setup, and synchronization, with radiator, water-pump, thermostatic-valve, and cooling-system pressure-test procedures.
• Chassis sections detail wheel removal and static balancing, brake-pad replacement, caliper and master-cylinder overhaul, brake bleeding, front-fork service, steering-head adjustment, rear shock and swingarm work, plus drive-chain and sprocket inspection.
• Electrical diagnosis spans digital ignition, electric starting, charging, lighting, signals, cooling fan, fuel pump, and the California-only Yamaha Exhaust Variable Valve System (EXUP), backed by circuit diagrams and fault-isolation checks.
• Factory reference material provides special-tool part numbers, torque tables, fluid capacities, inspection and wear limits, bearing color-code data, electrical test specifications, lubrication and coolant diagrams, and cable-routing views.

How the 1990 Supplement Fits the Base Manual

This is a supplement-and-base-manual set rather than a standalone 1990 rewrite. Yamaha’s 1990 pages supply the model identification, updated general and chassis specifications, drive-chain slack adjustment, rear-wheel service, and front- and rear-brake material for the A/SAC models. The remaining repair chapters come from the U/SUC base manual, so the model-code split matters when selecting specifications and California-specific procedures.

For serial matching, the FZR400A starts at VIN JYA3BFE0LA012101 and engine No. 3BF-012101. The FZR400SAC starts at VIN JYA3FHC0LA003101 and engine No. 3FH-003101. The underlying U/SUC manual identifies its starting engine numbers as 3BF-000101 and 3FH-000101. This distinction is especially relevant to California emissions equipment and EXUP diagnosis.

Internal Engine, Fuel, and Cooling Repair

The 399cc liquid-cooled DOHC four-cylinder chapter is written for internal repair, not only routine maintenance. It covers engine removal and remounting; cylinder-head, camshaft, valve-guide, valve-seat, and cam-chain work; piston and cylinder inspection; clutch and starter-clutch service; A.C. magneto removal; transmission and shift-cam disassembly; crankcase work; and oil- and water-pump service. Crankshaft and connecting-rod oil-clearance checks use Plastigage and color-coded bearing selection, giving rebuilders the factory method for matching bearing shells.

The engine chapter also flags a genuine timing-related repair trap: after the camshaft caps are released, rotating the camshaft can damage the valves. It describes cylinder-head handling intended to keep valve lifters and adjusting pads from dropping into the crankcase.

Carburetor coverage includes a labeled section view, 3BF-00/3FH-00 identification, bank removal, internal disassembly, passage and diaphragm inspection, reassembly, fuel-level setup, installation, and synchronization. The pilot screws are identified as factory-set, an important note before trying to correct a running problem through adjustment. Cooling-system work covers the radiator, pressure testing, water pump, thermostatic valve, and coolant circulation layout.

Chassis, Brake, and Suspension Scope

The 1990 supplement gives the A/SAC models their own rear-wheel and brake data. The main chassis chapter goes further into front- and rear-wheel repair, static balancing, brake-pad replacement, caliper and master-cylinder overhaul, hose installation, fluid filling, and system bleeding. Fork removal and internal service are covered alongside steering-head and handlebar work, rear shock and swingarm inspection, and drive-chain and sprocket service.

The brake chapter warns that mixing fluid types can cause a harmful chemical reaction, deteriorate rubber seals, and lead to leakage. During fork disassembly, excessive separating force can damage the oil seal, bushings, and oil-lock piece. Both warnings address component damage that can occur during otherwise routine refill or disassembly work.

Electrical Diagnostics, Diagrams, and Special Tools

Electrical coverage begins with the FZR400U/SUC overall circuit diagram and component-location views, then breaks the motorcycle into system-specific test and troubleshooting sections. Particularly useful references include the lubrication diagram, coolant diagram, carburetor section view, digital ignition control circuit and operating sequence, fuel-pump circuit operation, and California-only EXUP control circuit.

The special-tool pages tie equipment directly to the job and give Yamaha part numbers. Examples include the YU-08030 vacuum gauge for carburetor synchronization, YM-91042 universal clutch holder, YU-24460-01 radiator-cap tester with YU-33984 adapter, YM-01300-1 fork-cylinder holder, and YM-34487 dynamic coil tester. Related specifications cover component-specific torques, capacities, wear limits, clearances, adjustment data, and electrical test values.

Brake hydraulic repair, fuel-system work, cooling-system pressure testing, suspension disassembly, and engine-timing service should be performed with the motorcycle securely supported and the affected system safely isolated.
