Hitachi 2001 EX8, EX12, EX15, EX22 & EX30 Excavator Technical & Workshop Manual Set (P/N KM580E-01 T580-01)

730 Pages • 1 Printable PDF (English) • Download

5.0starstarstarstarstar(1)
$24.45 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Hitachi Models Covered & Key Technical Specifications

Models: EX8, EX12, EX15, EX22, EX30

Sub-models / Variants: Canopy type, Cabin type, Rubber shoe, Grouser shoe, Triangular track

Serial Numbers (test specifications): EX8 through 302 / 303 and up (main relief valve pressure), EX22 through 270 / 271 and up (blade lever force), EX30 through 653 / 654 and up (blade lever force)

Model Year: 2001


  • Engine: Kubota Z482-B (EX8), Isuzu 3KC1 (EX12/EX15), Isuzu 3KR1 (EX22), Isuzu 3KR2 (EX30)

  • Engine power output: 5.9 kW to 22.1 kW depending on model

  • Operating weight: 740 kg to 2830 kg

  • Bucket capacity: 0.024 m³ to 0.092 m³ (PCSA and SAE)

  • Travel speed: 2.0 km/h to 4.2 km/h

  • Gradeability: 30° (tan θ = 0.58)

  • Ground pressure: 0.2 bar to 0.29 bar

Hitachi Manual Features & Selected Content Preview

Publication Pages
Hitachi Technical Manual for 2001 EX8, EX12, EX15, EX22 & EX30 excavators (P/N KM580E-01 T580-01) 288
Hitachi Workshop Manual for 2001 EX8, EX12, EX15, EX22 & EX30 excavators (P/N KM580E-01 W580-01) 442

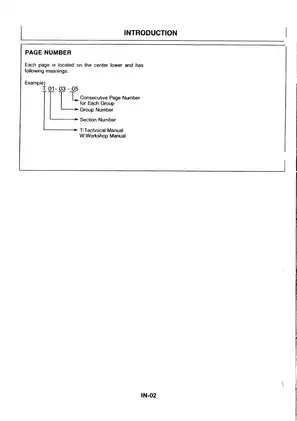

Use the Technical Manual to identify machine configurations, trace circuits, and evaluate test results. The Workshop Manual gives the removal, inspection, and reassembly procedures for the components identified during diagnosis.

Hydraulic cylinder service is limited to removal, installation, and rod wear checks.

Bookmarks, Text Search, and Diagram Detail

Finding test charts and diagrams is possible through 339 bookmarks covering both manuals, including the engine sections. Page text is not searchable. Small hydraulic and electrical labels benefit from zooming. Some charging-circuit lines and text at the edge of a fuse diagnostic chart remain faint when enlarged.

The download is one printable English PDF with 730 pages. The total includes two front covers, two back covers, and 58 blank or header/footer-only pages.


Hydraulic Testing, Component Overhaul, and Diesel Repair

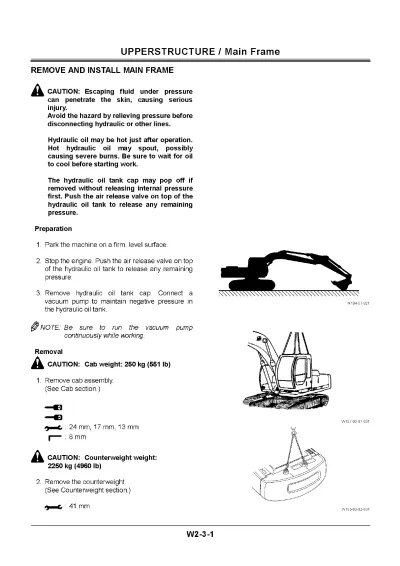

The list highlights selected service topics. The Workshop Manual also covers cab and counterweight removal and includes dimensioned drawings for special tools.

  • Hydraulic overhaul includes step-by-step procedures for pump, control valve, and pilot valve disassembly and reassembly. Hydraulic tank drawings and piping schematics show how the components fit together.
  • Swing and travel repairs cover swing motor and travel device overhaul, swing bearing replacement, and center joint and track adjuster removal and installation.
  • Diesel engine repair covers Kubota and Isuzu disassembly, internal inspection, and reassembly, with service procedures for fuel, cooling, and lubrication components.
  • Performance tests cover engine speed and compression, cylinder cycle time and drift, travel mistracking, and main and overload relief valve pressure.
  • Electrical diagnosis includes wiring and battery-circuit checks, starting and charging system tests, and monitor-panel fault charts for gauges, warnings, and the buzzer.
  • Service reference tables give working ranges, lifting capacities, fluid capacities, lubricant recommendations, tightening torques, and component interchangeability by model.

The set suits mechanics familiar with hydraulic pressure testing and internal engine measurements who have access to the specified gauges, lifting equipment, and special tools.

Controls and Hydraulic Fault Finding

The EX8 uses mechanical controls without a pilot circuit. The larger models use pilot controls for the front attachment and swing. The piping diagrams identify the EX22 and EX30 travel-speed solenoid and show the Boom II valve section specific to the EX22.

The fault charts help distinguish pilot-circuit, control-valve, and cylinder causes of weak or drifting functions before a component is removed. EX8 main relief pressure and EX22 and EX30 blade lever force specifications are indexed by serial number.

Pump, Swing, and Undercarriage Work

The EX30 uses a variable-displacement main pump and a gear pump for pilot oil. The other models use tandem gear pumps. The control valve procedures explain how to protect the spools from damage during bench work.

Swing reduction gear and travel device cross-sections identify internal components. The travel device procedure specifies the ST3146 bearing-nut tool for setting preload. The workshop volume also covers track link service, track tension adjustment, idler and roller wear limits, and front attachment service.

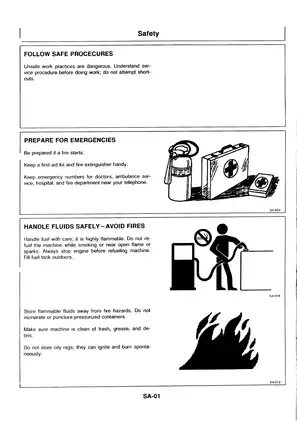

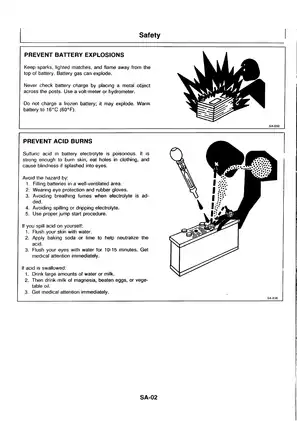

Follow the manual’s precautions for trapped hydraulic pressure, raised attachments, and suspended components.

Engine Internals and Fuel Delivery

The EX8 section covers the Kubota Z482-B. Isuzu coverage pairs the 3KC1 with the EX12 and EX15, the 3KR1 with the EX22, and the direct-injection 3KR2 with the EX30.

Engine inspection tables give repair limits for cylinder heads, valve trains, pistons, connecting rods, and crankshafts. The Kubota section includes engine performance curves and warns that scratches on chrome-plated piston rings can cause problems inside the liner.

Fuel-system coverage includes injection timing, nozzle testing, and governor service. Isuzu governor work calls for an engine performance test after reassembly. The Isuzu tool list identifies the 894409-7060 valve setter. Oil and coolant flow diagrams accompany oil pump, water pump, and thermostat service.

Starting, Charging, and Monitor Circuits

The EX8 engine section covers starter overhaul, regulator and glow plug checks, and wire-color identification in the charging diagrams. Monitor-panel fault charts cover fuel and coolant readings, oil pressure, air-filter restriction, and the hour meter.

Machine Configurations and Lifting Charts

Dimension and track tables distinguish canopy and cab configurations, rubber and grouser shoes, and triangular shoes. Cab specifications cover the EX12, EX15, EX22, and EX30. SAE J1097 lifting charts and component interchangeability tables help identify which lifting data and hardware apply to a given model.

Sample Pump Wear and Valve Clearance Data

The EX30 main pump standards give maximum clearances of 0.050 mm between the piston and rotor and 0.2 mm between the piston and shoe.

The Kubota Z482-B servicing table specifies a cold valve clearance of 0.145 to 0.185 mm.
