Cummins ISC ISCe QSC8.3 ISL QSL9 Diesel Engine Troubleshooting and Repair Manual (P/N 4021418)

Published by Cummins Inc. as Bulletin 4021418 and printed January 28, 2005, this 850-page PDF covers the ISC, ISCe, QSC8.3, ISL, and QSL9 engine families. It is the factory troubleshooting and in-chassis repair volume for technicians, independent diesel shops, and experienced owners who need factory diagnostic charts, procedures, component views, and specifications.

• Identifies the covered engines through dataplate, engine serial number, CPL, ECM, and fuel-pump information, with component-location views for both CM850 and non-CM850 configurations.
• Pairs conventional symptom charts with dedicated CM554/CAPS, CM850, and fuel-economy troubleshooting trees, including INSITE-supported fault review, cylinder-performance checks, pressure diagnosis, and turbocharger control tests.
• Breaks down CAPS and Cummins Common Rail fuel systems, including lift-pump arrangements, high-pressure pump modules, timing work, injection and pumping control valve checks, rail and pressure-relief components, injectors, fuel connectors, and high-pressure lines.
• Covers selected engine-side repair work such as engine removal and installation, cylinder-block and cylinder-head service, liners, pistons, bearings, camshaft components, crankshaft seals, tappets, rocker assemblies, overhead adjustment, and engine-brake-equipped configurations.
• Extends diagnosis beyond the base engine with cooling-system testing and flushing, oil-cooler and lubrication-system service, charge-air cooler testing, wastegated and variable-geometry turbochargers, exhaust-treatment components, and air-compressor cylinder-head and unloader work.
• Supplies factory flow diagrams, exploded views, reuse inspections, special-tool references, component-specific torque tables, pressure and restriction test data, runout and wear limits, belt specifications, and electrical test values.

Scope to know before purchase: This is an in-chassis troubleshooting and repair manual. Complete engine rebuild procedures are handled in the separate engine shop manual. Section L lists separate Cummins electronic-control troubleshooting books and stand-alone wiring diagrams, so this PDF should not be mistaken for that fault-code and wiring publication set. The Electrical Equipment group focuses on starting and charging hardware, while the Vehicle Braking group covers the engine-brake assembly and related controls—not a complete chassis brake system. Vehicle/equipment problems require the OEM service information.

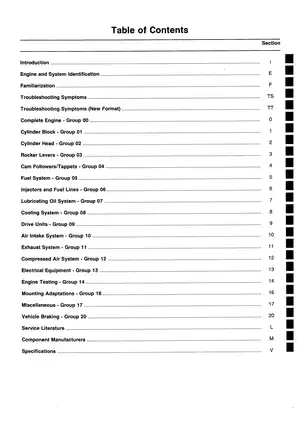

Engine Systems Documentation

The opening sections establish the exact engine and control-system layout. Dataplate examples show where to find the ESN, CPL, model, rating, ECM code, and CAPS pump identification. The illustrated engine views distinguish CM850-equipped layouts—with the fuel rail, high-pressure pump, ECM cooling plate, and variable-geometry turbocharger hardware—from earlier arrangements built around the CAPS injection pump and external high-pressure lines.

Fuel-system coverage links component identification to shop diagnosis. The manual traces supply, pumping, accumulator or rail, injection, and return flow for both architectures, with restriction testing, air-in-fuel checks, leakage isolation, pump timing, relief-valve testing, injector and connector service, and electronic actuator checks. Separate procedures address block-mounted and ECM-cooling-plate-mounted lift pumps, as well as ISC/QSC8.3 and ISL/QSL9 pump arrangements where the hardware differs.

Mechanical sections include selected disassembly, assembly, cleaning, inspection, reuse, removal, and installation procedures. Covered jobs include main and connecting-rod bearings, camshaft gears and bushings, cylinder liners, single-piece and articulated piston assemblies, piston cooling nozzles, crossheads and valves, sliding and roller tappets, rocker systems with or without engine brakes, flywheel and housing runout checks, and rear engine power take-off (REPTO) housing work. Engine Testing adds blowby measurement, run-in and dynamometer procedures, automated cylinder-performance testing, and cylinder cutout checks.

Useful drawing sets include the CM850 engine-component views, the non-CM850 fuel-pump-side view, CAPS and Common Rail fuel-flow diagrams, the CM850 versus non-CM850 lubrication-flow layouts, and the cooling-system flow diagram. An exploded view supports the REPTO housing section.

The cautions are specific to these engines. They flag orientation-sensitive parts such as the front crankshaft gear and matched high-pressure pump plungers, where incorrect assembly can damage the engine. The common-rail leak-test section also warns that using its isolation tool at the wrong point can cause severe engine damage, while wastegate actuator procedures identify factory-calibrated units that are not field-adjustable.

Specification and Reference Data

Section V consolidates specifications by system. It includes component torque data, bearing and camshaft dimensions, liner and piston inspection limits, flywheel and housing runout, cooling and lubrication test specifications, fuel-system pressure and restriction data, air-system checks, belt data, electrical measurements, pipe-plug tables, and metric/U.S. conversion references. Marine and non-marine cooling and lubrication specifications are identified separately where applicable.

Special-tool callouts are tied to the relevant repair procedures. Examples include Engine Lifting Fixture 3162871, Engine Barring Gear 3824591, Fuel Pump Gear Puller 3824469, Injector Puller 3825156, Engine Coolant Analyzer 3822994, and Digital Multimeter 3164488.

High-pressure fuel systems, hot coolant and lubricating oil, suspended engines, rotating machinery, and dynamometer testing require the correct protective equipment, pressure-isolation practices, rated lifting hardware, and trained service practices.
