1996–2012 Yamaha XVZ13CTT(C) / XVZ 1300 Royal Star Venture Supplementary Service Manual (P/N LIT-11616-12-60)

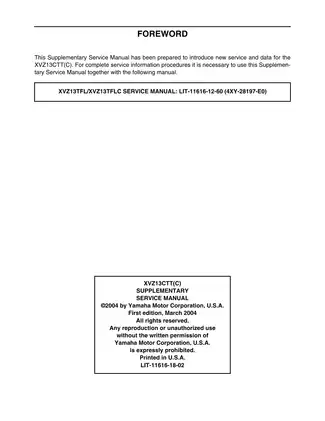

• 574-page PDF combines the Yamaha XVZ13TFL/XVZ13TFLC Service Manual (P/N LIT-11616-12-60, 4XY-28197-E0) with the XVZ13CTT(C) Supplementary Service Manual (P/N LIT-11616-18-02, 4XY-28197-E1).
• Covers model codes 4XY1, 4XY2, 4XY3, 1D61, 1D62, 1D63, and 2C41, with U.S., California, Canadian, and Oceania differences for carburetion, lighting, emissions equipment, electrical components, and cable or hose routing.
• Documents engine removal, camshaft and timing-chain service, cylinder-head and valve repair, clutch and hydraulic-release work, oil-pump service, crankcase separation, crankshaft and piston inspection, transmission service, and middle-gear alignment and backlash adjustment.
• Includes wheel and brake repair, master-cylinder and caliper overhaul, front-fork service, steering-head work, rear-shock and swingarm service, shaft-drive diagnosis, final-drive disassembly, ring-gear backlash measurement, and pinion/ring-gear alignment.
• Provides carburetor synchronization and overhaul, throttle-position-sensor and fuel-level adjustment, fuel-pump and air-induction testing, radiator/thermostat/water-pump repair, periodic maintenance, hydraulic bleeding, pressure checks, and component-specific adjustment procedures.
• Contains system circuit diagrams, troubleshooting flow charts, cruise-control self-diagnosis, audio/CB circuit coverage, lubrication and cooling diagrams, detailed cable-routing sheets, and complete model-specific wiring diagrams.

Manual Content Summary

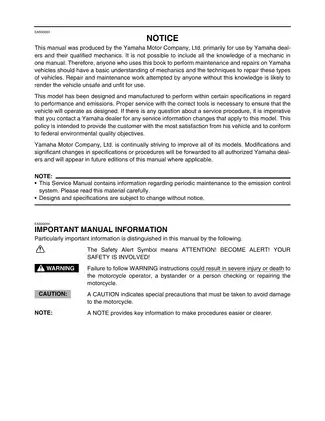

This Yamaha factory publication set combines the 87-page March 2004 XVZ13CTT(C) supplement with the referenced November 1998 XVZ13TFL/XVZ13TFLC base manual. The base book supplies the full removal, disassembly, inspection, assembly, installation, and troubleshooting chapters; the supplement adds later model-specific specifications, maintenance information, body-access procedures, routing drawings, electrical checks, and cruise-control diagnostics.

Factory coverage is identified by model code. The base manual lists 4XY1 for the U.S., 4XY2 for California, and 4XY3 for Canada. The supplement adds 1D61 for the U.S., 1D62 for California, 1D63 for Canada, and 2C41 for Oceania. Those distinctions matter when selecting carburetor identification and jetting data, lighting specifications, fuse layouts, evaporative-emissions components, and routing instructions. California canister and purge-hose arrangements are shown separately, while Oceania receives its own lighting and carburetor details.

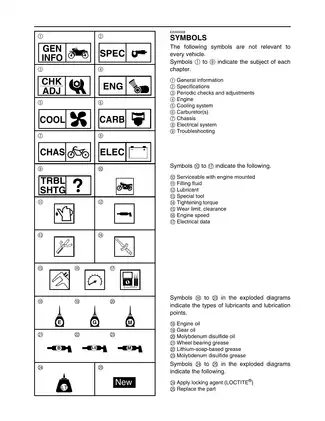

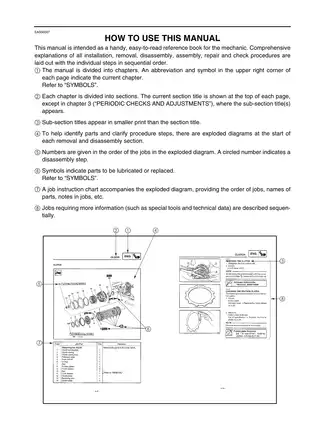

The engine section reaches well beyond routine service. It covers removal around the radiator, air-induction system, exhaust, controls, and related leads; camshaft removal and installation; timing-chain, sprocket, guide, and tensioner inspection; cylinder heads; valves, guides, seats, springs, and lifters; clutch master and release cylinders; clutch-pack inspection; starter clutch and generator; oil pan and oil pump; crankcase work; crankshaft and balancer inspection; connecting rods and pistons; transmission inspection; and middle-drive shaft assembly, alignment, and backlash adjustment. Exploded views and job charts support the repair procedures with tightening sequences, replacement-part symbols, lubrication points, wear limits, and assembly notes.

Chassis coverage includes front and rear wheel removal, brake-disc inspection, static wheel balancing, brake-pad replacement, master-cylinder and caliper disassembly, front-fork rebuilding, handlebar and steering-head service, rear-shock removal, swingarm inspection, shaft-drive fault isolation, and final-drive overhaul. The final-drive chapter is unusually detailed, with ring-gear backlash measurement, ring-gear-to-stopper-bolt clearance, shim selection, bearing replacement, and pinion/ring-gear alignment rather than only fluid-change information.

Periodic maintenance and system chapters cover valve-clearance adjustment, carburetor synchronization, ignition timing, compression and oil-pressure measurement, clutch and brake bleeding, suspension checks, cooling-system service, and electrical maintenance. Separate cooling and carburetor chapters document radiator, thermostat, water-pump, fuel-level, throttle-position-sensor, fuel-pump, fuel-cock, and air-induction-system procedures.

Technical Data Preview

Electrical repair depth includes switch-continuity inspection; ignition spark, coil, pickup-coil, and wiring tests; starting-circuit cut-off diagnosis; starter-motor inspection; charging-system troubleshooting; lighting and signal-system checks; cooling-fan and thermo-switch diagnosis; fuel-pump and carburetor-heater testing; audio and CB circuit operation; and cruise-control circuit checks. The 2004 supplement adds updated indicator-light and fuel-meter fault isolation, cruise cancel-switch testing, vacuum-pump and throttle-drive diagnosis, self-diagnosis mode, and fault-code interpretation.

The specification material is organized by assembly and includes torque tables, fluid capacities, wear limits, clearances, runout limits, suspension data, carburetor settings, brake and clutch hydraulic specifications, electrical resistance and output tests, fuse charts, and market-specific component specifications. Named factory tools include the YU-08030-A/90890-03094 vacuum gauge, YM-04019 valve-spring compressor, YM-91042/90890-04085 universal clutch holder, YM-33222 middle-drive gear holder, YM-04050/90890-04050 final-drive bearing-retainer wrench, YU-33975 ring-nut wrench, and YM-34487/90890-06754 dynamic spark tester.

Useful visual references include the engine lubrication-flow diagrams, cooling-system layout, middle-gear and final-drive backlash illustrations, cruise-control circuit and self-diagnosis charts, audio/CB circuitry, extensive cable-routing views, and separate full wiring diagrams for XVZ13TFL/XVZ13TFLC and XVZ13CTT(C).

Several manual-specific cautions help prevent expensive repair errors. The final-drive bearing retainer uses left-hand threads; forcing it in the normal loosening direction can damage the retainer or housing threads. During crankcase assembly, sealant must be kept out of oil galleries and crankshaft-journal bearings, and transmission shifting is checked before the case bolts are fully tightened. Steering-head preload must not be overtightened, while the supplement’s routing drawings identify locations where throttle cables, battery leads, speed-sensor wiring, and harnesses can bind, chafe, or be pinched.

Because the procedures include brake hydraulics, fuel handling, hot-coolant testing, engine removal, and steering assembly, the motorcycle must be securely supported and the affected fuel and electrical systems isolated before repair work begins.
