JCB 1CX & 208S Backhoe Loader Service Manual | 1996–2005 (P/N 9803/8550)

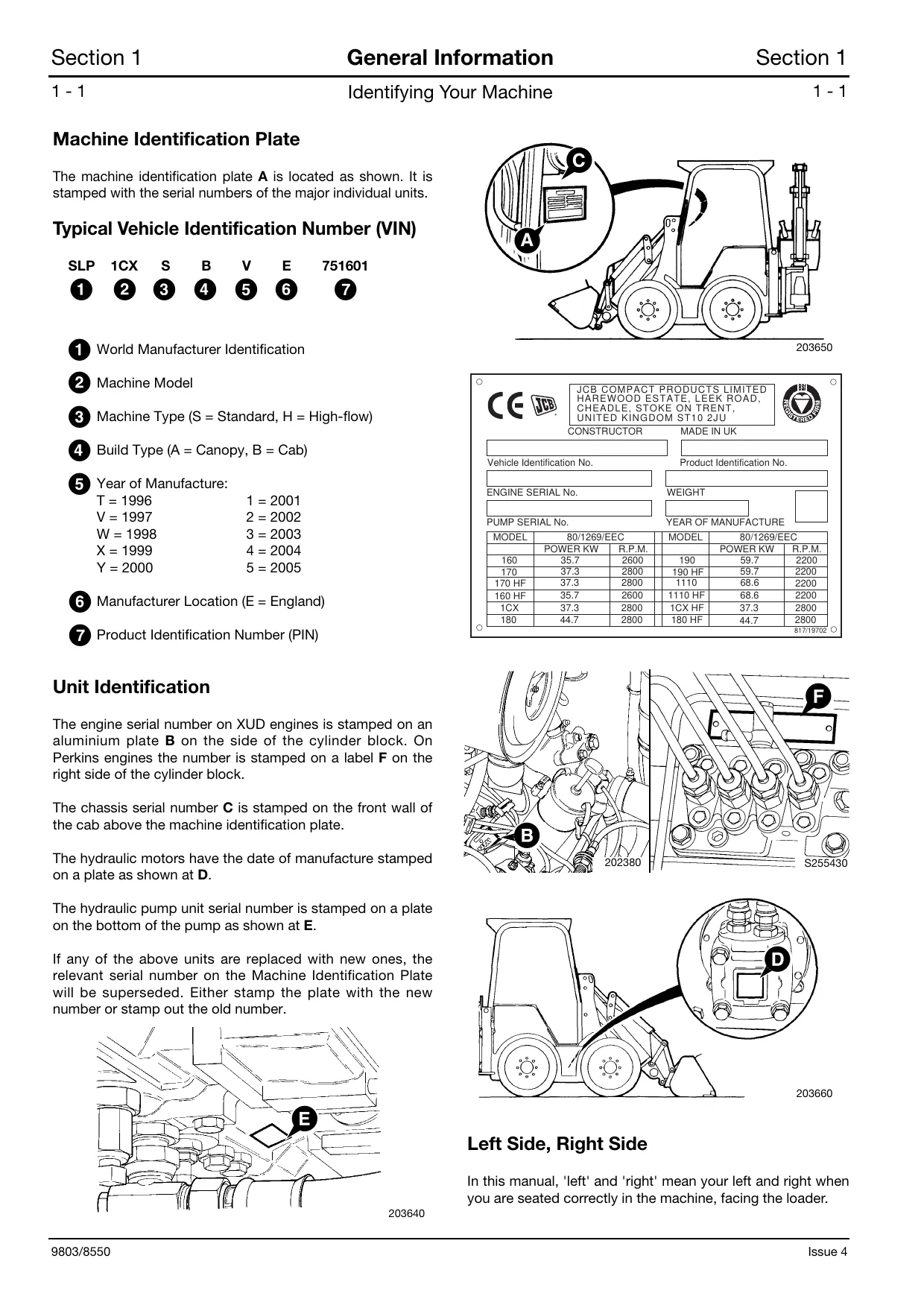

JCB’s 1CX and 208S Backhoe Loader Service Manual (P/N 9803/8550, Issue 12) covers Standard and High-flow machines. The identification section distinguishes canopy and cab builds and decodes VIN year codes for 1996–2005.

PDF Search, Bookmarks, and Diagram Detail

Finding procedures and reading diagrams: Workshop text is searchable, while some illustration callouts are embedded in the artwork. PDF bookmarks jump to the starts of file parts. Zoom in to read the smallest wire numbers and component labels in dense schematics.

The ZIP contains one printable, 464-page PDF. The same 232-page manual appears twice, including its original cover in each copy. The archive also contains a separate PDF reader installer.

Hydrostatic Drive, Loader and Backhoe Repairs, and Wiring

This selection of workshop topics gives a preview of the manual. The service sections also cover hand and foot throttle adjustments and replacement of segments on optional non-inflatable tires.

• Hydrostatic drive: Fault-finding charts, pump and drive motor removal, pump neutral adjustment, motor leakage tests, and startup after pump or motor replacement.
• Loader and excavator hydraulics: Standard and High-flow auxiliary gear pump repair, loader and excavator valve service, relief-valve tests, servo joystick work, and ram resealing.
• Chassis and final drive: Floor plate access, loader arm, dipper, boom, kingpost and slew cylinder removal, plus roadwheel and chain-case hub service.
• Electrical diagnostics: Multimeter methods, battery and charging tests, starter-circuit diagnosis, alternator and starter removal, and wiring diagrams organized by machine number.
• Scheduled service and attachments: Fluid and lubricant tables, filter and cooling-system service, drive-chain maintenance, and upkeep for quick couplings, shovels, forks, and attachment frames.

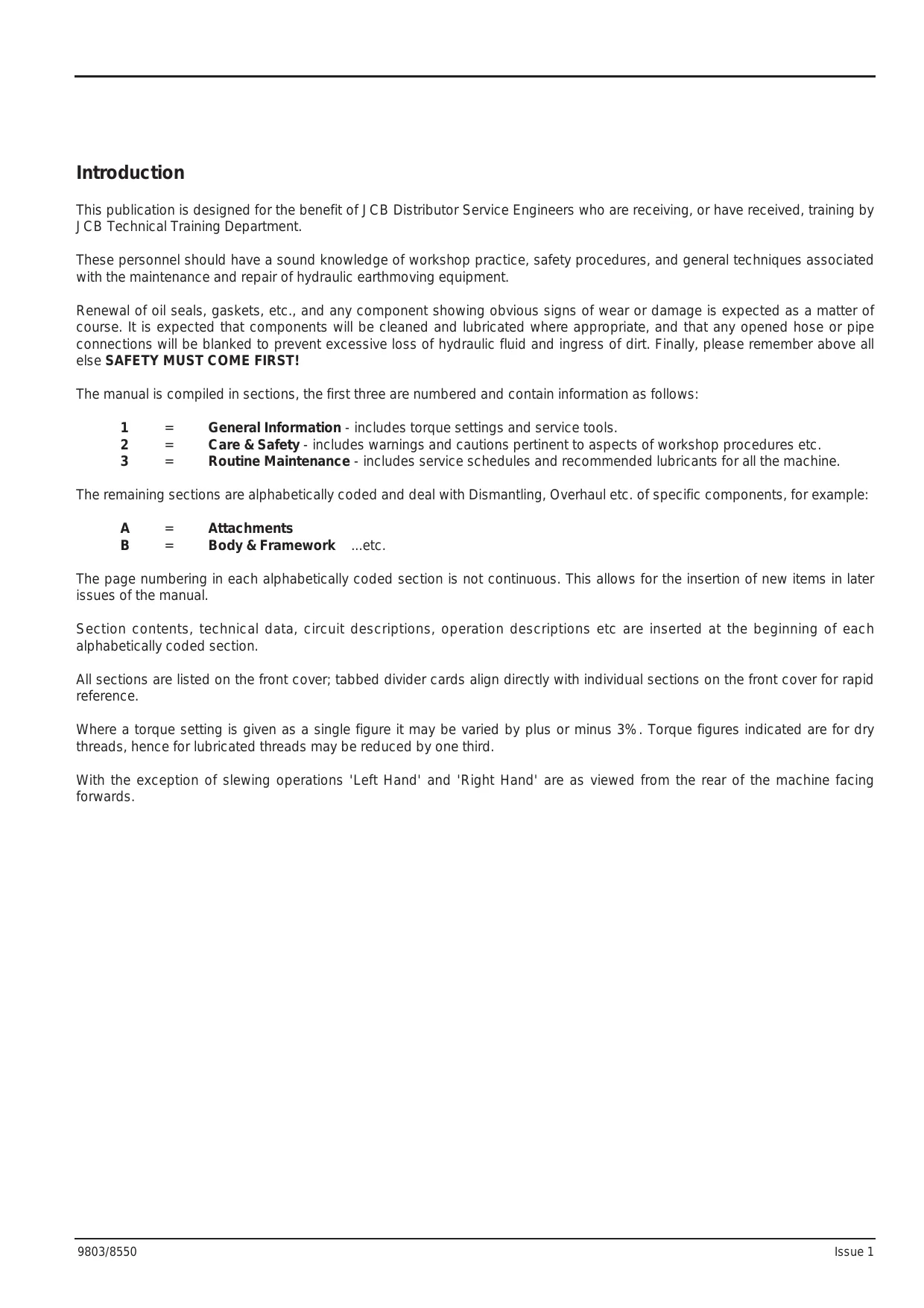

JCB wrote this manual for distributor service engineers undergoing or having completed JCB training, with workshop experience in hydraulic earthmoving equipment.

Hydrostatic Pump and Drive Motor Service

The manual pairs hydrostatic fault charts with tests that distinguish a weak pump from a leaking drive motor when travel is slow or faulty on one side. It covers the pump-to-engine coupling, charge-pressure and neutral adjustment, and procedures for the drive motors and their integral brakes.

The 751011/751012 machine-number break separates early and later pump procedures and also governs towing and winching preparation. The early pump section covers disassembly and assembly. Later pump coverage focuses on the shaft seal, charge check and high-pressure relief valves, charge/anti-stall valve, and related adjustments. A complete rebuild of the later pump requires setup on a dynamic test jig.

Drive motor repair procedures change at 807172/807173. The assembly notes cover replacement and wire-locking of specified motor bolts and renewal of brake plates as a complete pack.

Loader Valves, Joysticks, and Rams

The loader and excavator fault charts lead into valve dismantling, joystick-line checks, and main and auxiliary relief-valve testing. The procedures distinguish the pressure-reducing solenoid valve through 752462 from the brake valve fitted from 752463. Separate servo joystick procedures apply through 807146 and from 807147.

The hose and contamination sections cover hydraulic cleanliness and trapped-pressure precautions. Repair notes address keeping joystick valve parts together as matched sets and positioning ram wear rings over the piston retention dowel.

Kingpost, Wheel Hubs, and Engine Work

The body and framework procedures cover floor plate access and the loader arm, dipper, boom, kingpost, and slew cylinders. Kingpost procedures change at 807225/807226. The transmission section covers roadwheels and chain-case hub removal and dismantling, with a hub change at 751599/751600.

Engine coverage consists of XUD, 100 Series, and 400 Series specifications plus engine removal and refitting. The 100 Series and 400 Series data are split at 807552/807553. JCB references separate engine service manuals for further engine work.

Maintenance Schedules and Attachments

Service schedules and fluid tables cover greasing, drive-chain lubrication and tension, hydraulic filter and suction strainer service, and engine air, oil, fuel, and cooling-system maintenance. The routine checks also cover alternator belt adjustment, battery electrolyte, bulbs, seat belts, and the loader-arm safety strut.

The attachment section covers flat-face quick couplings, general-purpose and 6-in-1 shovels, pallet forks, the manure/silage fork with top grab, and the attachment frame.

Wiring Diagrams, Hydraulic Schematics, and Shop Tools

The 24-page electrical section includes eight pages of wiring diagrams and component keys for four machine-number ranges. It also covers fuse and relay layouts, transmission charge-pressure and oil-temperature switches, reverse-alarm and brake-light switches, and battery, charging, and starting tests. The alternator section includes dismantling and assembly.

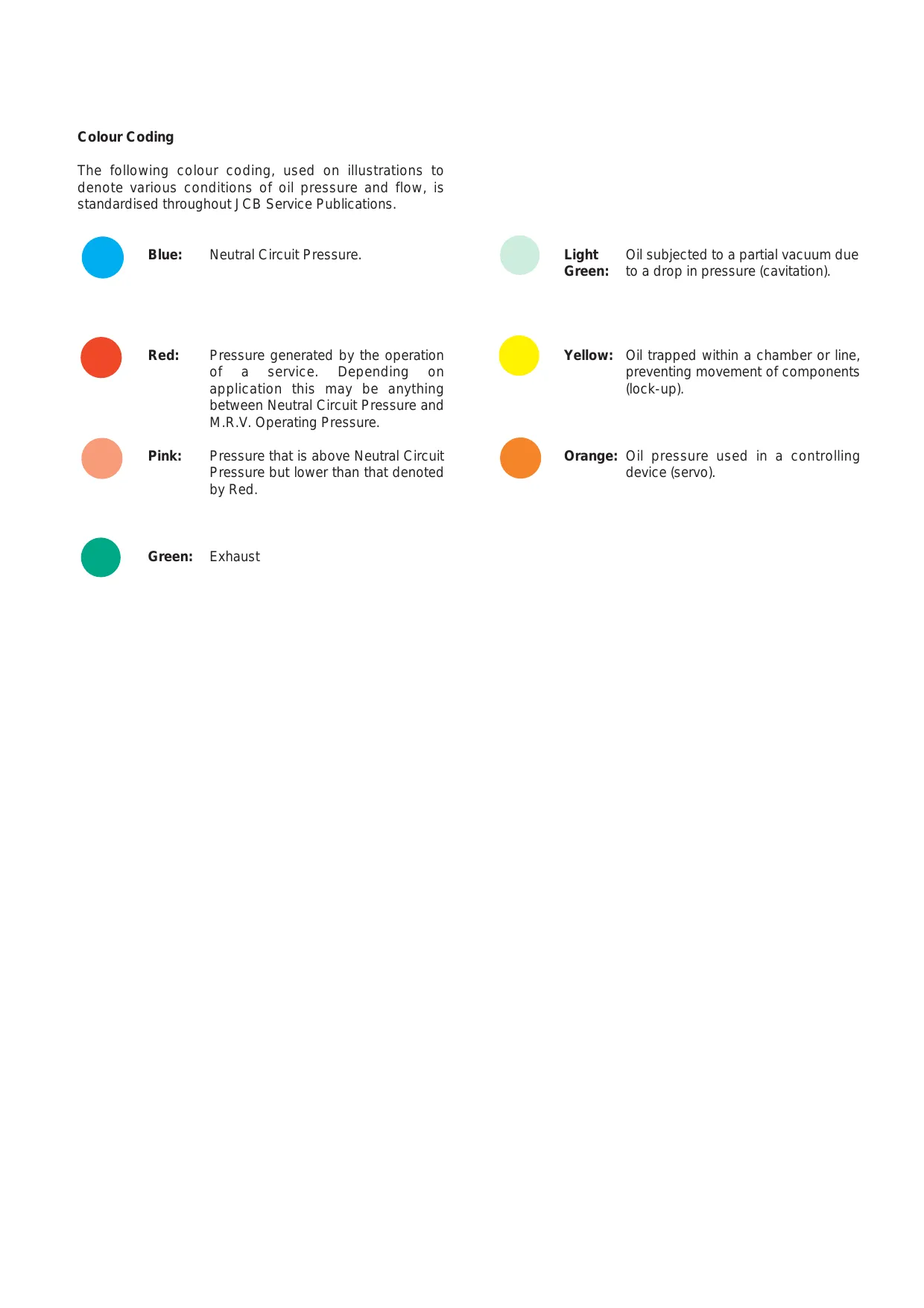

The 118-page hydraulics section includes 21 pages of schematics and component keys for Standard and High-flow machines with single- and dual-lever drive controls and the optional hand-tool circuit. Circuit explanations show the loader valve in neutral, lift ram operation, and the excavator slew relief and anti-cavitation circuit. JCB’s color key distinguishes neutral, service, servo, exhaust, partial-vacuum, and trapped-oil conditions.

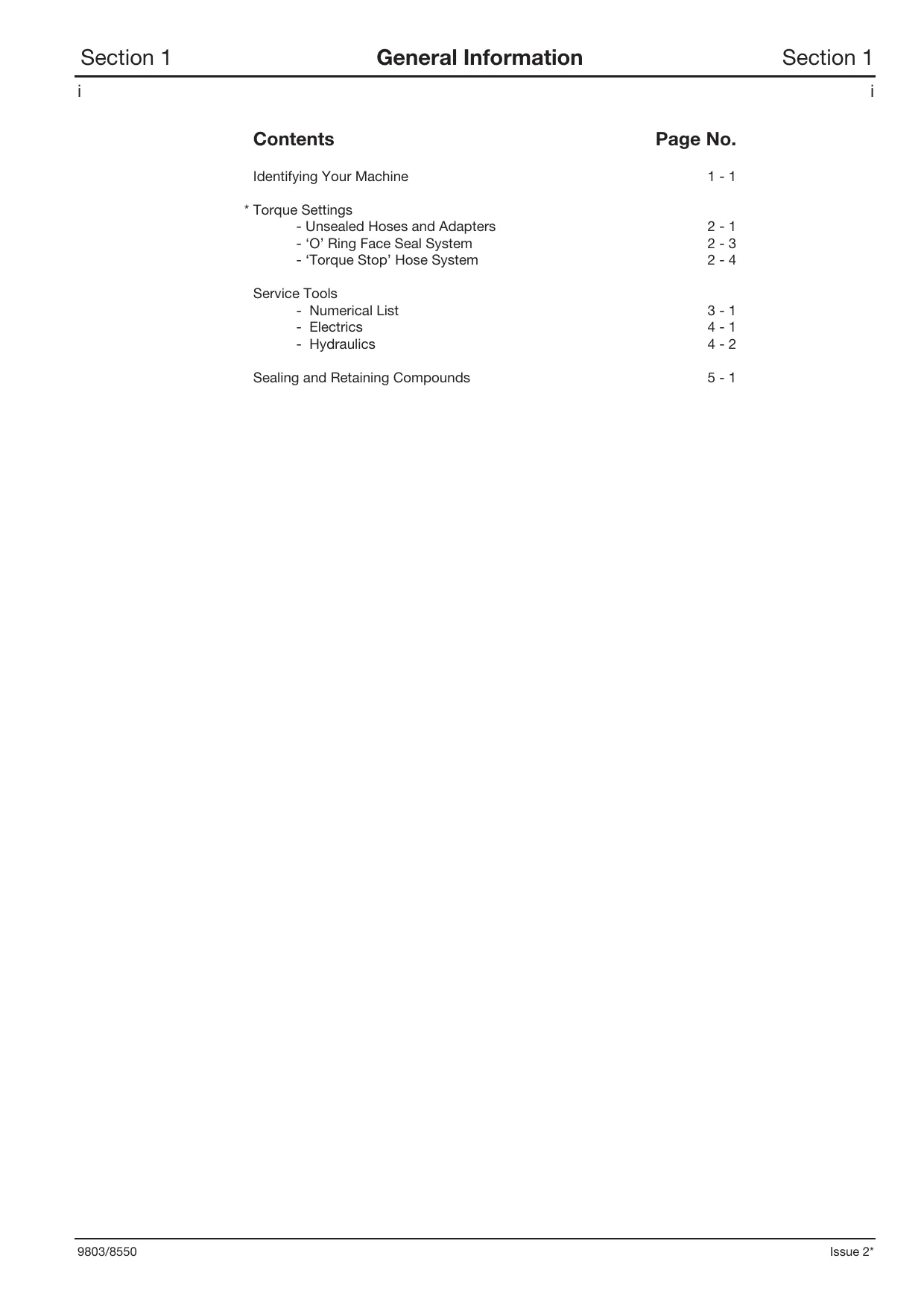

Shop references include torque tables and tools such as AVO meter 892/00281, pressure-test kit 892/00253, hand pump 892/00223 with relief-valve test block 892/00252, piston seal assembly tool 892/01027, and pump support bracket 892/00858.

Drive Motor Leakage and XUD Compression Examples

The forward-drive case-drain test lists an average drive motor leakage rate of 3.0 L/min at 200 bar motor feed pressure. The table gives reference rates at several pressures for comparison during diagnosis.

For the XUD engine, the compression specification is 25–30 bar when cranking the warm engine, with a maximum difference of 5 bar between cylinders.
