2007 Jeep Grand Cherokee WK Parts Catalog (Component P/N 05064002AJ, 05064033AD)

This illustrated parts catalog covers the 2007 Jeep Grand Cherokee WK, with Laredo, Limited, Overland, and SRT-8 trim listings and 2WD/4WD applications. Exploded views are paired with item numbers, quantities, part numbers, and application columns. This is a parts-identification reference, not a step-by-step service or diagnostic manual.

• Engine assemblies: Cylinder heads, blocks, crankshafts, valvetrain, timing components, and gasket packages, with separate gasoline and turbo-diesel sections.

• Transmissions and transfer cases: Component breakdowns for the 545RFE, W5A580, and W5J400 transmissions, plus NVG 140, NVG 146, and NVG 245 transfer cases.

• Chassis and brakes: Front and rear suspension, axle and differential assemblies, steering linkage, disc brakes, parking brakes, and hydraulic control-unit parts.

• Cooling and fuel systems: Radiators, water pumps, coolant bottles, fuel rails, diesel injection-pump components, and turbocharger-related parts.

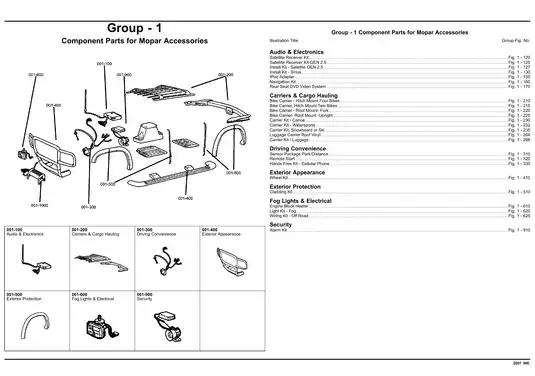

• Electrical and accessories: Starters, alternators, control modules, wiring harnesses, remote-start equipment, park-assist sensors, and Mopar accessory assemblies.

• Body and cabin: Body sheet metal, door hardware, interior trim panels, seat components, steering-column parts, and heater/air-conditioning assemblies.

The application codes and itemized parts tables suit technicians, parts-counter staff, and experienced owners who can identify their vehicle's installed equipment.

Matching Parts to the Installed Driveline

Application columns distinguish vehicle line, series, body, engine, transmission, and trim. Transfer-case assembly pages also require tag and stamping-number checks before ordering. The separate NVG listings help match internal parts to the fitted unit before purchasing replacements.

Transmission illustrations extend to gear trains, clutch packages, valve bodies, and gasket/seal packages. Build-date notes distinguish parts such as the diesel transmission filler tube and front door-window regulators.

Engine Assemblies and Catalog Limits

The engine sections cover the V6, V8, Hemi, SRT Hemi, and turbo-diesel builds listed above. For the EZB Hemi engine, the short-block listing excludes the camshaft, lifters, oil pump, and oil pan; the long-block description identifies the additional assemblies supplied.

Illustrations such as Crankshaft, Pistons and Drive Plate, Timing Chain and Guides, and Intake Manifold and Mounting show component relationships and service-package contents.

Crankshaft identification and main-bearing selection are referred to a separate service manual; the catalog does not replace overhaul instructions. The EXL crankshaft listing also flags connecting-rod bearing-cap bolts for replacement when a rod or its bearing is replaced.

Suspension Fitment and Axle Parts

Front Stabilizer Bar distinguishes normal-duty and performance-suspension hardware. The SDX note specifically excludes bushings and retainers with raised beads, a fitment distinction to check before ordering mounting parts.

Differential, Front Axle and the Corporate and Dana 44 rear-axle illustrations separate conventional and electronically controlled limited-slip applications. Gear-lubricant entries identify Mopar SAE 75W-140 products by package size; these are product listings, not axle fill-capacity specifications.

Electrical, Accessories, and HVAC Coverage

Electrical illustrations show harness assemblies and component applications. Circuit schematics and pin-by-pin connector charts are outside this catalog's scope; Wiring Repair Packages refers connector-repair information to a separate source.

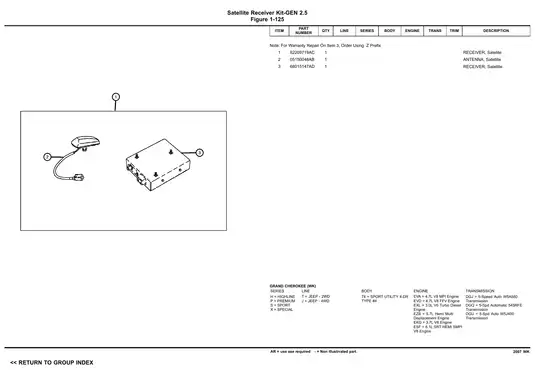

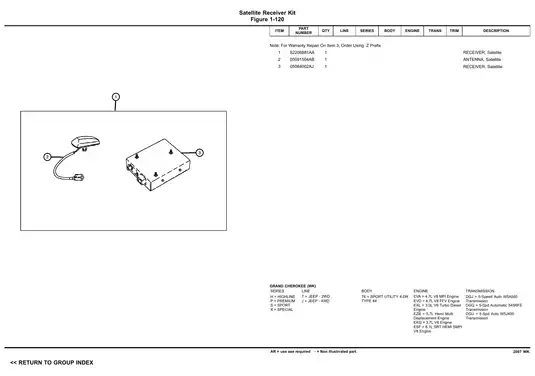

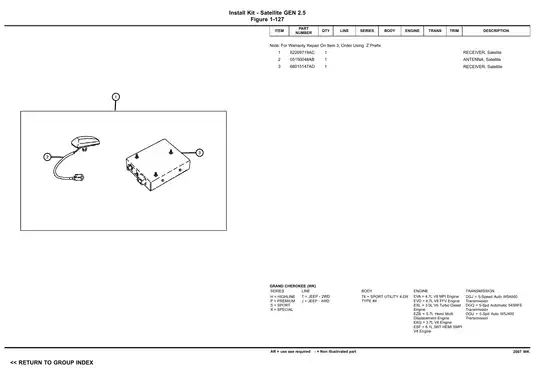

Accessory entries include satellite receiver P/N 05064002AJ and geographic database DVD P/N 05064033AD. These identify components, not the catalog publication. HEVAC, Unit breaks down the heater/air-conditioning housing, actuators, doors, heater core, and evaporator.

Consult the appropriate factory service manual before removing or installing components, particularly brake, airbag, and refrigerant-system parts. Use appropriate protective equipment and standard shop safety practices.

A Preview of Axle Ratios and Mounting-Hardware Dimensions

These examples are a small selection of the catalog's parts-identification data. The front-axle assembly listing identifies 3.07, 3.55, and 3.73 ratios through sales codes DMM, DMD, and DME, respectively.

The front stabilizer drawing lists an M12 x 1.75 x 75.00 bolt for the link-to-lower-control-arm mounting and an M12 x 1.75 x 80.00 bolt for the bar-to-link mounting. These dimensions describe listed hardware; they are not torque settings.

Searchable Parts Listings and PDF Navigation

Text search and bookmarks: The PDF supports text search and includes bookmarks to parts groups and individual illustrations. Some category bookmarks have unresolved destinations, and two index-return entries refer to separate files. Some long notes are clipped at the right page edge.

The download contains one printable, English-language, 673-page PDF, including the VIN-decoding page and group indexes. No separate supplemental publication is included.
