2008 Yamaha V Star 1300 XVS13AX(C)/XVS13CTX(C) Service & Repair Manual (P/N LIT-11616-21-29)

Yamaha's 2008 XVS13AX(C)/XVS13CTX(C) Service Manual, P/N LIT-11616-21-29, covers the V Star 1300 configurations listed above, including California-specific emissions equipment. This is the first edition, May 2007; the cover also carries document code 3D8-28197-11.

• Engine repair: Engine removal, camshaft installation, cylinder-head and valve work, piston inspection, crankcase separation, and crankshaft service.

• Clutch and transmission: Clutch disassembly, friction-plate inspection, primary drive gear service, transmission assembly, and shift-fork and shift-drum checks.

• Chassis and brakes: Front-fork disassembly, steering-head and swingarm service, brake-caliper and master-cylinder repair, and hydraulic brake bleeding.

• Cooling system: Radiator-cap pressure testing, thermostat checks, and water-pump disassembly, inspection, and seal replacement.

• Fuel injection: Throttle-body synchronization, fuel-pressure testing, throttle-position sensor adjustment, ECU fault-code diagnosis, and sensor and actuator tests.

• Electrical troubleshooting: Ignition, starting, charging, lighting, and signaling tests, with circuit diagrams, cable routing, and component-specific electrical specifications.

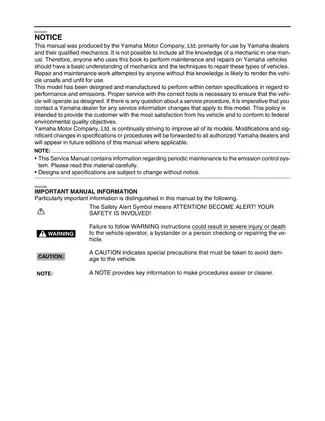

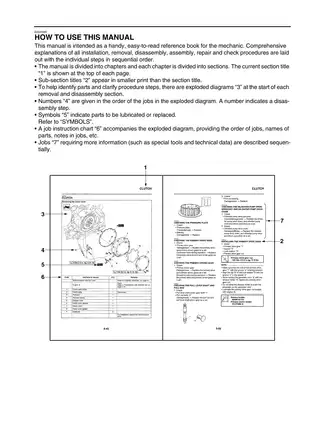

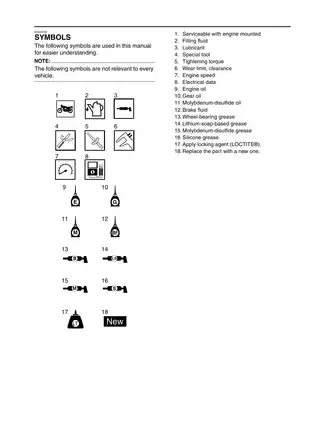

Written primarily for Yamaha dealers and qualified mechanics, this manual assumes basic mechanical knowledge and familiarity with vehicle repair techniques.

EFI Diagnosis and Throttle-Body Identification

The ECU self-diagnostic function tables link displayed fault codes to affected circuits, probable causes, and reinstatement checks. Combined with the sensor and actuator operation tables, they help narrow down EFI faults before parts are replaced.

Diagnostic mode is accessed through the multi-function meter unit. Instrument coverage also explains the clock, tripmeters, fuel-reserve display, and brightness settings.

The MIKUNI ACW40 throttle bodies carry different ID marks: 3D81 20 for USA/CDN and 3D82 30 for California. California-specific canister checks and purge-hose routing are identified separately. The synchronization section distinguishes air-screw adjustment from the throttle-valve adjusting screws, which must not be used for synchronization.

Internal Engine, Clutch, and Gearbox Work

Engine coverage extends to camshaft timing and chain-tensioner handling, valve-guide and valve-seat work, piston clearances, and ring inspection. The crankshaft section documents big-end bearing selection using connecting-rod and crankshaft markings.

It warns that mixing connecting rods and big-end bearings can alter oil clearance and damage the engine. Connecting-rod assembly includes staged torque-and-angle tightening, new bolt and nut requirements, and replacement of any bolt tightened beyond the specified final angle.

Clutch and transmission pages provide friction-plate wear limits, clutch-plate warpage checks, gear and shaft inspection, and shift-fork installation details. Primary drive gear nut specifications and lock-washer details accompany reassembly coverage. Starter-motor inspection includes the armature, brushes, and commutator, supported by output and wear specifications.

Suspension, Brakes, and Cooling Service

Front-fork procedures include oil-seal installation, while steering-head and swingarm sections cover bearings and pivots. Belt-drive pages address pulley removal and installation, belt condition, and slack adjustment.

Rear-shock coverage addresses assembly removal, inspection, and replacement; the manual warns against opening the pressurized shock absorber. Brake sections go beyond pad replacement to caliper and master-cylinder disassembly, inspection, and assembly.

Cooling-system procedures cover radiator-cap testing, thermostat operation, and water-pump seals. The tool references identify the water-pump seal installer as YM-33221-A. Fuel-pressure tests, brake work, and engine handling require the manual's specified precautions and suitable test and support equipment.

Wiring, Routing, and Component Tests

Reference drawings include the engine oil lubrication chart, cooling system diagrams, cable routing layouts, ignition circuit diagram, electric starting circuit diagram, and full vehicle wiring diagram. The final wiring sheets provide monochrome and color versions.

Electrical checks cover ignition-coil resistance, the crankshaft position sensor, charging components, relays, and the radiator fan circuit. These are paired with circuit-specific troubleshooting charts and connector references.

Preview: Cylinder-Head Torques and Cooling Capacities

Cylinder-head installation data lists 65 Nm for the nuts, with engine oil on the nuts and washers, and 13 Nm for the bolts as part of the specified staged procedure.

Cooling specifications distinguish radiator capacity including all routes, 2.10 L, from radiator-only capacity, 0.55 L. These figures accompany coolant-change and cooling-component service information.

Searchable PDF, Chapter Bookmarks, and Wiring Detail

Search and diagram navigation: Searchable text and chapter bookmarks are included. The contents bookmark has no active destination, and the main-menu bookmark links to a separate file. Small wire codes and connector labels in dense schematics require zooming.

One printable English-language PDF with 418 pages, including eight front-matter pages, one publisher back-cover page, and two final wiring-diagram sheets. Six blank pages are included in that total, two of them within the front matter.
