1999 Yamaha YZ125L Owner's Service Manual

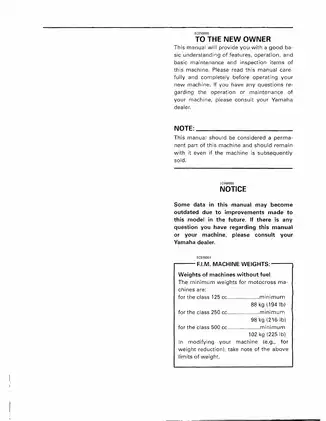

The 1999 Yamaha YZ125L Owner's Service Manual covers operation, maintenance, repair and tuning for the YZ125LC, YZ125L1 and YZ125(L) regional variants.

PDF Search, Chapter Bookmarks and Page Count

Search and diagram detail: OCR text search works across most sections, but the carburetor/reed-valve removal page has no searchable text. Bookmarks provide access to the index, contents and all seven chapters; small wiring color codes need zooming for comfortable reading.

One printable English-language PDF contains 246 pages, including one cover page and three memo pages.

Engine Overhaul, Chassis Service and Race Tuning

Beyond these selected workshop topics, the manual also covers starting and break-in procedures, cleaning and storage.

• Engine repair: Engine removal, crankcase separation, crankshaft inspection and top-end repair, with piston-and-cylinder matching data.

• Clutch and transmission: Wet-clutch inspection, primary drive service, and transmission, shift cam and shift fork disassembly and reassembly.

• Fuel and intake: Mikuni TMX36SS carburetor teardown, fuel-level checks, jetting adjustments and reed-valve inspection.

• Cooling system: Radiator removal, cap and cooling-system pressure tests, plus water-pump impeller, bearing and seal service.

• Suspension and steering: Telescopic fork overhaul, steering-bearing service, swingarm-linkage inspection and Monocross rear suspension adjustment.

• Brake service: Front and rear pad replacement, caliper and master-cylinder overhaul, brake-hose installation and brake-system air bleeding.

• Electrical diagnosis: Wiring diagram and ignition inspection flowchart, with spark-gap, stop-button, ignition-coil and CDI magneto tests.

Owners can use the operating and maintenance sections; the repair chapters address mechanics and call for measuring equipment and special tools.

Engine Repair and Maintenance

Step-by-step instructions cover splitting the crankcases and rebuilding the top end, supported by exploded views and job instruction charts. The piston-and-cylinder selection chart matches lettered cylinder sizes to color-coded pistons, connecting inspection findings with replacement-part selection.

Internal clearances, piston ring end gaps and crankshaft inspection limits support component assessment before reassembly. Sectional views clarify piston-ring geometry and circlip orientation.

The crankcase section identifies separating tool YU-01135-A / 90890-01135 and cautions against forcing unevenly separating cases or striking gasket mating surfaces, which can damage the case joint.

Transmission inspection includes a specific replacement note linking a malfunctioning shift fork to its two adjacent gears. Component-specific torque tables cover engine mounting bolts and suspension pivot shafts as well as internal engine fasteners.

Carburetor Tuning, YPVS and Cooling

Carburetor setting charts distinguish European jetting from the other regional configurations. They relate main jets, pilot jets, needle profiles and clip positions to throttle opening, atmospheric conditions and track conditions.

Race-based maintenance schedules cover air-filter servicing and transmission-oil changes. Tuning guidance also discusses spark-plug heat ranges and plug-condition assessment.

YPVS coverage separates exhaust power-valve carbon removal and link-lever inspection from mechanical governor disassembly and assembly. Water-pump inspection addresses the impeller shaft, drive gear, bearing and seals, with notes on coolant changes and milky transmission oil.

Fork, Brake and Rear Suspension Work

Front fork procedures include oil-seal replacement using fork seal driver YM-01442 / 90890-01442. An assembly caution explains how a dropped damper rod can damage the valve inside the inner tube.

Cable routing diagrams show brake-hose, control-cable and ignition-lead placement for reinstallation. Brake sections extend beyond pad replacement to piston and seal inspection, master-cylinder work and final leak checks.

Rear shock coverage includes removal, inspection, spring and bearing work, installation and external adjustments. The nitrogen-charged cylinder and reservoir are not to be disassembled.

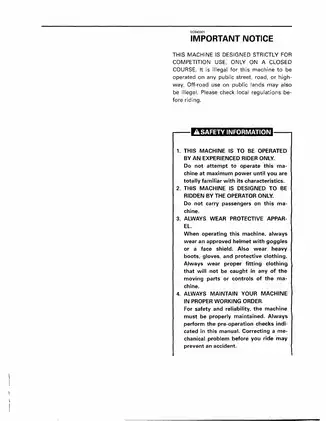

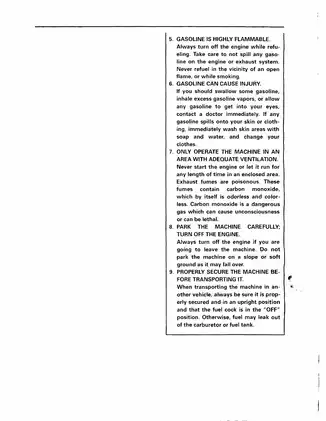

Proper maintenance always demands appropriate protective gear and a secure, well-ventilated workspace to prevent injury during heavy mechanical lifting or fluid handling.

Ignition Fault Tracing

The no-spark inspection flowchart works through connections, the engine-stop button, ignition coil and magneto coils before CDI-unit replacement. Illustrated tester connections and temperature-specific resistance tables help isolate the affected circuit.

Examples of Engine Torque and Ignition-Coil Test Data

For engine assembly, the manual specifies 28 Nm for the cylinder-head nuts, with staged crisscross tightening, and 55 Nm for the primary-drive-gear bolt.

Ignition-coil test data include primary-winding resistance of 0.14–0.20 Ω and secondary-winding resistance of 6.7–10.1 kΩ, both at 20°C (68°F). The secondary-winding check is specified with the spark-plug cap removed.
