Fiat-Hitachi EX135 Excavator Service Manual Set, 1997–2002 (P/N 604.06.837)
633 Pages • ZIP Download: 3 Printable PDFs • 7.12 MB
Hitachi Models Covered & Key Technical Specifications
Model: EX135
Sub-models / Variants: Crawler Excavator
Model Years: 1997–2002 (1997, 1998, 1999, 2000, 2001, 2002)
-
Engine: IVECO 8045.25.282, 4-stroke turbocharged diesel
-
Engine Power: 63–66 kW (85–90 HP) with HP mode on
-
Hydraulic Pump Flow: 94.5 L/min x 2 (theoretical maximum for the main pumps)
-
Main Relief Pressure: 34.3 MPa (350 kgf/cm²) at 80 L/min
-
Travel Speeds: 3.5 km/h (Slow) / 5.5 km/h (Fast)
-
Battery Capacity: 75 Ah x 2 (12 V each, 24 V system)
Hitachi Manual Features & Selected Content Preview

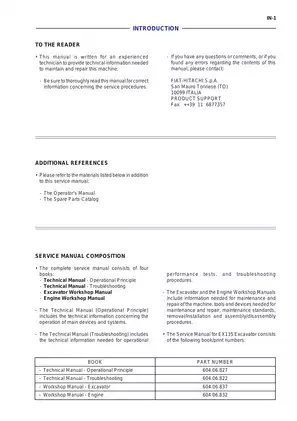

| Publication | Pages |
|---|---|
| Fiat-Hitachi EX135 (1997–2002) — Technical Manual: Operational Principle, Edition XI (1997), P/N 604.06.827 | 116 |
| Fiat-Hitachi EX135 (1997–2002) — Technical Manual: Troubleshooting, Edition XI (1997), P/N 604.06.822 | 217 |
| Fiat-Hitachi EX135 (1997–2002) — Workshop Manual: Excavator, Edition XI (1997), P/N 604.06.837 | 300 |
The system descriptions explain what the controller and hydraulic circuits are supposed to do. Use them with the fault charts and performance tests to narrow down the fault before turning to the workshop procedures for the affected assembly.
Internal IVECO engine overhaul requires the separate Engine Workshop Manual (P/N 604.06.832).

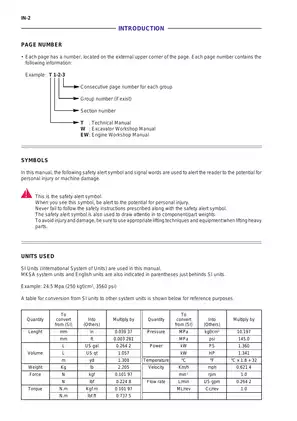

Searchable Text, Bookmarks, and Diagram Detail
Text search and diagram detail: All three PDFs have searchable body text and embedded bookmarks. The Troubleshooting volume’s full electrical and hydraulic schematic sheets use drawn labels that text search skips. Their legends are searchable. Zoom in to read the small, faint wire codes, pin numbers, and hydraulic port labels on the full-system sheets.
The ZIP contains three printable English-language PDFs totaling 633 pages, including all three covers and the chapter notes pages. The total also includes the safety sections in Troubleshooting and Workshop Manual and the four schematic and legend pages in Troubleshooting.
Hydraulic Testing, Dr.EX Diagnostics, and Excavator Repair
This is a selection of the procedures covered. The manuals also include control lever force and stroke checks.
-
Engine and hydraulic controls: Main Controller inputs and outputs, engine speed control, work modes, arm regeneration, and travel motor swash-angle control.
-
Hydraulic testing and adjustment: Pilot and main pump pressure checks, relief valve and regulator adjustments, pump flow testing, swing motor drainage, and travel motor drain pressure testing.
-
Machine performance: Travel speed and mistrack checks, travel parking brake testing, swing speed and drift checks, cylinder cycle timing, digging-function drift, and combined boom-raise and swing testing.
-
Electrical fault isolation: Dr.EX fault codes and live data, symptom-based and monitor-panel troubleshooting, connector testing, and harness checks with full electrical and hydraulic circuit diagrams.
-
Upperstructure repair: Cab, counterweight, and main frame removal and installation, plus teardown and reassembly of the pump device, regulator, control valve, swing device, and pilot valves.
-
Undercarriage and front attachment: Swing bearing removal, travel drive and motor repair, center joint and track adjuster service, idler and roller work, track repair, bucket tooth replacement, and cylinder repair.
Fiat-Hitachi wrote these manuals for experienced technicians who maintain and repair the machine.
Engine Control and Hydraulic Circuits
The Engine Control System layout follows signals from the engine control dial, pressure sensors, travel and front-operation switches, and work-mode and learning switches to the Main Controller (MC). It traces commands to the engine control (EC) motor and the SC and SI proportional solenoid valves.
Normal Control, HP Mode, E Mode, and Auto-Idle each change how the controller manages engine speed. The work modes are General Purpose, Grading, Precision, and Attachment. Grading disables arm regeneration, while Attachment mode requires the optional attachment kit.
Engine Learning stores the full-speed and idle governor stop positions. The manuals explain when the routine is required after work on the engine, control cable, EC motor, or MC.
The neutral and combined-operation hydraulic diagrams show how the main and pilot circuits route oil. The control valve circuit details boom and arm anti-drift functions, boom regeneration, travel flow control, and the travel/boom-lower selector. The pump section explains how the regulators use pressure from both HPV050FW main pumps to control flow.
Dr.EX and Electrical Checks
The Dr.EX analyzer (P/N 75301336) displays stored faults and live inputs such as pump pressure, EC angle, switch states, and Engine Learning status. Service mode covers engine speed adjustments for operating modes, breakers, and crushers. The fault charts use a pump delivery pressure sensor comparison to distinguish a failed sensor from a wiring fault. The Main Pump P-Q Diagram gives technicians a reference for evaluating measured pump flow under load.
The specifications identify the 3,907 cm³ four-cylinder, direct-injection IVECO 8045.25.282. The electrical chapters trace intake-air-heater sequencing, starting and charging, surge protection, and normal and emergency engine stop circuits. Component layouts locate fuses and relays, and test procedures cover fusible links, battery and alternator output, and harness continuity. The circuit-check lamp harnesses are identified by P/N 75301514, 75301515, 75301516, and 75301484.
Pump, Travel Drive, and Cylinder Reassembly
The workshop volume gives step-by-step procedures for rebuilding the pump device and servicing the travel reduction gear. Exploded views, torque tables, and maintenance standards support work on the pilot pump, shockless valve, solenoid valve unit, pilot relief valve, and travel motor counterbalance valve.
The pump procedures identify side-specific valve plates and warn that trapped air can damage the pump at startup. The cylinder procedures show cushion seal and oil groove orientation and explain how an off-center rod can damage the sealing rings. Boom cylinder tools include the piston nut socket (P/N 75301670), seal installation kit (P/N 75301657), and head installation tool (P/N 75301666).
Pressurized hydraulic circuits, track adjuster springs, counterweights, and raised attachments require the blocking, lifting, pressure-release, and electrical-isolation practices specified in the manuals.
Swing Bearing and Track Wear Examples
For the EX135 swing bearing dial-indicator check with an empty bucket, the Troubleshooting volume lists a performance standard of 1.1 mm or less and an allowable limit of 3.7 mm.
For the EX135 track link pin and bushing wear check, the workshop volume gives a four-link length of 685.8 mm as standard and 706.4 mm as the allowable limit. The measurement applies to the track under tension and excludes the section containing the master pin.
