2006 Yamaha Roadliner, Stratoliner XV 1900: XV19 Series XV19SV(C), XV19V(C), XV19MV(C), XV19CTSV(C), XV19CTV(C), XV19CTMV(C) Factory Service Manual (P/N LIT-11616-19-44)
431 Pages • Printable PDF • 19.88 MB • Download
Yamaha Models Covered & Key Technical Specifications
Models: XV19SV, XV19V, XV19MV, XV19CTSV, XV19CTV, XV19CTMV
Sub-models / Variants: XV19SVC, XV19VC, XV19MVC, XV19CTSVC, XV19CTVC, XV19CTMVC, USA, Canada, California
Models & Model Codes:
XV19SV — 1D71 (USA), 1D73 (Canada)
XV19SVC — 1D72 (California)
XV19V — 4D41 (USA), 4D43 (Canada)
XV19VC — 4D42 (California)
XV19MV — 4D51 (USA), 4D53 (Canada)
XV19MVC — 4D52 (California)
XV19CTSV — 2C51 (USA), 2C53 (Canada)
XV19CTSVC — 2C52 (California)
XV19CTV — 4P01 (USA), 4P03 (Canada)
XV19CTVC — 4P02 (California)
XV19CTMV — 4P11 (USA), 4P13 (Canada)
XV19CTMVC — 4P12 (California)
Model Year: 2006
-
Engine: Air cooled 4-stroke, OHV, 1854 cc, V-type 2-cylinder
-
Transmission: Constant mesh 5-speed, wet multiple-disc clutch
-
Fuel System: Electronically controlled fuel injection (FI)
-
Engine oil capacity: 5.20 L (total), 3.2 L (engine), 2.0 L (oil tank)
-
Engine idling speed: 850–950 r/min
-
Final Drive: Belt drive
-
Brakes: Front dual disc, rear single disc
Yamaha Manual Features & Selected Content Preview

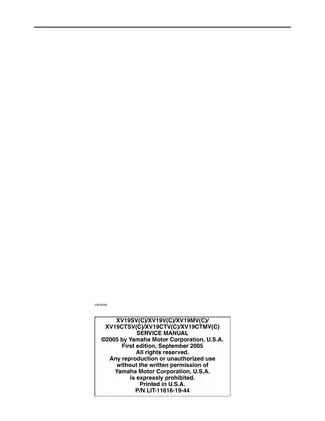

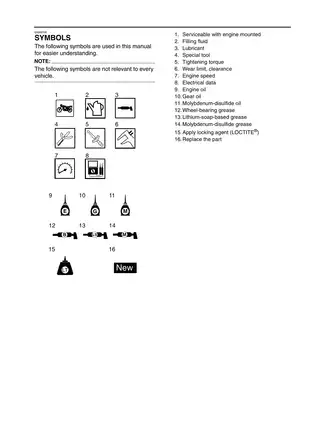

This first-edition Yamaha factory service manual (September 2005; P/N LIT-11616-19-44 / 1D7-28197-10) covers the 2006 XV19SV(C), XV19V(C), XV19MV(C), XV19CTSV(C), XV19CTV(C), and XV19CTMV(C), with USA, Canadian, and California model specifications.
Searchable Text, Bookmarks and Wiring Detail
Navigation and diagram detail: The PDF supports text search and includes chapter and section bookmarks. The external “Back to Index” bookmark points to a separate INDEX.pdf. Small labels in the electrical circuit diagrams and color wiring diagram require zooming for comfortable reading.
One printable, English-language PDF contains 431 pages, including six opening pages and one back cover. The wiring diagram and its component and color-code key are included in that total.
Engine Overhaul, FI Diagnosis and Chassis Service
The selected topics below outline part of the workshop coverage; other sections address meter brightness settings and fuel-level sender testing.
-
Engine repair: Engine removal and installation, cylinder-head and valve work, piston inspection, crankcase separation, crankshaft checks, and oil-pump service.
-
Transmission and clutch: Internal transmission disassembly, shift-fork inspection, clutch-pack repair, and hydraulic clutch master-cylinder and release-cylinder service.
-
Fuel injection: Fuel-pump removal, pressure-regulator testing, injector inspection, throttle-position sensor adjustment, and ISC system checks.
-
Electrical troubleshooting: ECU fault-code tables, sensor and actuator tests, ignition and charging diagnosis, starting-circuit checks, and system-specific circuit diagrams.
-
Brakes and suspension: Caliper and master-cylinder overhaul, hydraulic bleeding, front-fork disassembly, steering-head service, and swingarm linkage inspection.
-
Scheduled maintenance: Emission-control and lubrication charts, throttle-body synchronization, valve-clearance checks, EXUP cable adjustment, and drive-belt inspection.
Written primarily for Yamaha dealers and qualified mechanics, this manual assumes a basic understanding of motorcycle mechanics and repair techniques, along with the appropriate service tools.
Engine Internals and Transfer Gear Service
Step-by-step procedures cover valve-guide replacement, valve-seat inspection and lapping, connecting-rod bearing selection, and camshaft and balancer gear installation. The engine sections also include decompression-system checks and hydraulic valve-lifter bleeding.
The hydraulic lifters normally compensate for valve clearance automatically; the maintenance chapter explains when manual adjustment is needed. Inspection data covers rocker-arm shafts, valve springs, piston rings, and related wear limits.
The dry-sump lubrication documentation includes an engine oil lubrication chart and component oil-flow diagrams. Transfer gear case service addresses the primary chain, middle drive gear, middle driven shaft, strainer, and oil pump, with separate SAE80 API GL-4 hypoid gear oil requirements.
FI Fault Tracing and EXUP Checks
ECU fault-code data, sensor operation tables, and circuit diagrams support fault isolation before parts are replaced. For example, the intake-pressure diagnostics distinguish sensor circuit faults from clogged or detached sensor hoses, directing the mechanic toward different checks.
Fuel-system coverage includes throttle-body cleaning, synchronization, pressure-regulator testing, and throttle-position sensor adjustment. The throttle bodies are not intended to be disassembled. ISC coverage includes unit removal, hose checks, and diagnostic-mode operation.
EXUP coverage provides cable adjustment, fault-code diagnosis, and servo-motor testing. The motor test includes a specific caution that prolonged battery power can damage the servo motor.
Chassis Procedures and Workshop References
Exploded assembly views accompany removal and disassembly sections. Supporting references include cable-routing drawings, the starting circuit cut-off system diagram, the charging-system circuit diagram, and a color wiring diagram with connector views and a component key.
The maintenance procedures identify required equipment, including vacuum gauge YU-44456 for throttle-body synchronization and belt tension gauge YM-03170. Drive-belt handling precautions explain how twisting or excessive bending can damage the belt.
For the XV19CT variants, chassis procedures also cover windshield, backrest, and sidebag-bracket removal. Chassis tables include frame geometry and variant-specific rear suspension settings.
Follow the manual’s support precautions during wheel, fork, and swingarm work to prevent the motorcycle from falling. Brake and clutch service includes bleeding and final operation checks.
Cylinder-Head and Oil-Pressure Specification Preview
The valve data lists intake valve clearance at 0.00–0.04 mm with the engine cold. Cylinder-head installation specifies 60 Nm (43 ft-lb) for the M12 nuts, with oiled nuts and washers and a two-stage tightening sequence.
For the lubrication system, the engine specifications list hot engine oil pressure at 60.0 kPa at 900 r/min. The engine chapter supplies oil-pump inspection clearances, relief-valve checks, and the associated lubrication diagrams.
