Yamaha Viking VK540(M), VK540EN & VK540E Snowmobile Service Manual Set, 1988–2005 (P/N LIT-12618-02-13)

650 Pages • 1 Printable PDF (English) • Download

4.5starstarstarstarstar_half(2)
$17.80 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Models & Model Codes: VK540(M) (83R for DK, N, NL, S, SF; 84R for CDN), VK540EN (86R), VK540E (8AU, 8AC)

Model Years: 1988–2005 (1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005)

Serial Numbers: 83R-000101 and later (VK540(M): DK, N, NL, S, SF), 84R-000101 and later (VK540(M): CDN), 86R-000101 and later (VK540EN), 8AU-000101 and later (VK540E/8AU)


  • Engine idle speed: 1,100–1,200 r/min (VK540(M), VK540EN); 1,100–1,300 r/min (VK540E/8AU); 1,200 ± 100 r/min (VK540E/8AC)

  • Cylinder bore: 73.00–73.02 mm (2.874–2.875 in)

  • Piston size P: 72.94–72.96 mm (2.871–2.872 in) (VK540(M), VK540EN, VK540E/8AU); 72.94–72.95 mm (2.871–2.872 in) (VK540E/8AC)

  • Spark plug gap: 0.7–0.8 mm (0.028–0.031 in)

  • Drive chain housing oil capacity: 350 cm3 (12.3 Imp oz, 11.8 US oz)

  • Drive V-belt width: 31.6 mm (1.24 in) (VK540(M), VK540EN); 35.0 mm (1.38 in) (VK540E)

  • Sheave distance: 267–270 mm (10.5–10.6 in)

  • Cylinder head nut torque: 25 Nm (2.5 m·kg, 18 ft·lb) (VK540(M), VK540EN); 25 Nm (2.5 m·kg, 18 ft·lb) final torque after two-stage tightening (VK540E/8AU); 13 Nm (1.3 m·kg, 9.4 ft·lb) first stage, 25 Nm (2.5 m·kg, 18.1 ft·lb) final stage (VK540E/8AC)

  • Transmission: V-belt automatic with chain reduction and reverse. Low-range reduction: 3.45 (VK540(M), VK540E/8AU); 3.71 (VK540E/8AC).

Yamaha Manual Features & Selected Content Preview

Publication Pages
Yamaha VK540(M) Service Manual (1988–1992) 219
Yamaha VK540EN Supplementary Service Manual (1989–1992, P/N LIT-12618-01-12) 34
Yamaha VK540E Service Manual (1993–2000, model code 8AU, P/N LIT-12618-01-43) 193
Yamaha VK540E Service Manual (2001–2005, model code 8AC, P/N LIT-12618-02-13) 204

Use the base manual for general overhaul procedures and the VK540EN supplement for revised drive-belt, sheave, and suspension checks and for electric-start and charging diagnosis. The two VK540E manuals give their respective configurations separate overhaul procedures, wiring diagrams, and specifications.

PDF Search, Bookmarks, and Wiring Diagrams

Finding procedures and wire codes: Embedded bookmarks link to chapters across all four publications. Text search works throughout the PDF, though OCR errors and some small diagram labels can limit matches. Zoom in to read the wire-color codes and connector labels.

The download is one printable English PDF with 650 pages, including the opening symbol guides and indexes, four memo pages, four full wiring diagrams, and a separate wiring legend.


Overhaul, Setup, and Electrical Diagnosis

These selected service topics illustrate the coverage. The manuals also include a special-tool cross-reference and VK540E fuel pump inspection.

  • Engine overhaul: Step-by-step engine removal and installation, cylinder and crankcase overhaul, crankshaft inspection, CDI magneto service, recoil starter repair, and cooling fan maintenance.
  • Fuel and lubrication: Carburetor inspection, sea-level and high-altitude jetting, intake reed valve inspection, and Yamaha Autolube bleeding, stroke adjustment, and drive gear inspection.
  • Clutch and transmission: Primary and secondary sheave disassembly, drive-belt inspection, clutch setup charts, chain housing overhaul, and drive chain slack adjustment.
  • Chassis and brakes: Brake caliper service, steering and ski alignment, slide rail suspension tuning, track tensioning, and track replacement.
  • Electrical diagnosis: Ignition, starting, charging, and lighting tests, with circuit diagrams, harness routing, switch checks, and component test specifications.

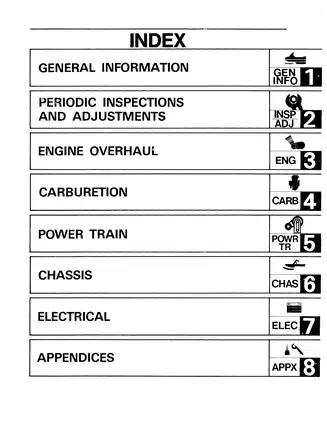

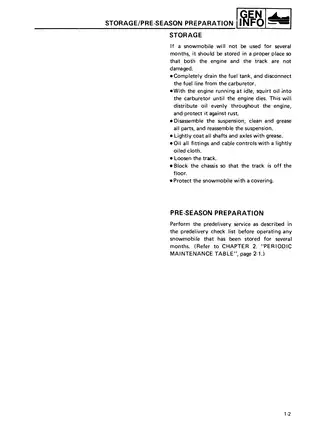

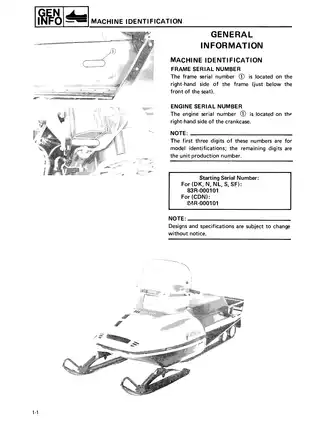

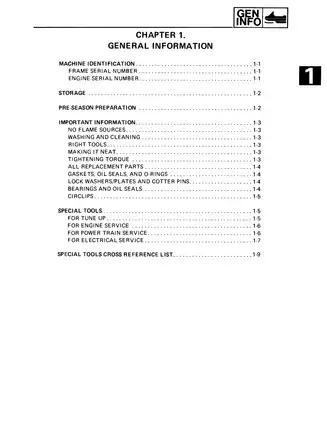

  • Maintenance references: Frame and engine identification, storage and preseason preparation, lubrication intervals, periodic checks, cylinder head tightening sequences, and component torque tables.

The procedures are suited to technicians and experienced owners familiar with two-stroke snowmobile service and equipped for precision measurement, clutch disassembly, and electrical testing.

Engine, Carburetor, and Oil Pump Service

Exploded views accompany engine and recoil starter procedures. Engine inspection covers cylinder head warpage, piston-to-cylinder clearance, ring wear, and crankshaft runout and bearings.

The Fuel Flow Chart, Main Jet Selection Chart, and spark plug condition tables help relate running symptoms to mixture settings and select jetting for elevation. Yamaha Autolube coverage includes drive gear inspection, cable and stroke adjustment, and air bleeding. The precision oil pump is serviced as an assembly.

Routine service includes compression checks, ignition timing, cooling fan belt adjustment, and headlight beam alignment. Lubrication guidance identifies Yamalube 2-cycle oil and Esso Beacon 325 grease.

Sheaves, Chaincase, and Brakes

Clutch procedures cover weight, roller, and bushing inspection, spring selection, and secondary sheave free play and alignment. The 8AC manual specifies the YXR clutch bushing jig kit YS-39752 for replacing weight and roller bushings.

The primary sheave spider has a left-hand thread. Yamaha identifies cracking as a risk when the spider or sheave is poorly supported during service. Chaincase procedures cover gears, shift forks, and shaft inspection, followed by assembly and adjustment. Brake caliper coverage includes the adjusting ratchet and one-way locks.

Steering, Suspension, and Track

The base model has mono-leaf ski suspension, while the VK540E uses telescopic strut suspension (TSS). Rear suspension procedures cover slide rails, track alignment, stoppers, and model-specific hinged extension adjustments.

The 8AC Easy Adjust mechanism uses a toothed full-rate adjuster bolt that can strip if turned with its retaining nut tight. Follow the manual’s precautions for secure snowmobile support, rotating tracks, and spring-loaded clutches during service.

Starter, Ignition, and Accessory Circuits

The VK540EN supplement includes starter motor overhaul and charging tests. Electrical chapters cover armature, source coil, pulser coil, rectifier, and relay checks.

On the 8AC, the Throttle Override System (T.O.R.S.) switch-status table and continuity checks help distinguish a throttle-interlock fault from an ignition component fault. The harness and circuit diagrams also cover the grip warmers, thumb warmer, and reverse buzzer.

Sample Starter and Track Inspection Values

For the VK540EN starter, the armature coil continuity check specifies 0.013–0.015 Ω at 20°C (68°F). The same inspection gives an 8.5 mm (0.33 in) minimum brush length, so the electrical and wear checks can be evaluated separately.

The VK540E/8AC track tension procedure specifies 35–45 mm (1.4–1.8 in) of deflection under a 10 kg (22 lb) pull at the center of the track.
