Yamaha 2008 F300, LF300, F350 & LF350 Outboard Service Manual (P/N LIT-18616-03-08)

572 Pages • 1 Printable PDF (English) • Download

$14.25 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Models & Model Codes:

F300 — 6BJ

LF300 — 6BK

F350 — 6AW

LF350 — 6AX

Sub-models / Variants: F300TR (regular rotation), LF300TR (counter rotation), F350TR (regular rotation), LF350TR (counter rotation); T = power trim and tilt, R = remote control; transom-height codes: X = UL (25 in), U = SUL (30 in). Yamaha shows F350TUR as the designation example for the 30 in F350.

Model Year: 2008

Serial Numbers: F300TR: 1000001–, LF300TR: 1000001–, F350TR: 1000001–, LF350TR: 1000001–

Main-fuse serial breaks: F350TR: 6AW 1000001–1001013 (80 A), 6AW 1001014– (60 A); LF350TR: 6AX 1000001–1000439 (80 A), 6AX 1000440– (60 A)


  • Engine type: 4-stroke, DOHC V8

  • Total displacement: 5,330 cm³ (325.2 cu. in)

  • Compression ratio: 9.6:1

  • Maximum output: 220.7 kW (300 HP) or 257.4 kW (350 HP) at 5,500 r/min

  • Engine idle speed: 600–700 r/min

  • Oil pan capacity (with filter): 8.0 L (8.45 US qt)

  • Spark plug gap: 1.0–1.1 mm (0.039–0.043 in)

  • Lower unit gear ratio: 1.73 (26/15)

Yamaha Manual Features & Selected Content Preview

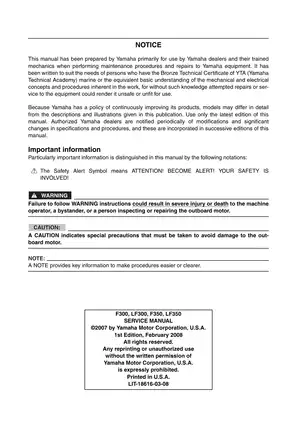

This Yamaha factory service manual covers the 2008 F300, LF300, F350, and LF350 outboards in regular- and counter-rotation configurations. The first edition, dated February 2008, covers maintenance, electrical diagnosis, and mechanical repair (P/N LIT-18616-03-08).

Searchable Text and Color Wiring Diagrams

Text search and diagram detail: Search the PDF text or use the embedded bookmarks to jump to chapters and individual procedures. Zoom in on the wide wiring diagrams to read small pin numbers and wire-color codes.

The download is one printable, English-language 572-page PDF. The total includes the wiring appendix, the front and back covers, and four blank pages.

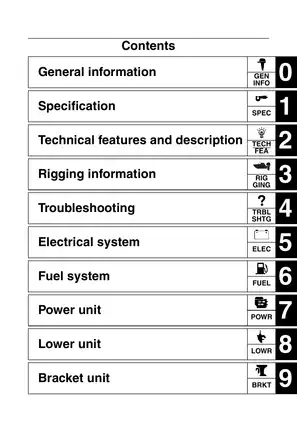

Powerhead Repair, Electrical Diagnosis, and Lower-Unit Service

This selection from the manual also includes procedures for replacing the oil control valve (OCV) filter and testing the lower unit for air leaks.

  • Power unit: Step-by-step instructions for timing belt replacement, plus powerhead removal and installation, valve clearance adjustment, cylinder head service, and crankshaft and bearing inspection.

  • Fuel and cooling: Fuel pressure testing, vapor separator service, injector checks, thermostat inspections, and fuel, vapor, and cooling-water hose routing.

  • Electrical troubleshooting: Engine control module (ECM) connector layouts, electronic throttle valve (ETV) and shift actuator tests, ignition and charging checks, and fault-code charts.

  • Lower unit: Water pump service, separate teardown procedures for regular and counter rotation, shaft and bearing inspection, gear backlash measurement, and shim selection tables.

  • Bracket and Power Trim and Tilt (PTT): Steering arm and swivel bracket service, hydraulic pressure testing, motor and gear pump repair, cylinder inspection, and bleeding.

  • Rigging and maintenance: Digital Electronic Control reset, tilt limiter setup, network diagrams, predelivery checks, and periodic service schedules.

Yamaha prepared this manual primarily for its dealers and trained marine mechanics with Yamaha Technical Academy Bronze certification or equivalent knowledge of mechanical and electrical service.

ECM Diagnosis and Digital Electronic Control

The technical chapters explain variable camshaft timing, fuel injection control, ion-knock detection, and fail-safe operation. ECM pinouts, sensor voltage charts, and fault-specific test sequences help trace a fault to the wiring, sensor, or actuator before replacing parts.

The Yamaha Diagnostic System (YDIS) section identifies kit 60V-85300-04 and covers diagnosis records, engine monitoring, stationary and active tests, and ECM data graphs. It gives model-specific information. Detailed software operation is covered in the separate YDIS Instruction Manual.

Network diagrams show single-, twin-, and triple-outboard installations with Command Link Multifunction Meters. Control box and switch panel installation requires the separate Digital Electronic Control service manual. Yamaha also refers meter installation to the separate Command Link setup manual.

Fuel Delivery, Throttle Testing, and Cooling

The fuel system chapter covers the low- and high-pressure pumps, pressure regulator, vapor separator, and vapor shutoff system. Exploded views show the float and needle valve, and the chapter explains how to inspect them and test fuel pressure.

The ETV and its throttle position sensors are tested as an assembly. The ETV is non-disassemblable. Yamaha specifies regular unleaded gasoline for the F300 and LF300 and premium unleaded for the F350 and LF350.

Cooling-water diagrams trace flow through the thermostats, fuel cooler, and water-cooled rectifier/regulator. Periodic maintenance covers anodes, NGK LFR6A-11 spark plugs, and oil and filter service. The manual lists the service refill and oil pan capacity separately.

Timing, Cylinder Heads, and Internal Engine Repair

Exploded assemblies, torque tables, and wear limits support valve guide replacement, valve seat refacing, piston and ring inspection, and connecting rod and main bearing selection.

The timing procedures explain how reverse flywheel rotation can damage the water pump impeller and how turning the flywheel or driven sprockets with the belt removed can cause piston-to-valve or valve-to-valve contact. Yamaha calls for new flywheel bolts during reassembly.

Always reference the complete factory specifications and safety procedures before fuel-pressure work or power-unit lifting.

Rotation-Specific Shimming and PTT Overhaul

For regular rotation, T1 is the forward gear shim and T2 is the reverse gear shim. Counter rotation reverses those assignments and adds T4 propeller shaft shim selection and free-play measurement.

PTT overhaul covers relief valves, the gear pump, motor brushes and commutator, and the trim and tilt ram seals. Separate bleeding procedures cover the removed assembly and the unit installed on the outboard.

The color wiring appendix separates engine control, fuel, ignition, charging and starting, and PTT into individual diagrams with connector numbers and wire-color codes.

A Preview of Cylinder-Head and Compression Data

The cylinder head warpage limit is 0.1 mm (0.0039 in). Yamaha shows where to place the straightedge for this inspection.

The minimum compression pressure reference is 740 kPa (107.3 psi). Yamaha specifies a warmed engine, an ambient temperature of 20°C (68°F), the Digital Electronic Control in neutral, and all spark plugs removed.
