Yamaha Models Covered & Key Technical Specifications

Models & Model Codes: WR250FN (USA; 5PH1), WR250F (EUROPE; 5PH2), WR250F(N) (CDN, AUS, NZ, ZA; 5PH4)

Sub-models / Variants: USA, Europe, CDN, AUS, NZ, ZA variants

Model Year: 2001


  • Engine: Liquid-cooled 4-stroke, DOHC, single-cylinder, 249 cc

  • Bore x Stroke: 77.0 x 53.6 mm

  • Compression Ratio: 12.5:1

  • Starting System: Kickstarter

  • Transmission: Constant mesh 5-speed

  • Lubrication System: Dry sump

  • Fuel System: FCR-MX37 Keihin carburetor

  • Ignition System: CDI magneto

  • Front Suspension: Telescopic fork, 300 mm wheel travel

  • Rear Suspension: Swingarm (link type monocross suspension), 315 mm wheel travel

  • Coolant Capacity: 1.3 L (1.14 Imp qt, 1.37 US qt)

Yamaha Manual Features & Selected Content Preview

Yamaha’s 2001 WR250F(N) Owner’s Service Manual, P/N 5PH-28199-30, covers the USA, Europe, CDN, AUS, NZ and ZA variants. It combines operating information and routine maintenance with engine, chassis and electrical repair procedures and competition tuning guidance.

Searchable Text, Chapter Bookmarks and Wiring Detail

Finding procedures and diagrams: Searchable PDF text and bookmarks for all seven chapters support navigation between specifications and procedures. Small connector markings and wire-color codes in the wiring diagram are readable when enlarged.

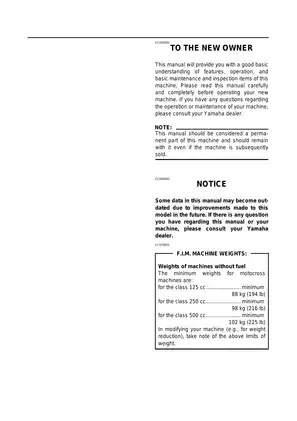

One printable, English-language PDF contains 307 pages, including the original cover and 11 pages of introductory material and contents.


Engine Repair, Chassis Service and Competition Tuning

These coverage highlights are a selection from the manual. Other topics include machine identification, fuel requirements, starting and break-in procedures.

  • Engine and transmission: Step-by-step instructions cover engine removal, crankcase separation, crankshaft inspection, clutch repair, transmission disassembly and shift-mechanism service.

  • Valve train: Camshaft inspection and timing, valve-guide replacement, valve-seat inspection, valve-clearance adjustment and intake/exhaust pad-selection tables.

  • Carburetor: Disassembly and inspection of the accelerator pump, air cut valve and starter plungers, plus jetting and mixture-setting guidance.

  • Cooling and lubrication: Radiator-cap and cooling-system pressure checks, water-pump repair, oil-pump clearance inspection and dry-sump oil service.

  • Brakes and chassis: Brake caliper and master-cylinder rebuilding, bleeding, fork oil-seal replacement, wheel bearings, steering bearings and swingarm linkage service.

  • Electrical diagnosis: Ignition and lighting troubleshooting charts, CDI magneto tests, throttle position sensor adjustment, wiring diagrams and cable-routing diagrams.

This manual is suited to mechanics and experienced owners equipped for component measurement and disassembly; Yamaha recommends dealer maintenance for the front fork.

Internal Engine Inspection and Assembly References

The specification tables distinguish standard values from service limits for cylinder bore, piston clearance, valve stem-to-guide clearance, camshaft dimensions and crankshaft runout. Exploded assembly views and job charts identify removal scope, lubrication points, replacement items and component-specific tightening torques.

Valve-lifter selection includes a cylinder-head color-matching chart. Balancer installation references show the alignment marks, while the transmission section identifies shift-fork positions and gear placement. These references help relate inspection findings to the parts and assembly details needed for an engine repair.

The manual warns that using the decompression lever while the engine is running can damage the engine.

Carburetor Settings and Starting Behavior

Factory tuning data relates main-jet, pilot-jet, jet-needle and accelerator-pump leak-jet changes to throttle opening and operating symptoms. Regional setting tables distinguish the supplied carburetor configurations, and tuning-parts tables include replacement jet and needle numbers.

Starting guidance separates cold starts, warm restarts and restarts after a fall. Accelerator-pump cautions address plug fouling from unnecessary throttle operation; the starting table also includes a specific cold-weather provision.

Ignition, Sensor and Lighting Fault Tracing

The map-controlled CDI section explains how engine speed and throttle position affect ignition timing. Its 3-D illustration explains the control principle rather than supplying actual ignition-calibration values.

Separate ignition, throttle position sensor and lighting flowcharts connect fault symptoms with component tests. Resistance specifications, tester-terminal views and regulator-output checks support fault isolation before the CDI unit is considered for replacement.

Suspension Service and Setup Limits

Front-fork procedures include damper-rod removal, seal installation, oil bleeding and level adjustment. The specified tools include damper rod holder YM-1423/90890-01423 and fork seal driver YM-01442/90890-01442, making the required equipment identifiable before disassembly.

Suspension-setting charts relate handling symptoms to spring, oil-level and damping changes. Rear-shock procedures cover removal, spring and bearing replacement, preload and damping adjustment. Shock service limit: The pressurized damper cylinder and nitrogen reservoir must not be disassembled.

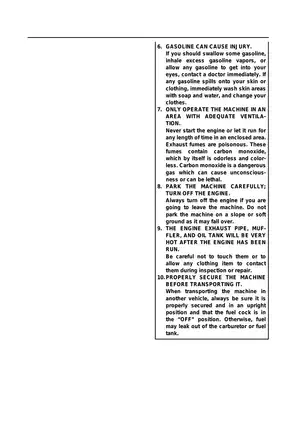

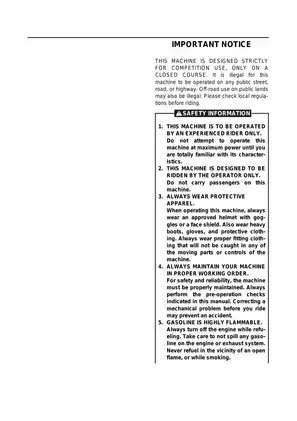

Use properly calibrated tools and follow the manual’s safety precautions and torque sequences when reassembling critical components.

A Preview of Chain, Valve and Ignition Specifications

Drive-chain slack is specified at 40–50 mm with the rear wheel raised, measured above the seal-guard installation bolt at the chain’s tightest position.

Cold valve clearances are 0.10–0.15 mm intake and 0.17–0.22 mm exhaust, checked at compression TDC.

Ignition diagnosis includes a primary-coil resistance specification of 0.20–0.30 Ω at 20 °C (68 °F), accompanied by tester-connection illustrations.
