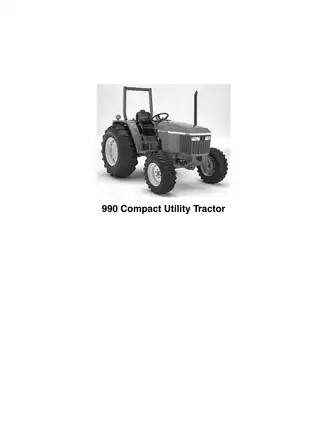

John Deere 990 Tractor Technical Manual, 2000 (P/N TM1848)

This John Deere technical manual, P/N TM1848, July 2000 edition, covers the 2000 990 Compact Utility Tractor with the Yanmar 4TNE84-EJKM diesel engine.

Searchable PDF with System Bookmarks

Text search and diagram detail: Searchable text and embedded bookmarks provide access to system sections, individual tests, repair procedures, and the index. Small wire-color and connector labels in dense electrical schematics require zooming for comfortable reading.

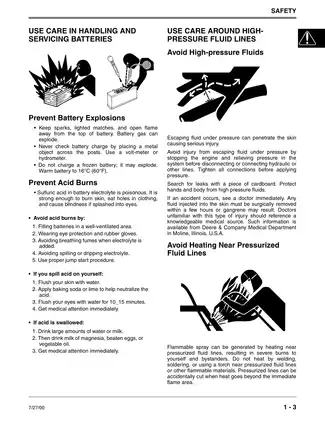

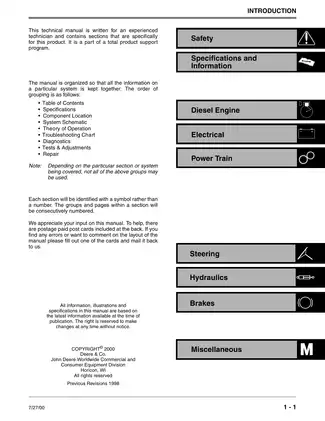

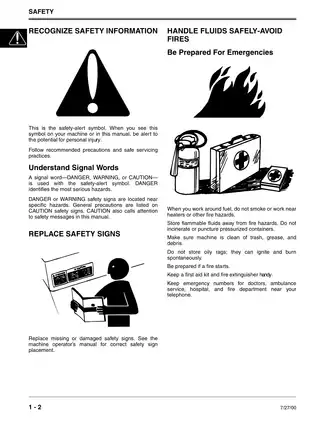

Supplied as one printable, 324-page PDF in English, including cover and notes pages and 14 additional split-page views of troubleshooting charts, wiring diagrams, and hydraulic schematics.

Diesel Engine, Drivetrain and Hydraulic Service

The coverage highlights below represent selected contents rather than the complete table of contents. Other documented work includes three-point-hitch and rollover protective structure (ROPS) removal and installation.

• Engine repair: Engine removal, cylinder-head and valve work, piston and connecting-rod service, crankshaft inspection, and camshaft removal and installation.

• Fuel and cooling tests: Injection-nozzle testing, static injection-pump timing, fuel-transfer pump checks, cooling-system pressure tests, and thermostat testing.

• Clutch and transmission: Step-by-step procedures for front and rear tractor splitting, dual-stage clutch repair, transmission disassembly, differential adjustment, and planetary final-drive service.

• Hydraulic repair: Pump inspection and assembly, system bleeding, rockshaft leakage and lift tests, relief-valve adjustments, and selective control valve (SCV) rebuilding.

• Hydrostatic steering: Steering control unit overhaul, cylinder repair, pump-flow and relief-pressure testing, and separate toe-in adjustments for two- and four-wheel-drive tractors.

• Brake service: Wet-disc brake disassembly and inspection, actuator checks, pedal adjustment, and parking-brake diagnosis.

• Electrical diagnosis: Starting, charging, manifold-heater, fuel shut-off, lighting, and instrument circuits, supported by wiring diagrams, component-location views, and diagnostic charts.

Written for experienced technicians, this manual assumes familiarity with workshop service practices and the test equipment specified for each procedure.

Engine Inspection and Fuel-System Limits

The engine section documents cylinder-bore measurement, deglazing and reboring, bearing-clearance checks, valve-seat work, and inspection of the balancer and lubrication system. Standard dimensions, wear limits, and component-specific torque values support decisions about reusing or replacing parts.

Cylinder-head, connecting-rod, and flywheel fasteners have dedicated tightening specifications. Rocker-arm clearances, valve recession limits, and timing-gear backlash data extend the reference beyond general engine specifications.

Injection-pump scope: Pump removal, installation, and static timing are covered. Internal injection-pump and governor repairs are assigned to a qualified fuel-injection repair shop. The timing section also explains the flywheel’s missing reference mark.

The camshaft instructions identify a specific damage risk: contact between the cam lobes and bearing surfaces during removal or installation can damage the machined surfaces.

Tractor Splitting and Drivetrain Reassembly

Gear Power Flow diagrams explain the transmission and range gearing, including the optional front-wheel-drive power path. Illustrated component layouts distinguish the spacer used in two-wheel-drive tractors from the corresponding drive gear in four-wheel-drive configurations.

The splitting procedures address PTO-shaft couplings that can fall into the transmission tunnel, with access information if a coupling becomes displaced. Tool references include JT07335-1,2,3 splitting stands and brackets and the JDG52 clutch finger adjusting gauge.

Rockshaft, SCV and Steering Diagnosis

Separate hydraulic pump-flow test connections are shown for tractors with and without the SCV. Rockshaft lift-cycle and leakage tests help distinguish restricted supply from leakage in the lift cylinder, valves, or control circuit before components are removed.

The Main Hydraulic Schematic connects these tests to the pump, steering, SCV, and rockshaft circuits. SCV illustrations explain float and regenerative functions; steering-control-unit instructions cover spool, sleeve, centering-spring, and gerotor assembly details.

The steering-pump repair section warns that dry assembly can cause premature pump failure. Follow the manual’s pressure-relief precautions before loosening hydraulic lines, and its support requirements when handling heavy assemblies.

Circuit Tests and Fault Isolation

The Main Electrical Schematic, Power Circuit Schematic, and Fuel Shut-off Circuit Schematic work with harness legends and Component Location views. Diagnostic tables specify test conditions, normal readings, and follow-up checks when results differ.

The Time Delay Control Module logic table links seat, PTO, and transmission-neutral inputs to starting and fuel shut-off operation. This provides a basis for tracing an interlock fault rather than replacing switches or the module without testing. Starter repair extends to brush-holder, armature, field-coil, and gear-train inspection.

Injection, Cooling and Charging Specification Preview

For the Yanmar engine, the static injection-pump timing specification is 12 ± 1° BTDC. Injection-nozzle opening pressure is specified at 19,600 kPa, with a +1,000/−0 kPa tolerance, alongside leakage and spray-pattern tests.

Cooling-system capacity is listed as 5.8 L. The electrical specifications identify a 20-amp alternator, supported by separate unregulated-output and regulated charging tests.
