2012–2016 Kawasaki Z800 / Z800 ABS OEM Service Manual (P/N 99924-1463-01)

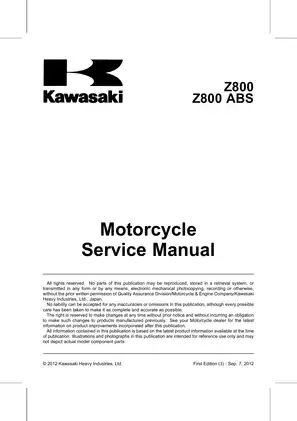

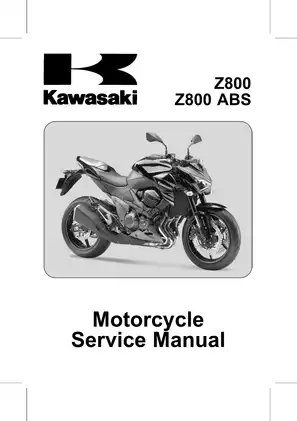

This factory service manual for the 2012–2016 Kawasaki Z800 / Z800 ABS covers the ZR800A, ZR800B, ZR800C, and ZR800D variants. P/N 99924-1463-01, First Edition (3), September 7, 2012.

• Engine repair: Removal and internal repair of the liquid-cooled DOHC engine, including cylinder-head service, camshaft timing, piston inspection, and crankshaft bearing selection.

• Clutch and transmission: Clutch inspection and assembly adjustment, crankcase separation, transmission-shaft disassembly, shift-drum service, and starter motor clutch repair.

• Fuel injection: DFI self-diagnosis, sensor tests, fuel-pressure checks, throttle-body synchronization, and subthrottle valve actuator inspection.

• Cooling and lubrication: Water-pump seal replacement, thermostat and radiator checks, oil-pump service, and oil-pressure measurement.

• Brakes and ABS: Caliper and master-cylinder service, brake-line bleeding, ABS fault diagnosis, hydraulic-unit replacement, and wheel rotation sensor inspection.

• Chassis and suspension: Front fork oil changes and disassembly, rear shock inspection, steering bearings, wheel and tire service, and final-drive checks.

• Electrical systems: Charging and ignition tests, relay-box diode checks, starter-motor service, immobilizer key registration, and model-specific wiring diagrams.

Written primarily for trained mechanics in an equipped shop, the manual also supports owners doing basic maintenance and repair who understand mechanical principles, tools, and workshop procedures.

DFI Diagnosis and Immobilizer Registration

Sensor resistance and voltage checks are paired with ECU terminal information and the DFI System Wiring Diagram, helping distinguish wiring faults from component failures before parts are replaced. Exhaust butterfly valve actuator diagnosis and cable adjustment apply to ZR800A/B models.

The immobilizer chapter includes the Spare Ignition Key Registration Flow Chart and identifies Key Registration Unit 57001-1582 and Key Registration Adapter 57001-1746. Separate procedures cover ignition-switch replacement, ECU replacement, and lost-key cases; loss of all registered keys requires ECU replacement.

The manual restricts adjustment or disassembly of the factory-set throttle sensors and subthrottle valve actuator. Disturbed settings can require throttle-body assembly replacement.

Engine, Cooling, and Drivetrain Procedures

Valve-clearance adjustment charts, valve-seat repair, piston-ring inspection, and crankshaft bearing-selection tables support internal engine work. The camshaft-chain tensioner section warns that incorrect handling can damage the tensioner, chain, or valves.

The Coolant Flow Chart and Engine Oil Flow Chart accompany water-pump and lubrication-system service. Transmission instructions cover shaft assembly, shift forks, and the positive neutral finder; the Periodic Maintenance Chart organizes recurring service.

ABS, Suspension, and Variant Differences

The ABS Diagnosis Flow Chart and service-code tests cover wheel sensors and hydraulic-unit faults. The ABS hydraulic unit is covered for inspection and replacement; the manual expressly prohibits internal disassembly and repair.

Fork oil-change procedures distinguish ZR800A/B from ZR800C/D and identify right- and left-leg work. Rear shock adjustment also varies by group, while wheel-bearing, steering-stem, swingarm, and chain-service procedures address chassis wear.

The Electrical System chapter provides separate ZR800A/B wiring diagrams with and without the GPS unit, plus ZR800C and ZR800D diagrams. The appendix illustrates cable, wire, and hose routing; frame inspection and bodywork removal are covered separately.

Follow the manual's safety precautions for brake work and pressurized fuel-system service.

Examples of Valve, Torque, and Charging Specifications

These examples are a small selection of the manual's service specifications.

Valve-clearance data lists an intake range of 0.15–0.24 mm with the engine cold. The fastener tables specify 30 N·m for the engine oil drain bolt and 108 N·m for the rear axle nut.

The three-phase AC alternator's rated output is 30.1 A at 14.0 V and 5,000 rpm; the electrical chapter separately provides charging-system tests.

PDF Navigation and Included Pages

Search and diagram detail: Service text is searchable, and embedded bookmarks link to chapters and procedures. Labels within image-based wiring diagrams are not searchable; small wire-color codes and connector labels require zooming.

One printable English-language PDF contains 713 pages: eight preliminary pages, 704 pages across 17 chapters (including the appendix), and one closing Model Application page. The total already includes the cover, front matter, and seven blank pages.
