Honda VFR1200F Sport-Touring In-Depth Service Manual (2010) – 592 Pages | OEM Specs

Honda VFR1200F Service Manual

Maximizing the operational uptime of the VFR1200F requires the precise engineering data originally established by Honda’s factory teams to maintain the structural integrity of the Unicam engine. Utilizing this OEM-grade documentation ensures that every service interval adheres to safety-critical tolerances, preventing the premature wear of the sophisticated dual-clutch or manual transmission systems. By following these factory-standard procedures, technicians eliminate guesswork and preserve the performance benchmarks that define this sport-touring flagship.

Application Spectrum and Model Scope

This technical guide covers the global release of the Honda VFR1200F starting with the 2010 model year. It encompasses both the standard manual transmission variants and the advanced Dual Clutch Transmission (DCT) versions, providing specific diagnostic trees for each drivetrain configuration regardless of market-specific VIN prefixes.

Precision Maintenance for Asset Preservation

• Preventative Component Longevity: Precise valve clearance specifications (Intake 0.16mm / Exhaust 0.30mm) prevent thermal stress and seat erosion over high-mileage tours.
• Electrical System Integrity: Detailed wiring diagrams for the Throttle-By-Wire (TBW) system allow for rapid troubleshooting of sensor-related limp modes.
• Structural Safety Assurance: Critical torque values for the single-sided swingarm and shaft-drive assembly ensure chassis stability under extreme cornering loads.

Essential Document Specifications

• Format: High-Resolution PDF
• Page Count: 592 Pages
• Language: US English
• Print Status: Official Shop Standard

Advanced Diagnostics for the Unicam V4 Powerplant

The manual features comprehensive diagnostic flowcharts specifically designed for the VFR1200F's unique 76-degree V4 architecture. Technicians can execute step-by-step continuity tests on the PGM-FI system and the TBW relay logic to isolate intermittent electronic faults that standard OBD readers might overlook.

High-Fidelity Schematics and Zoom Capability

Every vector-based illustration is rendered for maximum clarity, allowing for 400% zoom without pixelation. This level of detail is vital when identifying small-gauge wire colors in the main harness or inspecting the intricate hydraulic pathways of the combined braking system (C-ABS) and the shaft drive gears.

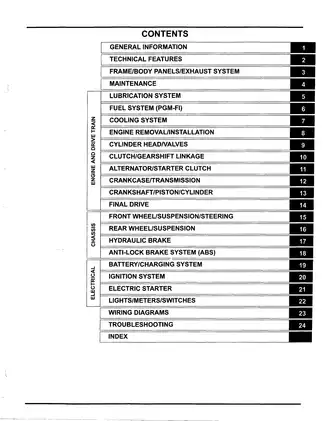

Comprehensive Service Roadmap

• General Information & Technical Features
• Maintenance Schedules & Pre-Ride Inspections
• Fuel System (PGM-FI) & Throttle-By-Wire
• Cooling System & Lubrication Pathways
• Cylinder Head, Valve Train, and Clutch Assembly
• Dual Clutch Transmission (DCT) Specialized Service
• Final Drive Shaft & Rear Wheel Hub
• Chassis, Suspension, and C-ABS Braking Logic
• Electrical Systems & Full-Color Wiring Diagrams

Critical Benchmarks for Mechanical Longevity

FAQ

Does this manual cover both the standard and Dual Clutch Transmission (DCT) versions of the VFR1200F? Yes, this technical guide provides comprehensive coverage for all 2010 VFR1200F variants, including specific diagnostic routines for the TBW Relay and the complex DCT shifting logic. By following the factory-prescribed voltage tests for the electronic actuators, owners can ensure seamless gear transitions and prevent damage to the high-precision internal clutch packs.

What is the specific valve clearance requirement for the Unicam V4 engine? For optimal thermal management and power delivery, the intake valves must be set to 0.16 mm (± 0.03 mm) and the exhaust valves to 0.30 mm (± 0.02 mm) at the valve side while the engine is cold. Maintaining these exact tolerances is critical to prevent valve seat recession and ensure the long-term integrity of the Unicam head architecture during high-speed touring.

Can I troubleshoot PGM-FI fuel injection issues and sensor failures with this guide? The manual includes a dedicated section for the PGM-FI system, detailing fuel pressure requirements of 343 kPa (50 psi) and specific resistance values for the Map and AP sensor units. Having access to these precise electrical benchmarks allows technicians to isolate faulty sensors quickly, avoiding expensive "parts-cannon" repairs and restoring factory fuel efficiency.

Does the documentation include specific procedures for the single-sided swingarm and shaft drive? This guide covers the entire final drive assembly, including the critical 108 N·m torque specification for the rear wheel nuts and the 200 cm³ gear oil capacity for the offset-pivot swingarm. Adhering to these mechanical standards is essential for maintaining the stability of the Pro-Arm rear suspension and preventing premature wear of the internal hypoid gears.

Are the electrical schematics high-resolution enough for detailed wiring repairs? Every wiring diagram and system flow pattern is rendered in high-fidelity vector format, allowing you to zoom in on specific circuits like the combined ABS (C-ABS) or the ignition system timing (8.4° BTDC at idle) without losing clarity. This level of detail ensures you can accurately identify wire colors and pin-outs on the shop floor, significantly reducing the risk of short circuits during electrical troubleshooting.
