Yamaha FZ150i V-Ixion 2007–2013 Factory Service Manual (P/N 29B-F8197-E0)

Yamaha’s factory service manual for the FZ150i V-Ixion (model 29B1), P/N 29B-F8197-E0, covers scheduled maintenance, diagnosis, and repair.

Two PDF Copies: Text Search and Wiring Detail

Search and diagram readability: OCR.pdf supports text search across the service chapters, with limited search on diagram pages. Both copies use the printed contents for navigation and lack embedded bookmarks. The overall wiring diagram is easier to read when zoomed in, but some individual circuit diagrams remain hard to read, especially in OCR.pdf. The cooling-fan circuit key on PDF p. 276 is readable in the non-OCR copy with a compatible viewer. That page is blank in OCR.pdf.

The ZIP contains two printable English-language PDFs of the same 328-page manual. Each file’s page count includes the cover, two blank pages from the original, and the overall wiring diagram and its legend.

Engine Overhaul, FI Diagnosis, and Chassis Service

These selected workshop procedures cover major repairs and diagnostic tasks. The manual also includes headlight aim and throttle-cable free-play adjustments.

• Engine repair: Step-by-step procedures cover engine removal and installation, cylinder-head service, crankcase separation, crankshaft inspection, and reassembly.
• Transmission and clutch: Gear-train disassembly, shift-fork and shift-drum inspection, wet multiplate clutch checks, and clutch release adjustment.
• Fuel injection: ECU fault-code diagnosis, sensor and actuator checks, repair verification, and procedures for reviewing and clearing fault memory.
• Brakes: Front caliper and master-cylinder overhaul, hydraulic bleeding, and rear drum-brake service covering the shoes, camshaft, and pedal adjustment.
• Chassis: Fork disassembly and seal replacement, steering-head bearing service, swingarm pivot inspection, and rear-suspension linkage service.
• Cooling system: Radiator-cap pressure testing, thermostat checks, and water-pump disassembly and seal replacement.
• Electrical troubleshooting: Ignition, charging, electric-start, and radiator-fan circuit diagnosis, supported by wiring diagrams and component tests.

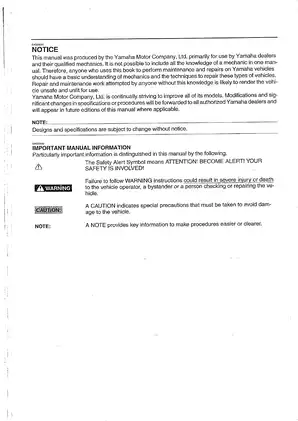

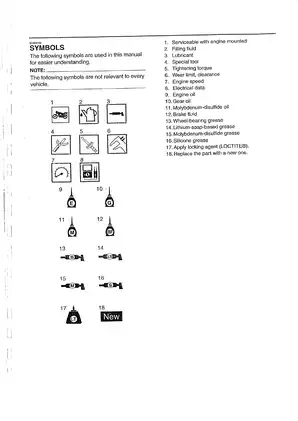

Yamaha wrote this manual primarily for its dealers and qualified mechanics. It assumes familiarity with motorcycle maintenance and repair.

Routine Service and Internal Engine Work

The maintenance chapter covers valve-clearance adjustment, compression testing, ignition-timing checks, idle adjustment, and final-drive chain slack and alignment. Engine and chassis torque tables accompany fluid capacities, chassis dimensions, and inspection limits for cylinder-head warpage and cylinder and piston wear.

Top-end procedures cover valve guides and seats, camshaft and rocker-arm inspection, and cam timing. Bottom-end work includes the balancer gears, oil pump, and transmission shafts. Clutch assembly distinguishes the friction plates and damper components. The crankshaft procedure specifies separating tool 90890-01135 and warns that pressure from the tool can damage the crankshaft end.

Fuel-Pressure Testing and Throttle-Body Service

Yamaha’s FI diagnostic tool 90890-03182 supports sensor readouts, actuator checks, and CO adjustment. The fault tables link ECU codes to checks such as crankshaft position sensor and lean-angle sensor tests. Separate procedures cover the injector and the FID fast idle solenoid.

Fuel-pressure testing specifies gauge 90890-03153 and adapter 90890-03186. The Mikuni AC28 throttle-body procedures cover removal, inspection, passage cleaning, and sensor tests. Yamaha specifies that the sensor assembly stays attached to the throttle body. Air Induction System procedures cover the reed valve, air cut-off valve, hoses, and resonator.

Safety note: Follow Yamaha’s fuel-handling and electrical-disconnection precautions when servicing fuel injection or pressurized fuel lines.

Wheel, Steering, and Electrical References

Wheel service covers bearings and seals, axle and rim checks, and rear-hub cush-drive inspection. Incorrect bearing-race installation can damage the steering-head pipe. Exploded assembly views are paired with removal and disassembly job charts and installation notes.

The Starting Circuit Cut-off System Operation diagram and troubleshooting chart help distinguish a starter motor fault from a neutral or clutch interlock fault. The manual also covers starter-motor commutator, armature, and brush checks, plus separate starter-clutch and kickstarter service.

The Wiring Diagram pairs component numbers with a wire-color key. The Engine Oil Lubrication Chart, Cooling System Diagrams, and Cable Routing drawings show oil flow, coolant connections, and harness, hose, and clamp routing.

Valve Clearance and Front Disc Wear Examples

For valve checks on the cold engine at room temperature, Yamaha specifies 0.10–0.14 mm at the intake and 0.20–0.24 mm at the exhaust, measured at top dead center on the compression stroke.

The front brake inspection section lists a minimum disc thickness of 3.5 mm and covers disc runout as a separate check.
