2006 Yamaha FJR1300A(V) Factory Service Manual (P/N 3P6-28197-E0)

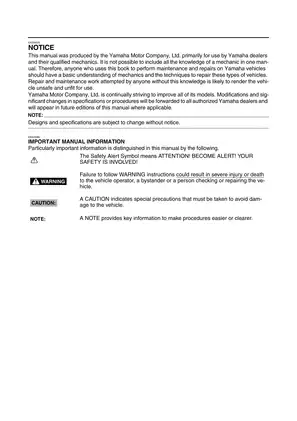

This 586-page PDF contains Yamaha's English-language, first-edition January 2006 service manual for the 2006 FJR1300A(V), identified on the cover by document code 3P6-28197-E0. Coverage is market-code specific: 3P61 for Europe excluding (B) and (F), plus (ZA); 3P62 for (B) and (F); and 3P63 for (AUS). The specification tables distinguish the FUA0008 Mitsubishi ECU used for 3P61 and 3P63 destinations from the FUA0009 unit listed for 3P62. Yamaha produced the book primarily for dealers and qualified mechanics; it is suited to experienced owners only when they already understand motorcycle mechanical and electrical service and have the required measuring and specialty tools.

• The engine repair chapter covers removal and installation, camshaft and timing-chain work, cylinder-head and valve service, crankcase separation, connecting-rod and piston inspection, crankshaft service, balancer setup, and five-speed transmission repair.
• Clutch and driveline procedures address the hydraulic master and release cylinders, clutch inspection and assembly, middle-gear disassembly and alignment, and shaft-drive final-gear backlash, bearing work, and pinion-to-ring-gear alignment.
• Chassis repair includes wheel and wheel-sensor service, static balancing, brake calipers and master cylinders, front-fork overhaul, steering-head service, rear shock linkage, and swingarm removal and inspection.
• The unified brake and ABS sections include hydraulic-unit removal and checks, metering- and proportioning-valve inspection, ABS-specific bleeding, hydraulic-unit operation tests, a trial run, warning-light diagnosis, malfunction-code retrieval and deletion, and final checks.
• Fuel-system procedures cover the tank and pump, injectors, fuel-pressure testing, throttle-body inspection and synchronization, throttle-position sensor adjustment, the air-induction system, and ECU diagnostic mode with fault-specific test charts.
• Electrical fault tracing uses dedicated circuit diagrams for ignition, starting, charging, lighting, signaling, cooling fan, fuel pump, windshield drive, accessory box, immobilizer, and ABS systems, backed by relay, sensor, actuator, and connector tests.

Factory Procedures Beyond Basic Maintenance

Routine service goes well beyond a maintenance chart. Factory procedures cover valve-clearance adjustment, exhaust-gas adjustment, ignition-timing and compression checks, engine-oil pressure measurement, hydraulic-clutch bleeding, coolant replacement, steering-head adjustment, suspension setup, battery charging, fuse checks, and headlight aiming. The cooling chapter takes the radiator, oil cooler, thermostat, and water pump through inspection and repair, including pressure testing and water-pump seal replacement.

The specification sections provide component-specific torque tables, angle-tightening sequences, lubricant and sealant callouts, fluid capacities, wear limits, running clearances, pressure-test data, and electrical test values. These are tied to the individual repair procedures instead of presented as isolated numbers.

Diagrams, Diagnostic Charts, and Special Tools

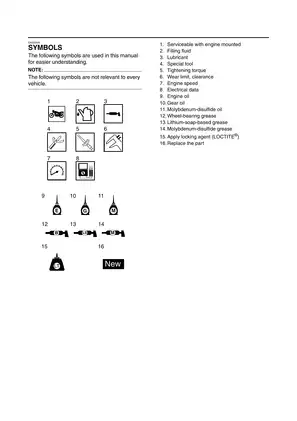

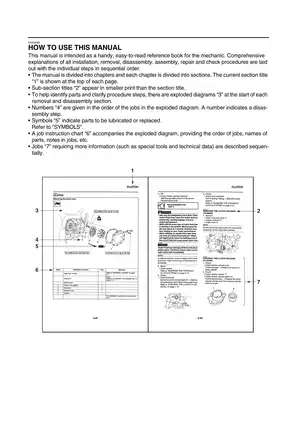

Exploded assembly views and job charts accompany the removal and disassembly sections. Named reference material includes the Engine Oil Lubrication Chart, Cooling System Diagrams, ABS Components Chart, ABS Coupler Location Chart, fuel-injection circuit diagrams, and the detailed Cable Routing drawings. The immobilizer section also covers replacement-part and key-code registration requirements, while the fuel-injection and ABS chapters provide self-diagnostic tables and fault-isolation paths.

The special-tool index gives both 90890-series numbers and the applicable YM/YU equivalents. Examples include test coupler adapter 90890-03149, vacuum gauge 90890-03094 / YU-44456, gear-lash measurement tool 90890-01467 / YM-01467, and fuel-pressure adapter 90890-03176 / YM-03176.

Scope and Manual-Specific Repair Cautions

This manual covers the conventional hydraulic-clutch, foot-shifted five-speed FJR1300A(V); YCC-S service procedures are not included. It also flags two easy ways to turn a repair into component damage. The final-drive stopper bolt and bearing retainer use left-hand threads, so treating them as standard right-hand fasteners can damage the threaded parts. The selected connecting-rod and crankshaft journal bearings must remain in their original positions to preserve the intended oil clearances and prevent engine damage.

Brake and ABS work must follow the factory hose routing, bleed sequence, hydraulic-unit tests, and final operational checks. Incorrect service in these systems can leave the motorcycle unsafe to ride.
