Yamaha Grizzly 450 4WD 2009–2010 Manual Set (P/N LIT-11616-KD-48)
742 Pages • ZIP Download: 2 Printable PDFs (English)
Yamaha Models Covered & Key Technical Specifications
Models: Grizzly 450; YFM450FAR, YFM450FAS, YFM450FAT, YFM45FGX, YFM45FGY (service publications)
Model Years: 2009–2010
Models & Model Codes:
Grizzly 450 — YFM45FGZ, YFM45FGHZ (owner’s manual)
YFM450FAR — 5ND1, 5ND5 (base service manual)
YFM450FAS — 5ND6 (service supplement)
YFM450FAT — 1D91, 1D95 (USA); 1D92, 1D96 (Canada); 1D93, 1D97 (Europe); 1D94 (Oceania) (service supplement)
YFM45FGX — 17S1, 17S5 (USA, panel wheels); 17S2, 17S6 (Canada, panel wheels); 17S3, 17S7 (Europe, panel wheels); 17S4 (Oceania); 17SA (USA, cast wheels); 17SB (Canada, cast wheels); 17SC (Europe, cast wheels) (service supplement)
YFM45FGY — 37S1, 37S5 (service supplement)
-
Engine oil capacity (without oil filter replacement): 2.30 L (2.43 US qt, 2.02 Imp.qt)
-
Tire pressure (Recommended): 25.0 kPa (3.6 psi) front and rear
-
Tire pressure (Minimum): 22.0 kPa (3.2 psi) front and rear
-
Spark plug gap: 0.6–0.7 mm (0.024–0.028 in)
-
Rear brake lever free play: 8.0–10.5 mm (0.31–0.41 in)
-
Throttle lever free play: 3.0–5.0 mm (0.12–0.20 in)
-
Spark plug torque: 17.5 Nm (12.7 ft-lbf)
-
Carrier bolt (top) torque: 34 Nm (24 ft-lbf)
-
Total vehicle weight (with oil and fuel): 286.0 kg (631 lb)
-
Transmission (YFM45FGZ, YFM45FGHZ): V-belt automatic with shaft drive and a wet, centrifugal automatic clutch
Yamaha Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

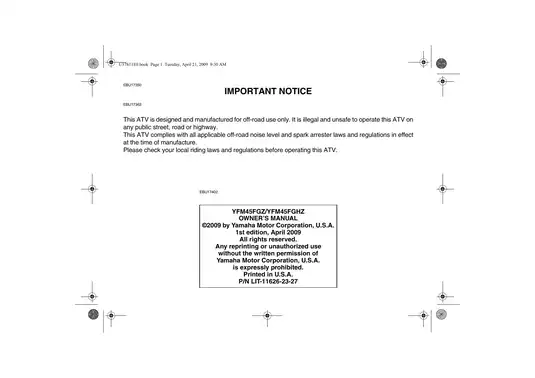

| Yamaha Grizzly 450 owner’s manual for YFM45FGZ and YFM45FGHZ. First edition, April 2009. P/N LIT-11626-23-27; Yamaha No. 37S-F8199-11 | 170 |
| YFM450FAR base service manual. P/N LIT-11616-16-01; Manual No. 5ND-F8197-10. Included in service package P/N LIT-11616-KD-48 | 375 |
| YFM450FAS supplementary service manual. P/N LIT-11616-17-25; Manual No. 5ND-F8197-11 | 24 |
| YFM450FAT supplementary service manual. P/N LIT-11616-18-35; Manual No. 5ND-F8197-12 | 70 |
| YFM45FGX supplementary service manual. P/N LIT-11616-21-46; Manual No. 5ND-F8197-13 | 81 |
| YFM45FGY 2009 supplementary service manual. P/N LIT-11616-22-47; Manual No. 5ND-F8197-14 | 19 |
The service supplements are used with the base manual and preceding supplements as directed in their forewords. The owner’s manual covers operation and routine upkeep; internal overhaul procedures are contained in the service PDF.
PDF Search, Bookmarks, and Page Breakdown
Text search and diagram detail: Both PDFs have searchable text and embedded bookmarks. Some supplementary pages in the owner’s manual are not searchable. Small component numbers, connector markings, and wire-color codes on the service wiring sheets require zooming.
The ZIP download contains two printable English PDFs totaling 742 pages. The 572-page service PDF contains the five workshop publications listed above, including their associated wiring sheets, plus one package cover and two blank separator pages. The owner’s manual’s 170-page total includes three promotional pages, two blank pages, and a two-page registration card.
Engine Overhaul, Shaft Drive, and ATV Operation
This selected content overview highlights the main workshop and operating subjects. Other included topics cover spark-arrester cleaning and preparation for storage.
-
Engine repair: Step-by-step procedures for engine removal and installation, cylinder-head and valve service, piston inspection, crankcase separation, crankshaft work, oil-pump service, and transmission assembly.
-
V-belt and shaft drive: Primary and secondary sheave disassembly, clutch service, middle-gear shimming, differential diagnosis, CV-joint work, and final-drive pinion positioning and backlash adjustment.
-
Brake service: Master-cylinder and caliper disassembly, hydraulic bleeding, brake inspection, and supplement-specific rear brake friction-plate procedures.
-
Steering and suspension: Wheel-hub and ball-joint service, steering-stem and knuckle work, front arms, rear swingarm or rear-knuckle assemblies, shock absorbers, and stabilizer components.
-
Electrical diagnosis: Circuit diagrams and test charts for ignition, starting, charging, lighting, signals, cooling-fan control, and the 2WD/4WD selecting system.
-
Fuel and cooling systems: Carburetor disassembly and adjustment, radiator inspection, thermostat testing, water-pump repair, and coolant-system service.
-
Owner operation and maintenance: On-Command 2WD/4WD and differential-lock controls, instruments, pre-operation checks, loading and tire guidance, riding techniques, maintenance charts, fluid service, and troubleshooting.
Yamaha wrote the service material primarily for dealers and qualified mechanics, assuming a basic understanding of mechanical principles and machine-repair procedures. Experienced owners undertaking workshop repairs need equivalent knowledge and the equipment required for the work.
Workshop Procedures and Special Tools
Removal and disassembly sections pair exploded assembly views with numbered job charts, inspection criteria, and installation notes. Reference material includes tightening-torque tables, lubrication points, fluid specifications, wear limits, clearances, cable-routing drawings, and electrical test values.
Tool references include the gear-lash measurement tool YM-01467 / 90890-01467 and sheave spring compressor YM-04134 / 90890-04134. Engine and chassis procedures also identify the crankcase separating tool YU-01135-A / 90890-01135, ball-joint remover/installer set YM-01474 / 90890-01474, and pocket tester YU-03112 / 90890-03112. These references help establish the tooling needed before disassembly begins.
Carburetor and Cooling-System Repair
The Mikuni BSR33 carburetor section covers float, needle-valve, jet, and diaphragm inspection, followed by reassembly and fuel-level adjustment. It distinguishes damaged parts from blocked passages and provides inspection and adjustment specifications.
Cooling-system procedures address radiator condition, thermostat opening tests, water-pump disassembly, impeller inspection, and seal installation. Coolant-flow and oil-flow diagrams show the circulation paths alongside the component procedures.
Chassis Differences and Repair Cautions
Rear brake and suspension configurations: The base manual includes a rear disc brake and swingarm. Later supplements document rear-knuckle and stabilizer assemblies, while the YFM45FGX material covers a wet multiple-plate rear brake within the final gear case. Matching these sections to the vehicle’s configuration matters before selecting a procedure.
Drivetrain assembly: Yamaha warns that insufficient gear lash can destroy gear teeth. The shimming, pinion-positioning, and backlash material is therefore directly relevant when rebuilding the differential or final drive.
Brake hydraulics: Incorrect brake fluid can deteriorate rubber seals, while mixed fluids can impair braking performance. Brake-hydraulic work, drivetrain disassembly, and engine teardown require secure support of the ATV and close attention to the factory safety notes and inspection limits.
Electrical Diagrams and Fault Tracing
The ignition-system and 2WD/4WD selecting-system circuit diagrams support component and wiring checks. Front differential and final-drive exploded views show the mechanical assemblies involved in driveline diagnosis.
The YFM45FGY 2009 wiring diagram is accompanied by its component and color-code legend. Earlier model-specific wiring sheets remain part of the service package because the supplements rely on the preceding workshop publications.
Examples of Differential and Final-Drive Settings
The YFM45FGX supplement specifies front differential gear lash of 0.05–0.25 mm. Its rear final-drive section specifies final gear lash of 0.1–0.2 mm and provides the corresponding shim-selection information. These are separate checks for the front differential and rear final-drive assembly.
