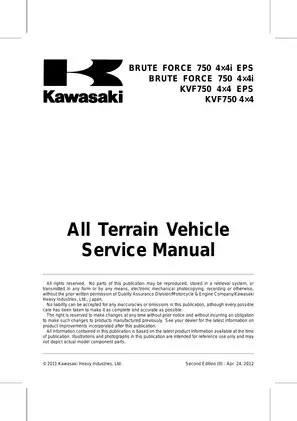

Kawasaki Brute Force 750 4x4i ATV Service Manual, 2012–2013 (P/N 99924-1446-02)

Kawasaki’s factory service manual covers the 2012–2013 Brute Force 750 4x4i and KVF750 4x4 ATVs with electric power steering (EPS) or conventional steering. It covers 2012 models KVF750GC, HC, JC, and LC and 2013 models KVF750GD, HD, JD, and LD. P/N 99924-1446-02, Second Edition (0), April 24, 2012.

Search, Bookmarks, and Wiring Diagrams

Finding procedures and tracing wires. Search the manual text or use the clickable Quick Reference Guide, chapter contents, and PDF bookmarks. The small pin numbers and wire color codes are part of the diagram images and are easier to read when zoomed in.

The ZIP contains one printable PDF with 674 pages. That total includes 10 pages of front matter, the 35-page appendix, the back cover with the model application table, and eight blank or intentionally blank pages within or between chapters.

Fuel Injection, CVT, and Chassis Service

The bullets show a selection of workshop procedures. The cooling chapter also covers water pump mechanical seal replacement and radiator cap pressure testing.

• Digital Fuel Injection (DFI) and ECU diagnosis — Meter-based fault code reading, sensor and injector tests, fuel pump and relay checks, ignition coil tests, and ECU power supply and communication checks.

• Engine and lubrication — Compression and oil pressure testing, camshaft and timing chain service, Kawasaki Automatic Compression Release (KACR), valve guide and seat repair, and piston and cylinder inspection. Includes engine removal, crankcase disassembly, and connecting rod bearing selection.

• CVT and transmission — Belt inspection and adjustment, drive and driven pulley overhaul, spider shoe clearance, engine brake lever checks, high-altitude settings, shift linkage service, transmission removal, and shift fork and gear inspection.

• Final drive — Output bevel gear service, propeller shaft and axle removal, front and rear final gear case overhaul, gear backlash adjustment, and variable differential and limited-slip clutch checks.

• Brakes, wheels, and suspension — Front hydraulic brake bleeding and caliper overhaul, internal wet rear brake service, wheel alignment, and service for hubs, shock absorbers, and suspension arms.

• Steering and electrical — Conventional steering service, EPS troubleshooting, alternator and regulator/rectifier tests, starter circuit checks, ignition peak-voltage tests, and lighting and radiator fan checks.

• Workshop references — Periodic maintenance chart, exploded views, cable, wire, and hose routing, coolant and engine oil flow charts, torque tables, capacities, clearances, wear limits, and electrical test specifications.

Kawasaki wrote this manual primarily for trained mechanics in properly equipped shops. Owners with basic mechanical skills and the proper tools can use it for basic maintenance and repairs.

DFI and EPS Fault Diagnosis

In DFI user mode, the engine warning light alerts the rider to a fault. Dealer mode displays active codes on the multifunction meter, and the ECU retains fault history for access with the Kawasaki Diagnostic System (KDS). The DFI System Troubleshooting Guide, Self-Diagnosis Flow Chart, and fail-safe tables connect symptoms and codes to the affected circuits.

The EPS chapter explains how to read and clear the steering warning light’s blink codes. Its diagnosis flow chart and continuity, torque sensor, motor, and power supply checks help distinguish an EPS unit fault from a wiring or ECU fault before parts are selected. The chapter also covers vehicle and engine speed inputs. Internal relay fault codes lead to replacement of the EPS ECU.

Drive Belt Warnings and 2WD/4WD Actuators

Multifunction meter bench checks cover the warning lights and indicators. The electrical chapter distinguishes a steady scheduled belt-check light from a blinking belt-failure warning and explains how to clear the stored belt-failure indication after inspection.

Alternating 2WD/4WD indicator patterns help identify whether the selectable drive actuator, the engine brake actuator, or both need diagnosis. The test paths cover the actuators, controller, speed sensor, shift switch, and forward/reverse detecting sensor.

Steering Variants and Production Changes

The G, H, and J models have EPS. H is the camouflage-finish version and J is the painted version of the G base model. The L models use conventional steering. All covered models have independent double-wishbone suspension front and rear, including independent rear suspension (IRS).

Separate wiring diagrams cover KVF750G/H/J and KVF750L. The manual identifies U.S., Canadian, Australian, European, and U.K. differences where applicable, including reverse light service for European and U.K. models. The model application table lists beginning frame numbers by model code.

Drive pulley cover adjustment changes at engine number VF750DE082074. The earlier procedure uses a cover selection chart. The later one specifies a different cover, bushing, bearing, collar, and shim and calls for a modification to the measuring tool. Exploded views and torque tables also flag early and late rear carrier hardware on C-suffix models.

Special Tools and Service Limits

Factory tool references include the Kawasaki Hand Tester 57001-1394, Needle Adapter Set 57001-1457, Drive Pulley Measurement Tool 57001-1498, and EPS Boss Nut Alignment Jig 57001-1761. The manual also identifies pulley holders, bearing drivers, compression test equipment, valve seat cutters, and final drive tools.

The throttle sensor and butterfly valve stop and adjustment screws are factory-set. Changing those settings can cause poor running and require throttle body replacement. Kawasaki treats the EPS motor and torque sensor as part of the factory-adjusted EPS unit and cautions against disassembly, impact, and exposure to water or mud.

Kawasaki lists spare parts in a separate parts catalog. Because the work includes fuel pressure testing, tests with the ATV raised, brake hydraulics, exposed CVT components, and battery and EPS circuits, use the specified shop setup and follow the manual’s safety instructions.

Fuel Pressure and Drive Belt Specifications Preview

The DFI fuel pressure test specifies 294 kPa (43 psi) at idle with a fully charged battery.

For drive belt wear inspection, the manual gives a standard belt width of 30.0–30.6 mm (1.18–1.20 in.) and a service limit of 28.6 mm (1.13 in.).
