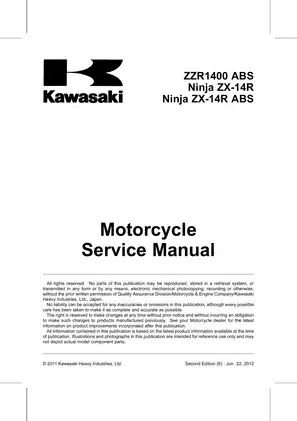

2011–2013 Kawasaki Ninja ZX-14R / ZZR1400 ABS Service Manual (P/N 99924-1450-02)

This Kawasaki factory service manual covers the 2012–2013 Ninja ZX-14R, Ninja ZX-14R ABS, and ZZR1400 ABS with the 1,441 cc engine. Publication P/N 99924-1450-02 is the Second Edition (6), dated June 22, 2012.

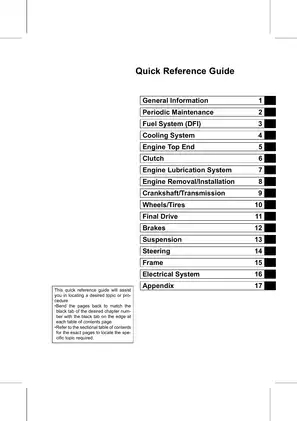

The 765-page PDF contains 17 chapters. Body text is searchable; many diagram and wiring labels are image-based and cannot be found through text search.

• Engine repair: Compression testing, engine removal and installation, cylinder-head disassembly, valve-seat repair, camshaft timing, crankcase separation, and crankshaft inspection.

• Clutch and transmission: Hydraulic clutch service, clutch pack inspection, spring plate free play adjustment, transmission disassembly, and shift mechanism inspection.

• DFI diagnostics: Fuel pressure and flow testing, injector checks, engine vacuum synchronization, sensor testing, and DFI and KTRC fault diagnosis.

• Cooling and lubrication: Cooling-system pressure testing and bleeding, thermostat checks, water-pump inspection, oil-pump service, and oil-pressure measurement.

• Brakes and chassis: ABS troubleshooting, caliper and master-cylinder repair, fork disassembly, steering bearing service, and drive-chain replacement.

• Electrical repair: Charging and ignition tests, starter-motor overhaul, meter and CAN communication diagnosis, wiring diagrams, and immobilizer procedures on equipped models.

Written primarily for trained mechanics in a properly equipped shop, the manual also provides basic maintenance and repair information for owners who understand mechanical fundamentals, tool use, and workshop procedures.

Model and Market Coverage

The model-application table identifies these starting frame numbers:

The square represents a digit that varies by motorcycle. These are beginning identifiers, not closed production ranges.

Market-specific ECU identification distinguishes immobilizer configurations. Wiring coverage separates ABS and non-ABS models and includes early/late Brazilian configurations with and without GPS. California and SEA-B1 evaporative-emissions coverage details the canister and ECU-controlled purge valve.

DFI and KTRC Fault Diagnosis

Some fuel-pump and injector faults can occur without a service code. Fuel-pressure, delivery-volume, and injector tests help narrow down a no-start or poor-running complaint when the warning system provides no clear lead.

The DFI System Wiring Diagram and ECU connector terminal views support circuit tracing. Diagnostic coverage distinguishes displayed faults from stored history accessible through the Kawasaki Diagnostic System (KDS). Fuel-pressure testing specifies Fuel Pressure Gauge Adapter 57001-1593.

Maintenance and Internal Engine Repair

The periodic maintenance schedule is backed by torque tables, valve-clearance and shim-selection data, fluid capacities, inspection tolerances, and wear limits. Exploded views identify component relationships and assembly requirements.

Internal engine coverage extends to valve-guide replacement, piston and cylinder inspection, color-coded crankshaft and connecting-rod bearing selection, and connecting-rod bolt-stretch measurement. Front and rear balancer adjustment is also documented.

The cam-chain section warns that rotating the crankshaft with the tensioner removed can disturb valve timing and damage the valves.

Hydraulic Clutch and Six-Speed Transmission

Clutch adjustment includes spring plate free play and clutch assembly length, with steel-plate selection explained. Transmission coverage reaches shaft reassembly, shift forks, gear dogs, and the positive neutral finder.

Cooling and Oil Circuits

The Coolant Flow Chart and Engine Oil Flow Chart show circuit relationships through the engine and oil cooler. Radiator-cap and thermostat tests accompany water-pump inspection. The water-pump procedure specifies body replacement for mechanical-seal leakage.

ABS, Suspension, and Chassis

The ABS System Wiring Diagram supports wheel-sensor, relay, and solenoid fault diagnosis. Conventional brake coverage includes caliper and master-cylinder seal replacement and hydraulic bleeding. ABS hydraulic-unit removal and replacement are covered; internal unit disassembly is excluded.

Suspension procedures address front-fork oil and seals, swingarm bearings, and Uni-Trak rocker-arm and tie-rod bearings. The Appendix adds cable, wire, and hose routing drawings for reassembly.

Electrical Testing and Immobilizer Service

Charging-system checks specify Kawasaki Hand Tester 57001-1394 for regulator/rectifier testing; the manual warns that a megohmmeter can damage the unit.

For immobilizer-equipped models, the Spare Ignition Key Registration Flow Chart accompanies key-registration procedures. Ignition-switch and ECU replacement receive separate coverage, with the relevant registration equipment identified.

Working on high-performance motorcycles involves inherent risks. Follow standard shop safety practices and the manual’s precautions for pressurized fuel, hot coolant, and brake service.

File Format and Readability

The total includes 10 front-matter pages, 696 pages in Chapters 1–16, the 58-page Appendix (Chapter 17), and one model-application/back-cover page. Blank and separator pages are included in those counts.

There are 849 embedded PDF bookmarks covering all 17 chapters and many individual procedures. Small wiring labels are best read at high zoom, with some visible raster pixelation.
