Yamaha Zuma 50 YW50FB Scooter Service Manual, 2011–2014 (P/N LIT-11616-25-31)

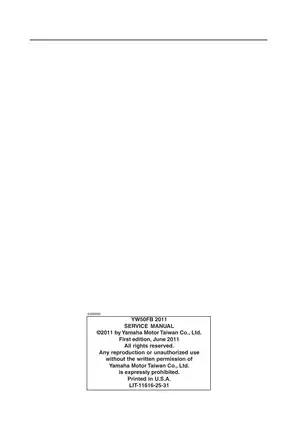

Yamaha’s 2011 YW50FB service manual for the Zuma 50 covers model codes 1CD1 (USA) and 1CD2 (Canada). This is the first edition, June 2011, P/N LIT-11616-25-31, with manual code 1CD-F8197-10 on the original cover.

Searchable PDF and Color Wiring Diagram

Text search, bookmarks, and diagram detail: Searchable text and chapter and section bookmarks are included, although the top-level contents bookmark is inactive. Small wire codes and connector labels in the chapter circuit diagrams require magnification. The final full-color wiring diagram also provides connector identification and a wire-color legend.

The ZIP contains one printable, 360-page PDF and a separate JPG cover image. The PDF page count includes the original front and rear covers and five preliminary pages.

Engine, CVT, Cooling, and FI Service

The following highlights are selected coverage, rather than a complete contents list. Other topics include headlight aiming and centerstand lubrication.

• Engine repair: Engine removal, cylinder-head service, camshaft and rocker-arm inspection, valve and guide work, piston and cylinder checks, and crankcase disassembly.

• V-belt drive and final transmission: Primary and secondary sheave service, clutch disassembly, belt and weight inspection, and final-drive gear and shaft checks.

• Brakes and chassis: Wheel service, front disc and rear drum brakes, hydraulic bleeding, master-cylinder and caliper overhaul, front-fork repair, and steering-head service.

• Cooling system: Radiator and cap testing, thermostat inspection, water-pump disassembly and seal replacement, coolant changes, and air bleeding.

• Fuel-injection diagnosis: ECU fault-code isolation, diagnostic-mode sensor and actuator checks, malfunction-history functions, fuel-pressure testing, and throttle-body inspection.

• Electrical troubleshooting: Ignition, starting, charging, lighting, and signaling checks, supported by circuit diagrams, connector views, and the full YW50FB wiring diagram.

Written primarily for Yamaha dealers and qualified mechanics, this manual assumes a basic understanding of mechanics and vehicle-repair techniques, along with the tools needed for the work.

Maintenance, Valve Adjustment, and Engine Repair

Separate emission-control and general maintenance charts organize scheduled service. Access procedures cover the seat and trunk, side covers, footrest board, and both leg shields.

Maintenance instructions address valve-clearance measurement and adjustment with valve-pad selection charts, idle-speed and throttle-cable checks, ignition timing, compression testing, and lubrication-system checks. Engine and final-transmission oil service and MF-battery testing and charging are also covered.

Internal engine repair reaches valve-guide removal, installation, and reaming; valve-seat contact inspection and lapping; cam timing and tensioner setup; and piston-ring inspection. Crankshaft and connecting-rod checks accompany crankcase separation, sealing, and reassembly.

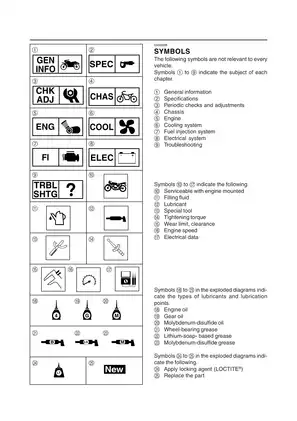

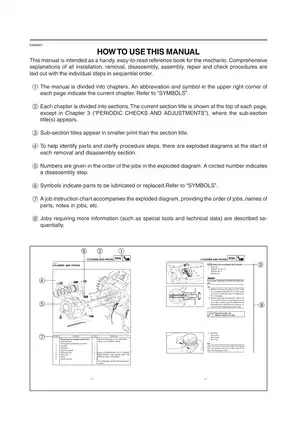

Step-by-step procedures are paired with exploded views and sequential job charts. Component-specific torque tables, fluid capacities, lubrication points, pressure-test data, electrical values, wear limits, and clearance specifications support inspection and reassembly.

The cylinder-head section warns that crankshaft movement during camshaft installation can cause damage or incorrect valve timing.

CVT, Final Drive, and Chassis Detail

The drive sections distinguish primary weights and sliders from the secondary-sheave torque cam and guide pins. Belt orientation and pulley installation are documented, together with clutch-shoe and spring inspection, starter-clutch work, AC magneto removal, and oil-pump inspection.

Final-transmission coverage includes gear condition, engagement, and shaft-runout checks. Chassis procedures add wheel-bearing replacement, brake-disc runout measurement, static wheel balancing, rear brake-shoe service, and steering-bearing inspection.

Front-fork repair includes oil seals and damper rods. Handlebar service and rear-shock removal, inspection, and replacement are covered separately.

The front-brake procedure explains that solvent exposure can swell and distort the caliper piston seal.

Cooling-System Testing and Water-Pump Repair

Cooling coverage goes beyond coolant replacement. The radiator section includes cap-opening-pressure and system-leak tests, while thermostat inspection relates valve movement to water temperature.

Water-pump procedures cover the impeller shaft, bearing, seal, and housing, with installation views showing how the pump drive engages the camshaft sprocket bolt.

FI Fault Isolation and Electrical Diagrams

The FI chapter pairs the ECU self-diagnostic system with fault-code tables, selected diagnostic functions from D01 through D70, and code-specific inspection paths. Malfunction-history display and erasure are included.

Sensor checks address crankshaft position, intake pressure and temperature, throttle position, coolant temperature, lean angle, and vehicle speed. Separate diagnostic paths cover the ignition coil, injector, fuel pump, system voltage, EEPROM, and ISC idle-control circuits.

These inspection paths help distinguish wiring and connector faults from component failures before replacement decisions are made. The fuel pump is non-disassemblable; faults in the MAQS sensor module or ISC valve lead to throttle-body replacement rather than separate internal repair.

The air-induction section covers the air cut-off valve, reed valve, hoses, and AI filter case. Electrical fault trees address no-spark, no-crank, charging, lighting, signaling, horn, fuel-gauge, and coolant-indicator complaints; starter-motor inspection and reassembly are also included.

Diagram examples include the full YW50FB wiring diagram, fuel-injection wiring diagram, ignition and electric-starting circuit diagrams, cooling-system hose layouts, and cable-routing views. Routing illustrations identify harness, brake-hose, throttle-cable, rear-brake-cable, injector, pump, sensor, and connector placement.

Diagnostic Equipment and Workshop Precautions

The tool index identifies the FI diagnostic tool 90890-03182 / YU-03182 and fuel-pressure gauge 90890-03153 / YU-03153 with adapter 90890-03181.

Cooling tests use radiator-cap tester 90890-01325 / YU-24460-01 with adapter 90890-01352 / YU-33984. Clutch service calls for holder 90890-01337 / YM-33285 / YM-33285-6.

Hot, pressurized cooling-system work and service involving fuel, brakes, batteries, or rotating drive components require proper workshop support, protective equipment, and safe handling.

A Preview of Valve-Clearance and Belt-Wear Data

For cold-engine valve checks, the manual specifies intake clearance of 0.10–0.16 mm and exhaust clearance of 0.18–0.24 mm. The adjustment section includes valve-pad selection charts.

The V-belt inspection section gives a standard width of 17.9 mm and a wear limit of 16.1 mm. These dimensions accompany checks for cracks, damage, and contamination.
