Yamaha YZF-R1 2012–2013 Service & Owner's Manual Set (P/N LIT-11616-25-45)

666 Pages • ZIP Download: 2 Printable PDFs (English)

4.5starstarstarstarstar_half(4)
$16.53 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Model: YZFR1B(C)

Sub-models / Variants: YZFR1B (USA: 1KBB, 1KBE, 1KBL); YZFR1BC (California variant: 1KBC, 1KBF, 1KBM)

Trade Names: YZF-R1

Model Years: 2012–2013


  • Engine displacement: 998 cm³

  • Curb weight: 206 kg

  • Vehicle length: 2070 mm

  • Sidestand bracket bolt torque: 63 Nm

  • Battery capacity: 12 V, 8.6 Ah

  • System voltage: 12 V

  • Spark plug: NGK/LMAR9E-J

  • Spark plug gap: 0.6–0.7 mm

  • Engine idling speed: 1150–1250 r/min

  • Fuel tank capacity: 18.0 L

  • Coolant capacity: 2.73 L

Yamaha Manual Features & Selected Content Preview

Publication Pages
2012 Yamaha YZFR1B(C) Service Manual — P/N LIT-11616-25-45; first edition, August 2011; U.S. and California versions 544

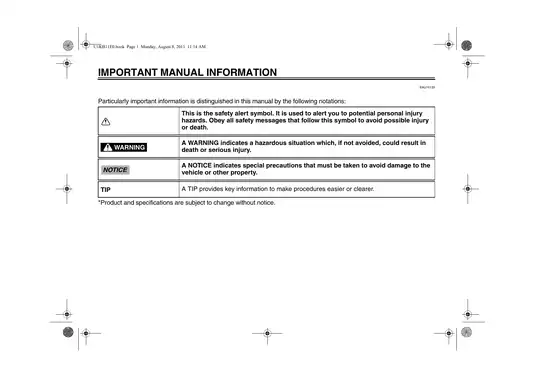

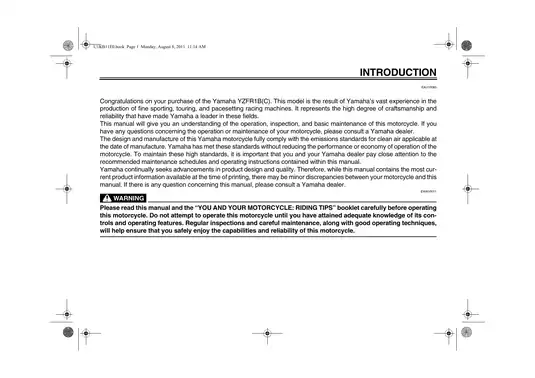

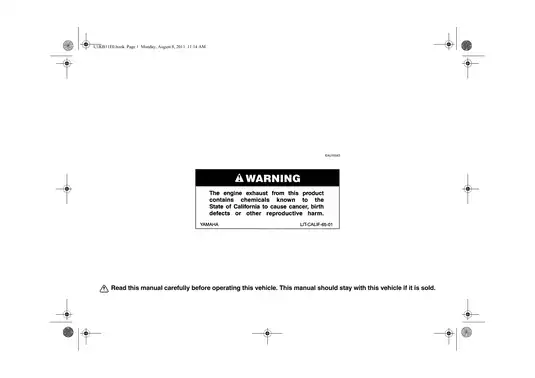

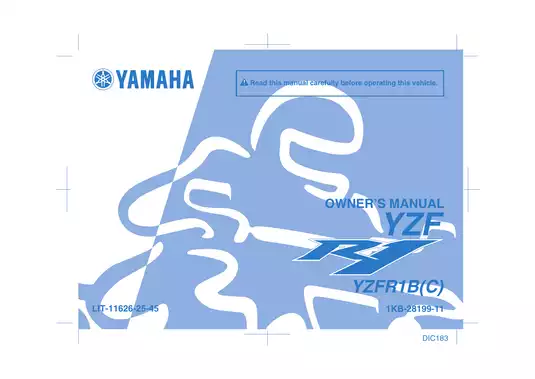

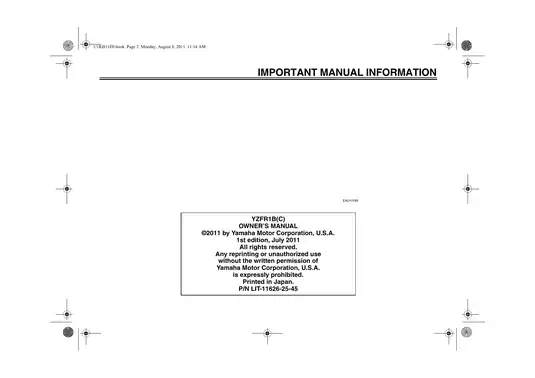

Yamaha YZFR1B(C) Owner’s Manual — P/N LIT-11626-25-45; first edition, July 2011; U.S. and California versions 122

This Yamaha set separates rider information and routine upkeep from workshop repair. The Owner’s Manual explains operation and basic maintenance; the Service Manual provides the detailed inspection, diagnosis, and repair procedures.

The included publications cover the 2012 YZFR1B/YZFR1BC. No 2013 model-year publication is included.

PDF Files and Navigation

Text search and bookmarks: Both PDFs support text search and have embedded bookmarks. Some service-manual illustrations and wiring labels are not reliably searchable. Small wiring, connector, and circuit labels require zooming.

The ZIP download contains two printable English PDFs totaling 666 pages. That total includes both manuals’ front and back covers, 16 blank service-manual pages, three promotional pages in the Owner’s Manual, and two full wiring-diagram sheets in the Service Manual.


Engine Repair, Electronic Diagnosis, and Rider Controls

The following selected coverage highlights outline the main workshop and owner topics rather than reproduce the complete contents. Additional material includes starter-clutch inspection and oil-pump relief-valve checks.

  • Engine and drivetrain repair: Step-by-step engine removal and installation, compression testing, camshaft and timing-chain service, cylinder-head and valve work, clutch repair, and crankcase disassembly.
  • Chassis procedures: Wheel removal and static balancing, speed-sensor rotor service, brake-caliper and master-cylinder overhaul, hydraulic bleeding, fork rebuilding, steering-head checks, and rear-linkage service.
  • Fuel-system service: Primary and secondary injector work, fuel-pump testing, throttle-body synchronization, injector and fuel-line pressure checks, and throttle and accelerator position-sensor adjustment.
  • Cooling-system work: Radiator inspection, cap-pressure testing, thermostat checks, oil-cooler service, and water-pump disassembly and reassembly.
  • Electrical fault isolation: ECU self-diagnosis, onboard diagnostic mode, code-specific troubleshooting, sensor and actuator tests, system circuit diagrams, and the YZFR1B(C) wiring diagram.
  • Owner-level material: D-mode, traction-control settings, meter functions, riding controls, pre-operation checks, periodic maintenance, suspension adjustments, troubleshooting charts, care, storage, and warranty information.

The Owner’s Manual addresses riders performing basic upkeep; Yamaha wrote the Service Manual primarily for dealers and qualified mechanics with a basic understanding of motorcycle mechanics and the specified tools.

Internal Engine and Transmission Work

Engine coverage extends into measurement and parts selection. Camshaft-journal clearances, valve guides and seats, valve lifters, cylinder and piston condition, and piston-ring clearances are covered alongside color-coded bearing selection for the connecting rods, crankshaft, and balancer shaft.

The wet-clutch section includes friction-plate inspection and clutch-pack width adjustment. Internal transmission work covers the shift shaft, shift drum, shift forks, main axle, and drive axle of the constant-mesh six-speed transmission.

Exploded views and job charts identify parts, work order, replacement items, lubrication points, and related torque references. Together with the inspection limits, these provide a reference for assessing dismantled components before reassembly.

The connecting-rod section warns that interchanging rods or their big-end bearings can create incorrect clearance and engine damage. Uneven camshaft-cap tightening can damage the cylinder head, caps, and camshafts; crankshaft movement during camshaft installation can also cause damage or incorrect valve timing.

Chassis and Cooling-System Detail

Swingarm, chain-drive, steering-damper, and rear-suspension linkage procedures complement the wheel, brake, and fork sections. The fork instructions distinguish the right-leg rebound adjuster from the left-leg compression adjuster.

Rear-shock coverage addresses removal, inspection, replacement, and linkage service. The nitrogen-charged shock body is not presented as a rebuildable assembly; Yamaha warns against opening it.

Cooling-system illustrations show hose and component routing. The repair sections address thermostat operation, radiator-cap testing, oil-cooler sealing, and water-pump seal installation.

YCC-T, YCC-I, and Electrical Troubleshooting

The fuel-injected, liquid-cooled DOHC inline-four uses YCC-T electronic throttle control and YCC-I variable intake funnels. Diagnostic tables distinguish displayed fault codes from diagnostic-mode checks and connect likely causes with wiring, connector, sensor, and actuator inspections. This supports fault isolation before components are selected for replacement.

Separate troubleshooting paths address ignition, the starting cut-off system, charging, lighting, signaling, radiator-fan control, fuel injection, and the fuel pump.

Reference graphics include the YCC-T/YCC-I control outline, TCS layout and block diagram, engine-oil lubrication chart, cooling-system diagrams, and monochrome and color versions of the complete wiring diagram. The TCS material explains how wheel-speed signals are used to coordinate ignition timing, fuel cut-off, and throttle-valve control.

Owner Operation and California Equipment

Operational material explains the STD, A, and B D-mode selections and six traction-control assist settings plus off. Rider information covers starting, shifting, break-in, parking, footrest positioning, and suspension settings.

Maintenance material includes cowl removal, fluid and brake checks, drive-chain care, battery, fuses, and lighting. Quick-check charts address starting or poor-running complaints and overheating. California-specific material identifies the evaporative-emission canister, rollover valve, purge hoses, and related inspection points.

Workshop References and Special Tools

Reference sections provide component-specific tightening torques, lubrication points, capacities, pressure-test data, wear limits, clearances, cable routing, and electrical test values.

The special-tool table lists 90890-series numbers and U.S./Canada equivalents. Examples include the vacuum gauge/carburetor synchronizer 90890-03094 / YU-44456, fuel-injector pressure adapter 90890-03210 / YU-03210, fork spring compressor 90890-01441 / YM-01441, and pocket tester 90890-03112 / YU-03112-C.

Work involving pressurized fuel, hydraulic brakes, and spring-loaded suspension components requires the specified equipment and appropriate shop safety practices.

A Preview of Valve and Clutch Inspection Data

For the covered engine, the valve-clearance section specifies cold-engine clearances of 0.11–0.20 mm for intake valves and 0.23–0.27 mm for exhaust valves, alongside valve-pad selection and adjustment procedures.

Clutch inspection distinguishes the standard friction-plate thickness of 2.92–3.08 mm from the 2.82 mm wear limit. The same section explains clutch-plate warpage checks and assembled pack-width assessment.
