Kobelco SK200-8 / SK210LC-8 Hydraulic Excavator 2006 Shop Manual (P/N S5YN0118E0)

• Machine coverage: Covers the Kobelco SK200-8, serial YN11-45001 and up, and SK210LC-8, serial YQ11-06001 and up, matching the standard-crawler and long-crawler configurations.

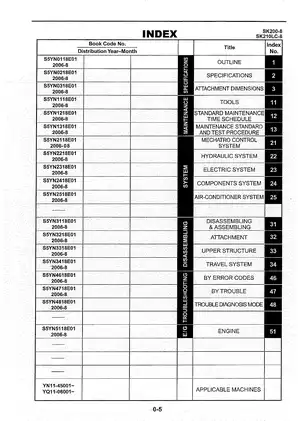

• Publication identity: Kobelco Book Code No. S5YN0018E01, issued in August 2006. It follows Kobelco’s seven-category manual framework and contains 19 coded section books through the Engine volume, totaling 1,082 PDF pages.
• Hydraulic and mechatro systems: Covers the K3V112DTP pump and regulator, KMX15YD main control valve, M5X130-CHB swing motor, GM38VB travel motor, pilot valves, cylinders, swivel joint, pressure testing, relief-valve adjustment, and mechatro-controller output adjustment.
• Major repair work: Documents removal, installation, disassembly, inspection, reassembly, and related final checks for the bucket, arm, boom, hydraulic cylinders, upper structure, pump, control and pilot valves, swing unit, travel motor, crawler, rollers, idler and adjuster, sprocket, and swing bearing.
• Electrical and fault diagnosis: Contains electric circuit diagrams, harness routing and connector information, multi-display service diagnosis, stored error history, error-code and symptom-based troubleshooting, and the controller’s automatic trouble-diagnosis modes.
• Hino J05E-TA engine: Incorporates Hino workshop manual SMTC-E060 for engine disassembly and rebuild, common-rail fuel and ECU diagnosis, emissions equipment, turbocharger, cooling, lubrication, starting and charging, and air-compressor service.
• Factory reference data: Includes standard maintenance labor-time tables, performance inspection baselines, attachment dimensions, component weights, wear and clearance limits, torque and hose-fitting tables, hydraulic and electrical test specifications, and special-tool references.

Hydraulic and Mechanical Specifications

This is a serial-specific Kobelco hydraulic excavator shop manual, not a generic excavator reference. The specifications section distinguishes short-, standard-, and long-arm arrangements built around the 5.65 m boom, including 2.4 m, 2.94 m, and 3.5 m arm packages with matched bucket configurations. Separate drawings cover the boom, arm, bucket lugs, bosses, pins, and bushings; transport data supplies dimensions and component weights for trailer planning, lifting, and major repair preparation.

Regional hydraulic differences are identified. The component chart separates the Southeast Asia K3V112DTP pump without PTO from the Oceania pump with PTO. Oceania coverage extends to the multi-control valve and operating-pattern hardware used in Australian and New Zealand configurations. These distinctions matter when choosing pump parts, routing pilot hoses, or following the correct upper-structure repair section.

The front matter identifies Installation Procedures for Optional Attachment as a supplement category added on request. No separately coded option-installation volume is included in this file; option-specific material is limited to the features covered inside the mechatro and hydraulic sections.

Diagnostic and Major Repair Coverage

The hydraulic chapters explain system operation rather than merely listing specifications. Covered functions include unload and positive/P-Q control, boom, arm, and bucket conflux, arm recirculation and anti-cavitation, swing priority, travel-straight control, pressure release, work-mode selection, and hydraulic backup control. The maintenance test section adds engine-speed checks, travel and swing measurements, cylinder operating and drift tests, relief testing, pump checks, and mechatro-controller adjustment.

Multi-display service diagnosis reports controller inputs and outputs, pressure-sensor readings, proportional-valve commands, pump pressures, engine speed, relay states, and switch status. Separate chapters address current and historical error codes, blown controller fuses, wiring-check methods, hydraulic and electrical symptoms, engine-related faults, and two automatic trouble-diagnosis modes.

Electrical coverage includes the main circuit diagram plus upper, floor, cab, engine, lighting, flasher, and travel-alarm harness information with connector and pin-location detail. The air-conditioner section covers the R134a cooling circuit, component construction, unit disassembly and assembly, refrigerant charging, wiring and connectors, refrigeration-cycle troubleshooting flowcharts, panel self-diagnosis, and sensor monitor displays.

The pump and main control-valve sections combine exploded and sectional views with construction, operating theory, regulator adjustment, fault causes, and service coverage for individual spools, relief valves, lock valves, bypass-cut valves, and related check valves. Hydraulic-cylinder repair includes rod-cover and piston work, cleaning and inspection, seal and bushing service, reassembly, leakage checks, service limits, and applicable jigs.

Engine and Component Data

The Hino engine volume covers standard values, parts preparation, engine assembly and disassembly, common-rail fuel injection, emission control, intake and exhaust, internal engine repair, cooling and lubrication, starter and alternator systems, turbocharger work, air-compressor service, symptom diagnosis, and engine diagnostic codes. Its diagnostic procedures reference Hino-DX with the 09121-1040 Hino-Bowie interface and 09042-1220 connecting cable. The Kobelco tools section also identifies a suction stopper, counterweight and upper-frame lifting jigs, engine mounting pedestal, and track-spring set jig.

Representative illustrations include mechatro control block diagrams, standard hydraulic-line and neutral/travel/bucket circuit diagrams, main control-valve section views, harness and connector layouts, air-conditioner wiring and troubleshooting charts, and Hino ECU/common-rail diagnostic diagrams.

Shop-Floor Cautions and PDF File Note

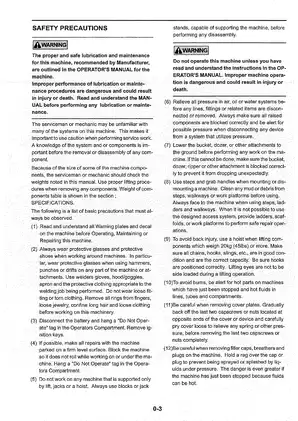

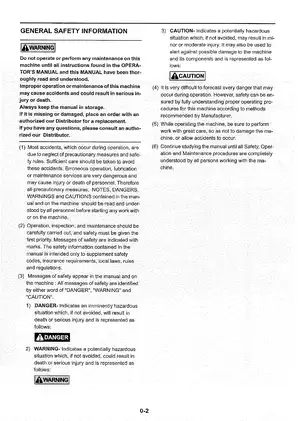

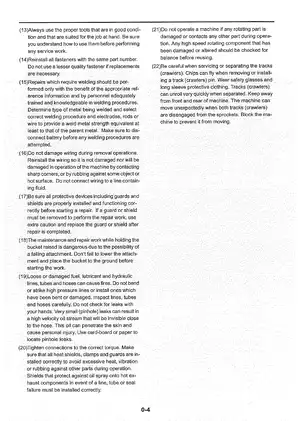

Raised attachments must be securely supported and residual hydraulic pressure released before hoses, cylinders, or control components are opened. The crawler section warns that stored grease pressure in the track adjuster can eject the fitting if it is loosened too far. During roller and travel-unit repair, damaged or incorrectly positioned floating-seal faces and bushing surfaces can cause leakage or accelerated wear; the Hino diagnostic pages likewise caution against probing the ECU connector mating face, where terminals can be spread or shorted.

The supplied PDF is scan-based rather than native text. Its 1,082 pages represent 1,030 distinct page images: one 52-page upper-structure sequence is repeated, and several scan ranges are stored upside down and need to be rotated in a PDF viewer.
