Mazda Models Covered & Key Technical Specifications

Models & Model Codes: Mazda3 (BM)

Sub-models / Variants: 4SD, 5HB, SKYACTIV-G 2.0 (C66M-R 6-speed manual or FW6A-EL 6-speed automatic), SKYACTIV-G 2.5 (FW6A-EL 6-speed automatic), i-ELOOP, Bose Type Audio

VIN identifiers: JM1 BM1-series; position 7: S, T, U, V, W, X = sedan; H, J, K, L, M, N = hatchback. Position 8: 7 = SKYACTIV-G 2.0; 3 = SKYACTIV-G 2.5.

Production sequence: 100001 onward for the listed body/engine VIN combinations with model-year character E.

Model Year: 2014


  • Engine displacement: 1,998 cc (SKYACTIV-G 2.0); 2,488 cc (SKYACTIV-G 2.5)

Mazda Manual Features & Selected Content Preview

Publication Pages

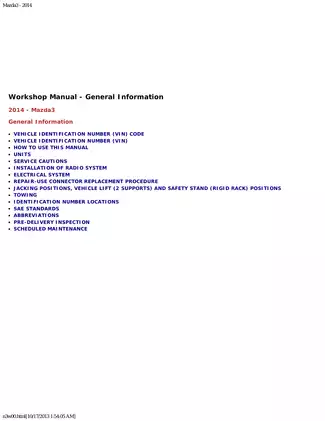

Mazda North American Operations Workshop Manual — 2014 Mazda3 4SD sedan and 5HB hatchback, SKYACTIV-G 2.0 and 2.5 gasoline engines 7,364
Wiring Diagram package, including connector references and electrical general information 649
2014 Mazda3 Service Highlights 2,177
2014 Mazda3 Bodyshop Manual — General Information 38
Master index — supplementary page 1

Workshop procedures are paired with system-design explanations for the engine, FW6A-EL, SCBS, multiplex networks, and i-ELOOP. The electrical material adds circuit indexes and connector references.

Scope limits: Engine coverage does not extend to a complete piston, crankshaft, and bearing rebuild, and neither transaxle has a full internal teardown and rebuild procedure. The Bodyshop portion covers general repair practices rather than panel-by-panel collision repair or body-dimension chapters.

PDF Search, Bookmarks and Flash Compatibility

Navigation and diagram access: Procedure text and tables support PDF text search, while many illustration labels and embedded-media details do not. Embedded bookmarks reach the main technical sections, but some parent entries have missing or incorrect destinations. The separate wiring and connector sections use legacy Flash/SWF content, which can appear blank in PDF viewers. Small labels in static workshop schematics may require zooming.

One printable English-language PDF contains 10,229 pages, including the master index, section indexes, connector-reference pages, and electrical general information already counted above.


Powertrain Repair, Chassis Service and Electronic Diagnosis

The following selected topics outline the repair and diagnostic coverage rather than reproduce the full contents. Further procedures include rear-window defroster filament repair and active air shutter inspection.

  • Engine repair: Engine removal, timing-chain service, cylinder-head gasket replacement, valve-train work, oil-pump service, and compression, oil-pressure, and fuel-pressure inspections.

  • Transmission and clutch work: C66M-R clutch and transaxle service; FW6A-EL pressure testing, valve-body service, initial learning, and TCM configuration.

  • Chassis service: Front/rear alignment, struts, coil springs, control arms, crossmembers, hubs, drive shafts, brake hydraulic testing and bleeding, DSC diagnosis, steering-column service, and steering-gear/linkage disassembly and assembly.

  • Climate control: Manual A/C and single-zone/dual-zone full-auto systems, refrigerant charging, compressor and magnetic-clutch service, and actuator diagnosis.

  • Restraints: Standard and two-step airbag systems, SAS module configuration, seat-weight sensor calibration, and airbag/pre-tensioner deployment and disposal procedures.

  • Electronic systems: HS-CAN and MS-CAN fault isolation, BSM radar testing, forward-sensing-camera aiming, module configuration, and personalization settings.

  • Diagnostic references: DTC flowcharts, PID tables, active-command checks, symptom charts, after-repair procedures, exploded assembly views, and component location indexes.

Its reliance on M-MDS diagnostics, Mazda special service tools, electrical test equipment, presses, and A/C service equipment makes it suited to professional technicians and highly experienced owners with equivalent shop capability.

SKYACTIV-G Diagnostics and Engine Repair

OBD-II coverage includes freeze-frame analysis, KOEO/KOER self-tests, readiness checks, and symptom diagnosis for both engines. Cooling, direct fuel injection, emissions controls, and PCM configuration have dedicated service procedures.

Step-by-step procedures cover timing-chain service and cylinder-head gasket replacement. The “Engine Disassembly/Assembly” section addresses engine/transaxle separation and removal of ancillary components.

The timing-system procedures warn that incorrect positioning of the holding tool and adapter can damage the crankshaft pulley or engine front cover.

C66M-R and FW6A-EL Service

The C66M-R six-speed manual is paired with SKYACTIV-G 2.0; the FW6A-EL six-speed automatic covers both engines. Clutch procedures include hydraulic bleeding and clutch-unit inspection, alongside manual and automatic transaxle removal.

FW6A-EL coverage adds line-pressure, stall, and road tests, control-valve-body removal, and oil-seal replacement. Its symptom charts distinguish no-drive, shift-flare, and harsh-engagement complaints, helping select the relevant diagnostic tests before repair.

Post-overhaul inspection is included for the C66M-R. The FW6A-EL section cautions that resting the valve body on its connector side can damage the connector or sensor.

Body Electronics and i-ELOOP

Configuration procedures distinguish read/write functions from as-built data. System diagnosis covers AFS, HBC, LDWS, SCBS, immobilizer, keyless entry, audio, and the front/rear body control modules.

The i-ELOOP workshop material adds dedicated DTC diagnosis, service-plug handling, capacitor inspection and compulsory discharge, generator service, and DC-DC converter testing and replacement.

Wiring References, Specifications and Tools

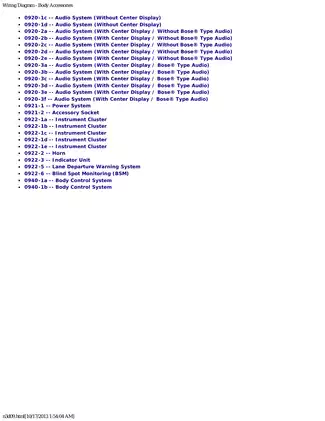

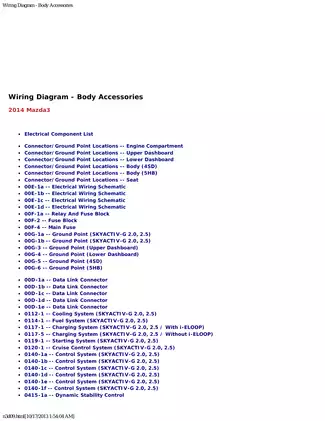

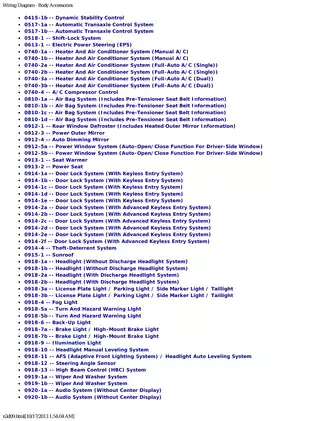

The electrical package indexes 96 numbered system circuits and includes a 395-page connector reference, plus 4SD/5HB connector and ground maps. Indexed subjects include i-ELOOP charging, FW6A-EL control, DSC, EPS, airbags with pre-tensioners, and BSM/AFS; their embedded-media compatibility limitations are described above.

Separate static diagnostic wiring diagrams appear throughout the Workshop Manual. Specifications include component-specific tightening torques, fluid capacities, pressure-test data, wear and clearance limits, alignment values, refrigerant data, and electrical test values.

Mazda SST tables identify tools by function and part number, including the 49 C017 5A0 engine support set, 49 N013 1A0D fuel-pressure gauge set, 49 T025 001 boot-clamp crimpers, and 49 H066 002 airbag deployment tool. Selected entries also carry global-tool cross-references.

Bodyshop Practices and Service Precautions

The Bodyshop section covers general panel cutting and joining practice, spot-welding guidance, installation preparation, corrosion protection, sound and vibration insulation, airbag precautions, VIN identification, and body-color references.

Airbag, brake, refrigerant, and i-ELOOP capacitor work can involve deployment, stored-energy, pressure, or chemical hazards. Follow the applicable factory warnings and isolation procedures, and use the specified equipment before beginning those repairs.

Compression and Thermostat Specification Preview

For warm-engine compression inspection at 300 rpm with the accelerator fully depressed, standard pressure is 885 kPa for SKYACTIV-G 2.0 and 954 kPa for SKYACTIV-G 2.5. The compression section explains how intake-valve closing timing affects these readings.

For both engines in U.S. and Canadian applications, thermostat initial-opening temperature is 80.5–83.5 °C. The thermostat inspection also specifies at least 8.5 mm valve lift at the full-open temperature of 95 °C.
