2006–2008 Vespa LX 50 4valvole Scooter Factory Service Manual (P/N 665230)

This Piaggio service manual covers diagnosis, maintenance, and repair of the Vespa LX 50 4valvole. English publication P/N 665230 (EN) carries a 2008 copyright.

• Engine repair: Engine removal, crankcase separation, cylinder-head and valve work, crankshaft inspection, timing-system assembly, and oil-pump service.

• CVT and final drive: Driving and driven pulley disassembly, clutch inspection, drive-belt checks, kickstarter service, and rear-hub bearing replacement.

• Fuel and emissions: Keihin NCV 20 carburetor overhaul, automatic-choke testing, vacuum-operated fuel-valve checks, CO adjustment, and secondary-air-system inspection.

• Electrical diagnosis: Wiring and conceptual circuit diagrams, stator and pickup tests, ignition-coil checks, voltage-regulator diagnosis, and connector pin assignments.

• Steering, suspension, and brakes: Steering-bearing replacement, front suspension overhaul, shock-absorber replacement, front caliper and master-cylinder service, hydraulic bleeding, and rear brake shoes.

• Maintenance and inspection: Scheduled service charts, engine and hub oil changes, air-filter cleaning, spark-plug checks, torque tables, and pre-delivery inspections.

Written for Piaggio-Gilera dealer workshops, this manual assumes basic mechanical and vehicle-repair knowledge and access to the specified workshop equipment.

Engine Teardown and Internal Inspection

The engine chapter covers piston-to-cylinder coupling, piston-ring and valve-guide clearances, camshaft inspection, and crankshaft alignment, with standard dimensions and wear limits.

Timing and lubrication: Calibrated valve pads, timing-chain guides, and the tensioner have dedicated inspection or assembly instructions. Oil-pump procedures include rotor-clearance measurements; tool references identify camshaft fitting/removal tool 020450Y and crankshaft alignment support 020074Y.

The crankcase section warns that improper cleaning of the crankshaft's centrifugal oil filter can release trapped debris into the lubrication system.

CVT, Clutch, and Rear Hub

Driven-pulley procedures cover the sliding half-pulley, bearings, seals, and clutch spring. The final-drive section adds shaft inspection and bearing replacement, while illustrated assembly views identify the driven-pulley/clutch components.

The driving-pulley instructions flag belt interference during tightening as a cause of crankshaft-knurling damage.

Carburetor and Secondary Air

The carburetor chapter details float-level checks, needle-valve and jet specifications, vacuum-diaphragm inspection, and accelerator-pump assembly. Maintenance instructions explain the ECU-controlled S.I.S. air valve and include SAS filter/reed-valve illustrations and CO-test equipment references.

Electrical Fault Tracing

Wiring diagrams include ignition, headlights and the automatic starter, battery recharge and starting, and level indicators and enable signals. Connector views identify the electronic control unit and voltage-regulator terminals.

The coil and pickup tests help distinguish failed components from wiring or connection faults. Troubleshooting tables also cover starting difficulties, poor performance, stalling, clutch slip, brake faults, and steering symptoms.

Steering, Brakes, and Workshop Reference Tables

Front suspension overhaul addresses the steering-tube/swinging-hub connection when the tube and hub are in good condition, using service tool 020021Y. Separate procedures cover the shock-absorber/caliper bracket bearings.

Brake coverage includes front disc inspection and caliper overhaul, master-cylinder work, vacuum bleeding, and rear drum shoe replacement. Engine components and hydraulic brake work require the factory safety precautions and specified tightening procedures.

Illustrated operation tables in the Time section identify assemblies and service job codes. Their Duration columns are blank, so these tables do not provide labor-time estimates.

A Preview of Valve, Crankshaft, and Belt Specifications

These are a few examples of the adjustment and inspection data in the manual. Cold-engine valve clearances are 0.10 mm intake and 0.15 mm exhaust.

The overhaul data lists the transmission-side crankshaft bearing diameter as 20 mm with −0.012/−0.025 mm tolerances. CVT inspection includes a 17.5 mm minimum drive-belt width.

Searchable Text, Bookmarks, and Diagram Detail

Navigation and small labels: Body text and component legends are searchable, while text within wiring images is not. Embedded bookmarks cover the manual, but some chapter headings lack a direct jump target and some section links land a page early. The smallest connector and wire-color labels remain difficult to read in places, even when enlarged.

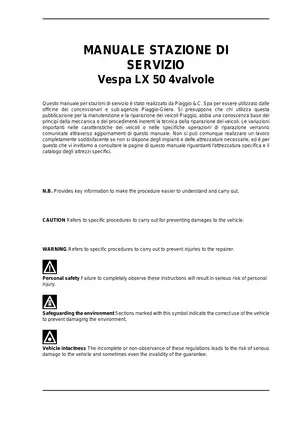

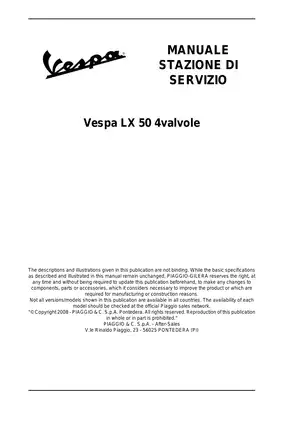

A single printable 218-page PDF contains the English service text with some Italian introductory material. The total includes the four opening cover, copyright, preface, and contents pages, plus the two-page alphabetical index.
