2012 Yamaha XT250D/XT250DC Owner's Manual PDF (P/N LIT-11626-26-08)

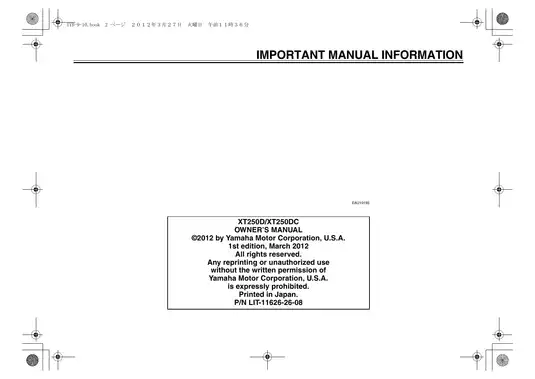

Yamaha’s owner’s manual for the 2012 XT250D and XT250DC covers operation, preventive maintenance and minor repairs. This is the first edition, March 2012, publication P/N LIT-11626-26-08, with cover reference 1YB-28199-10.

• Engine maintenance: Oil changes with or without filter replacement, spark plug inspection, air filter replacement, check-hose cleaning and spark arrester cleaning.

• Drive chain and wheels: Chain slack adjustment and alignment checks, plus removal and installation procedures for both wheels with component-specific tightening torques.

• Brakes and suspension: Pad-wear and fluid-level checks, clutch and brake lever adjustments, shock spring preload adjustment, and fork, steering and wheel-bearing inspections.

• Electrical service: Battery maintenance, circuit-fuse identification and replacement, lighting bulb replacement, and operation of the multi-function display.

• Starting checks: An ignition circuit cut-off flowchart and a separate troubleshooting chart addressing fuel supply, compression, ignition and battery condition.

• Maintenance schedules: Separate emission-control and general maintenance charts, lubrication requirements, California canister checks, and specifications for scheduled service.

Written for owners, this manual covers maintenance and minor repair work that requires suitable tools and experience; Yamaha directs unfamiliar owners to a dealer for the relevant job.

Operation and Starting Checks

Operating instructions explain starting, shifting and engine break-in, including precautions for a cold engine. The pre-operation checklist links individual controls and systems to their inspection requirements.

The ignition circuit cut-off flowchart separates possible neutral, sidestand and clutch switch problems. Its switch-specific outcomes help owners identify which starting interlock needs dealer attention.

Display coverage explains the self-diagnosis error indication, while the starting section describes the lean-angle sensor’s turnover indication. The manual does not provide a full fault-code catalog or an electrical wiring diagram.

Engine Maintenance and Emission Controls

Oil-service instructions distinguish an oil-only change from replacement of the filter element. Illustrations identify the filter cover, separate drain points and O-rings, alongside lubricant requirements, refill quantities and fastener torques.

The air filter uses a disposable, oil-coated paper element. Yamaha’s maintenance notes warn that cleaning this element with compressed air can damage it.

California-specific material includes the Emission Hose Routing label and a canister illustration identifying the rollover valve and breather. Fuel-system specifications distinguish CAL and U49 configurations by throttle-body identification marks and tank capacity.

Valve-clearance adjustment, correction of engine idle speed and throttle-grip adjustment are dealer tasks. The valve-clearance section gives maintenance guidance rather than clearance measurements or an adjustment procedure.

Drive Chain, Wheels and Suspension

Wheel-service illustrations show spacer locations, rear brake caliper bracket retention and chain-adjuster alignment. The tire and wheel sections explain the requirements for the original spoke wheels and tube tires.

Chain-care instructions address O-ring compatibility: unsuitable solvents and high-pressure cleaning can damage the chain seals.

Shock spring preload coverage includes an illustrated measuring reference, adjustment limits and locknut torque. Yamaha recommends dealer adjustment and calls for a special wrench when an owner performs this work.

Fork, steering-bearing and wheel-bearing instructions concentrate on condition and operation checks. Observe the manual’s support precautions during wheel work and its handling warnings for the nitrogen-pressurized shock absorber.

Brake Checks, Electrical Service and Repair Limits

Brake illustrations identify pad-wear grooves and reservoir level marks. The manual also describes rear brake-light switch adjustment; hydraulic bleeding and brake-fluid changes are assigned to a dealer.

Electrical coverage addresses the VRLA battery, fuse-box layouts and individual lighting components. Reference specifications identify the battery model and capacity, bulb wattages and circuit fuse ratings.

This owner’s manual covers routine servicing and minor repairs. Internal engine or transmission repair, brake overhaul and detailed electrical fault tracing require workshop-level documentation.

Examples of Chain and Lever Adjustment Data

The drive-chain section specifies 40.0–45.0 mm of slack with the motorcycle on its sidestand and no weight on it. An accompanying illustration identifies the measuring point.

Lever-adjustment illustrations specify 10.0–15.0 mm of clutch lever free play and 2.0–5.0 mm of front brake lever free play, with separate views identifying the measuring points and adjusters.

Searchable Text, Bookmarks and PDF Contents

Search and section access: Main text is searchable, and 86 embedded bookmarks provide access to chapters and maintenance topics. Some lettering within vehicle-label illustrations is not searchable. Text copying is restricted in viewers that enforce the file’s permission settings.

Supplied in English as one printable 100-page PDF. The total already includes 88 numbered chapter pages, six preliminary pages, two covers, a two-page index, one blank page and one product-information page; no separate supplement is included.
