KTM 65 SX Owner's Manual - 2013 Edition

Technical integrity and operational safety for the 2013 competition season depend on precise adherence to factory-specified maintenance intervals and tuning parameters. This documentation provides the critical data required to maintain the high-performance 65cc two-stroke powertrain, including the vital requirement of applying high-viscosity grease (SKF LGHB 2) to the steering head bearings to ensure consistent handling geometry and prevent premature race-frame fatigue. Proper execution of these factory benchmarks ensures maximum power delivery from the reed-intake engine while safeguarding the structural longevity of the chrome-molybdenum chassis.

Technical Applicability & Model Configurations

The specifications and procedures contained herein are strictly limited to the following motorcycle configuration and production year.

• KTM 65 Series (2013)
  • KTM 65 SX (2013)

Note: Chassis numbers are located on the right side of the steering head, and engine numbers are stamped on the left side of the engine housing beneath the engine sprocket.

Operational Uptime & Investment Protection

• Factory Performance Retention: Implementing the prescribed 10, 20, and 40-hour service schedules prevents catastrophic component failure and maintains competitive power-to-weight ratios.
• Safety System Calibration: Accurate adjustment of the WP Suspension components and MIKUNI TM 24 carburetor ensures predictable vehicle behavior under extreme racing stresses.
• Parts Accuracy: Utilization of official KTM PowerParts and recommended Motorex lubricants guarantees full compatibility with internal seal materials and high-heat tolerances.

Technical Document Metadata

• Print Number: Art. no. 3211855en

• Edition: 04/2012

• Document Length: 88 Pages

• Format: Digital Reference Manual

  Technical Depth & Factory Benchmarks

  Standardized settings for the 65 SX are engineered for a target rider weight of 50 kg (110 lb). Deviations from these benchmarks necessitate spring rate modifications to maintain the required 33 mm static sag and 90 mm riding sag.

• Engine Displacement: 64.85 cm³ (3.9574 cu in)

• Idle Speed: 1,400... 1,500 rpm

• Fuel Mixture Ratio: 1:60 (Super unleaded mixed with 2-stroke engine oil)

• Ignition System: Non-contact controlled fully electronic with digital adjustment

System Architecture & Navigation Aids

• Chassis View (Front Left): Reference for clutch lever, fuel tap, and choke locations.
• Chassis View (Rear Right): Reference for kill switch, brake fluid levels, and kickstarter.
• Component Schematics: Detailed visual guides for fork bleeding, air filter service, and chain tensioning.

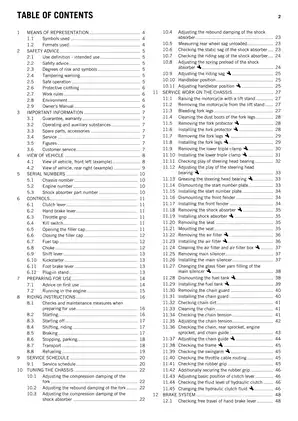

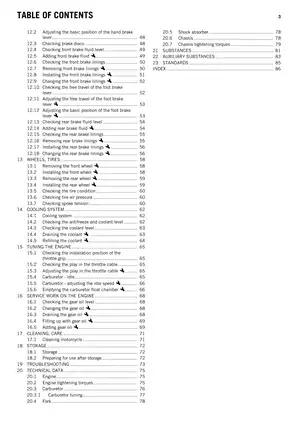

Table of Contents

• 1 Means of Representation: Symbols and formats.
• 2 Safety Advice: Intended use and risk management.
• 3 Important Information: Warranty and auxiliary substances.
• 4 View of Vehicle: External component identification.
• 5 Serial Numbers: Chassis and engine ID locations.
• 6 Controls: Throttle, brake, and shifting interfaces.
• 7 Preparing for Use: Advice for first use and engine break-in.
• 8 Riding Instructions: Operational procedures and refueling.
• 9 Service Schedule: Hourly maintenance intervals.
• 10 Tuning the Chassis: Suspension and handlebar adjustment.
• 11 Service Work on the Chassis: Brake, chain, and filter maintenance.
• 12 Brake System: Disc and lining inspection/replacement.
• 13 Wheels, Tires: Spoke tension and wheel installation.
• 14 Cooling System: Antifreeze levels and system bleeding.
• 15 Tuning the Engine: Carburetor and throttle cable calibration.
• 16 Service Work on the Engine: Gear oil replacement.
• 17 Cleaning, Care: Preservation and maintenance.
• 18 Storage: Long-term decommissioning.
• 19 Troubleshooting: Fault analysis and corrective actions.
• 20 Technical Data: Detailed torque and measurement specs.

Operational Limits & Specifications

Precise torque sequences are mandatory for all critical chassis and engine fasteners to prevent vibration-induced loosening.

• Engine Torque Benchmarks:
  • Cylinder Base Nuts (M8): 20 Nm (14.8 lbf ft)
  • Cylinder Head Screws (M7): 18 Nm (13.3 lbf ft)
  • Oil Drain Plug with Magnet (M12x1.5): 20 Nm (14.8 lbf ft)
• Chassis Torque Benchmarks:
  • Rear Wheel Spindle Nut (M12x1): 40 Nm (29.5 lbf ft)
  • Front Wheel Spindle Screw (M10): 40 Nm (29.5 lbf ft)
  • Top Triple Clamp Screws (M8): 20 Nm (14.8 lbf ft)
• Fluid Capacities:
  • Gear Oil: 0.50 l (0.53 qt) SAE 15W/50
  • Coolant: 0.55 l (0.58 qt)
• Carburetor Factory Settings (MIKUNI TM 24):
  • Main Jet: 210
  • Idle Air Adjusting Screw: 3.5 turns open
  • Jet Needle: 5IPL43 (2nd position from top)
