KTM 690 Duke & 690 Duke R (EU/AUS/UK/MAL) Sports Motorcycles Owner's Manual 2013
Product Gallery

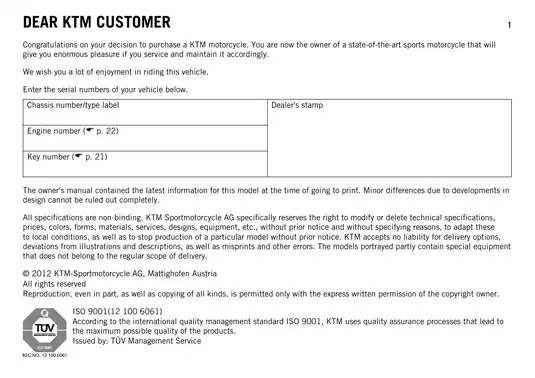

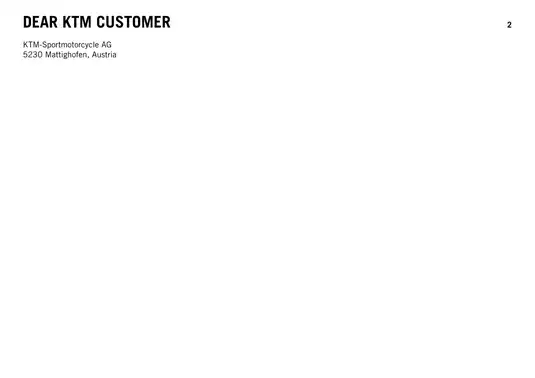

Sample pages from the KTM 690 Duke & 690 Duke R (EU/AUS/UK/MAL) Sports Motorcycles Owner's Manual 2013 manual
Purchase Information
Technical Specifications
- Document Number / Seller:
- 31699 / Emily Thomas
- File Size:
- 2.60 MB
- File Type:
- Language:
- English
- Pages:
- 197
- Printable:
- Yes
- Estimated Download Time:
- 0.05 Minutes
- Delivery Format:
- Digital (PDF) - Instant Access
- Category:
- Motorcycle
- Brand:
- KTM
- Reviewed and Approved:
- Jan 2, 2026
KTM Models and Parts Covered in this Motorcycle Manual
-
KTM 690 DUKE (3211953EN) — Series: 2013
-
Full Coverage: 690 DUKE EU — 690 DUKE AUS/UK — 690 DUKE MAL — 690 DUKE R EU — 690 DUKE R AUS/UK — 690 DUKE R MAL
-
LC4 SINGLE-CYLINDER POWERTRAIN: 690 CM³ — 102 MM BORE — 84.5 MM STROKE — 12.6:1 COMPRESSION
-
WP SUSPENSION CHASSIS: 4357 ROMA/ROTA FORK — 4618 BAVP SHOCK — 135 MM TRAVEL — 150 MM TRAVEL
-
BREMBO/BOSCH TECHNICAL SYSTEMS: 320 MM FRONT DISC — 240 MM REAR DISC — 9.1 ABS UNIT — 224 W ALTERNATOR
-
ESSENTIAL BENCHMARKS: 150 KG WEIGHT — 350 KG MAX PERMISSIBLE — 1,550-1,650 RPM IDLE — 90 NM AXLE TORQUE
-
CAPACITIES & CONSUMABLES: 14 L FUEL TANK — 1.7 L SAE 10W/60 OIL — 1.2 L G48 COOLANT — DOT 4/5.1 BRAKE FLUID
Complete Manual Information
KTM 690 Duke & 690 Duke R Owners Manual - 2013 Edition
Technical oversight and precise operational adherence are mandatory for maintaining the high-performance integrity of these sports motorcycles. This manual provides the necessary factory-level data to execute scheduled maintenance and tuning, featuring a hyper-specific requirement for the hydraulic clutch: the system utilizes a specialized biodegradable hydraulic fluid (ISO VG 15) rather than standard brake fluid. This distinction is critical for preventing seal degradation and ensuring consistent lever pressure and clutch engagement for maximum vehicle uptime.
Machine Identification: Technical Applicability & Regional Variants
KTM 690 Duke Series (Standard Chassis)
- 690 Duke EU (2013)
- 690 Duke AUS/UK (2013)
- 690 Duke MAL (2013)
KTM 690 Duke R Series (Enhanced Performance Chassis)
- 690 Duke R EU (2013)
- 690 Duke R AUS/UK (2013)
- 690 Duke R MAL (2013)
Performance Utility: Operational Reliability & Safety
- System Calibration: Factory-specified torque values for critical engine and chassis components prevent mechanical failure under high-stress conditions.
- Enhanced Safety: Detailed ABS functional descriptions and deactivation protocols ensure the rider maintains optimal control across varying road surfaces.
- Component Longevity: Specific running-in guidelines and service schedules prioritize the prevention of premature wear on the LC4 power plant and drivetrain.
Document Specifications: Factory Metadata
- Print Number: Art. no. 3211953en
- Page Count: 194 Pages
- Document Status: 2013 Release (©2012 KTM-Sportmotorcycle AG)
System Architecture & Factory Benchmarks
Mechanical integrity is verified through rigorous technical data including a 12.6:1 compression ratio and a semi-dry sump lubrication system featuring dual rotor pumps. The OHC 4-valve engine requires precise valve clearances of 0.07 to 0.13 mm (0.0028 to 0.0051 in) when cold to maintain peak volumetric efficiency.
Visual Diagnostics & Component Localization
Navigational aids facilitate rapid component identification for the following systems:
- Chassis Geometry: Steering head localization and frame-mounted type label positioning.
- Cockpit Interface: Detailed mapping of the 4-function combination instrument, including tachometer over-rev markings and indicator lamp states.
- Engine Access: Visual guides for the oil level viewer, drain plugs, and dual oil screen locations.

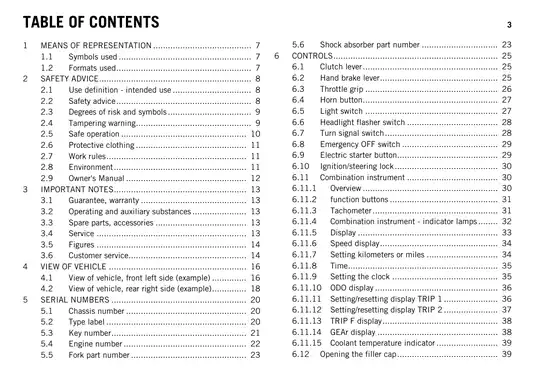

Table of Contents: Primary Sections
- Means of Representation: Symbols and typographical formats.
- Safety Advice: Use definition, risk degrees, and work rules.
- Serial Numbers: Chassis, engine, and key identification.
- Controls: Handlebar switches, combination instrument, and locks.
- Preparing for Use: First use advice, running-in, and loading.
- Service Schedule: Comprehensive maintenance intervals (1k, 10k, 20k km).
- Chassis Tuning: Fork and shock absorber adjustment (Standard vs. R).
- Brake System: ABS theory, disc wear limits, and fluid maintenance.
- Technical Data: Engine, chassis, and tightening torque sequences.
Engineering Parameters & Fluid Specifications
- Engine Torque: Cylinder head M10 bolts utilize a 4-step diagonal sequence reaching 60 Nm (44.3 lbf ft).
- Fluid Capacities: Engine oil (SAE 10W/60) at 1.70 l (1.8 qt.); Coolant at 1.20 l (1.27 qt.).
- Tire Pressure: Standard 2.0 bar (29 psi) front and rear for solo operation.
- Brake Disc Wear: Front wear limit of 4.2 mm (0.165 in); Rear wear limit of 4.5 mm (0.177 in).
Download Instructions for KTM Motorcycle Manual
Frequently Asked Questions - KTM Motorcycle Manual
Is this manual suitable for beginners?
Yes, this KTM manual is designed for both professional technicians and DIY enthusiasts. It includes step-by-step procedures with clear illustrations and safety guidelines for Motorcycle maintenance and repair.
What file format will I receive?
You will receive this manual as a PDF file (2.60 MB), which is compatible with all devices. The manual is fully searchable and printable for your convenience.
How quickly can I access the manual after purchase?
You'll receive instant access to your KTM Motorcycle manual immediately after payment completion. The download link is valid for 3 days, with lifetime re-download guarantee.
Are engine specifications included?
This motorcycle service manual includes detailed engine specifications, valve clearances, torque settings, and performance data specific to your KTM model.
Can I print specific sections of the manual?
Absolutely! This digital manual allows you to print any section you need, from individual pages to complete chapters, making it perfect for workshop use.
