Honda CRF250R 2010–2013 Service Manual (P/N 61KRN53)

• Factory coverage and document identity: Covers the 2010-2013 Honda CRF250R; issued August 2012 as a 446-page PDF. Honda/Helm Item/Part No. 61KRN53.
• PGM-FI diagnosis: Provides symptom charts, MIL/DTC retrieval and clearing, sensor-circuit tests, fuel-pressure and pump-flow checks, injector and throttle-body service, and model-group-specific system diagrams.
• Top-end repair: Details engine removal and installation, compression testing, valve-clearance adjustment, cylinder-head teardown and inspection, valve-guide replacement, seat refacing, cam timing, decompressor service, and piston/cylinder work.
• Bottom-end and drivetrain work: Covers the clutch, kickstarter, gearshift linkage, alternator and flywheel, crankcase separation, transmission, crankshaft, balancer, bearings, oil pump, strainer, and pressure-relief valve.
• Chassis, suspension, and brakes: Includes front-fork and HPSD service, rear-shock and linkage overhaul, swingarm and steering work, wheel service, plus master-cylinder and caliper repair with brake-fluid replacement and bleeding.
• Electrical reference and fault isolation: Supplies ignition peak-voltage tests, CKP sensor, alternator, regulator/rectifier, condenser, and engine-stop-switch checks, along with wiring diagrams and whole-bike troubleshooting charts.

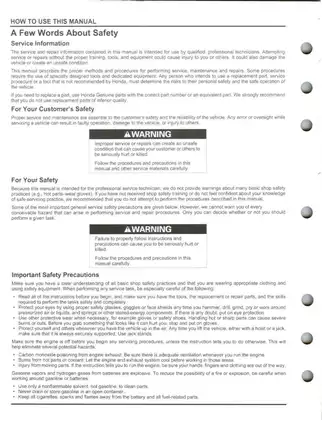

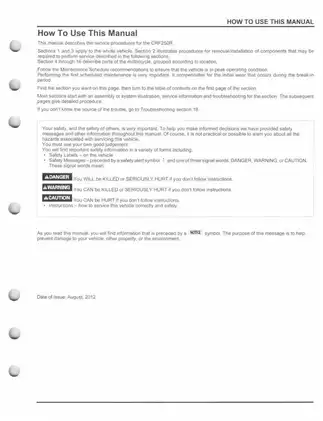

This Honda CRF250R service manual covers the fuel-injected, liquid-cooled four-stroke motocross platform across four model years. Routine service is organized around a race/hour-based maintenance schedule with break-in and severe-use notes. Honda expressly states that the service and repair information is intended for qualified professional technicians, and its assumed shop-safety knowledge, special tools, and dedicated test equipment make this a technician-level manual rather than a beginner's introduction.

Model-Year Differences That Matter

The manual does not treat every bike as mechanically identical. Its '10, '11, '12, and "After '12" callouts separate the 2013 configuration from the earlier models where required. The 2010 fuel-pump, clutch, muffler, and fork arrangements receive their own procedures; later callouts distinguish the revised clutch and pump, the post-2011 chain-roller setup, and year-specific fork and shock data. For 2013, the book identifies changes involving the PGM-FI and CKP circuits, regulator/rectifier mounting and connections, IAT connector, front brake-disc cover, and related wiring.

Coverage is organized by model year rather than VIN breakpoints. The manual shows where to find the VIN, engine serial number, and throttle-body identification number, but it does not define serial-number ranges for selecting procedures.

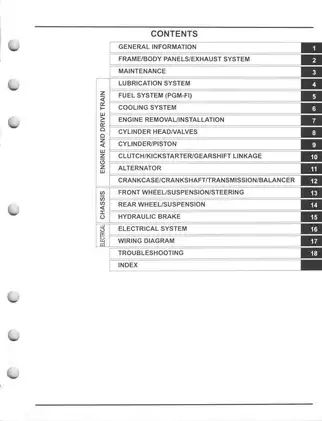

Technical Walkthrough

Fuel-system coverage goes well beyond component removal. The diagnostic section walks the technician through no-start, stalling, rough-idle, and poor-running symptoms, then branches into MIL/DTC checks for the MAP, ECT, TP, IAT, injector, and CKP circuits. It also addresses the fuel pump, quick-connect fittings, pressure relief, fuel-line replacement, ECM power and ground checks, and the factory-set throttle body.

Engine chapters support both top-end and full bottom-end repair. Along with the valve train and piston work, the manual covers clutch and kickstarter disassembly, shift mechanism inspection, crankcase and bearing service, transmission inspection and assembly, crankshaft and balancer work, and lubrication-system diagnosis. Cooling-system pages add coolant testing and replacement, radiator inspection, water-pump service, and mechanical-seal and bearing replacement.

The chassis sections reach into jobs commonly sent to a suspension or brake shop. Fork procedures include seal and bushing replacement, damper bleeding, oil-level setup, and HPSD inspection and overhaul. Separate chapters address shock disassembly and bleeding, linkage and swingarm bearings, steering-stem service, hydraulic brake bleeding, and master-cylinder and caliper rebuilds. Suspension specifications and standard adjuster settings are broken out where the four model years differ.

Diagrams, Tools, and Specification Data

Useful visual references include the lubrication-system flow pattern, separate PGM-FI system diagrams for 2010-2012 and 2013, cable-and-harness routing views, separate wiring diagrams for those same model groups, and component-location or exploded assembly views for the major engine and chassis systems. The troubleshooting chapter adds ordered fault-isolation charts for hard starting, power loss, poor low- or high-speed performance, and handling complaints.

Named Honda tools include the SCS service connector 070PZ-ZY30100, valve-spring compressor 07757-0010000, flywheel holder 07725-0040001, and fork-seal driver 070MD-MEN0100. The repair chapters pair these procedures with component-specific torque tables, fluid and oil-capacity data, wear limits, clearances, electrical test values, suspension settings, and inspection specifications.

The manual also calls out repair traps that can cause expensive damage. Loosening the white-painted throttle-body fasteners can disturb the factory setting and lead to throttle-valve or idle-control failure; bottoming the flywheel-puller adapter against the crankshaft end can damage the oil-control orifice. Fuel pressure must be relieved before opening the system, the radiator must be cool before its cap is removed, and the nitrogen-charged shock must be treated as a high-pressure component.
