1987–1988 Honda TRX125 Fourtrax Factory Service Manual (P/N 61HC300)
193 Pages • 20.80 MB • Instant, Printable PDF
Honda Models Covered & Key Technical Specifications
Models: TRX125 Fourtrax
Model Years: 1987, 1988
-
Engine: Gasoline, air-cooled 4-stroke, 124.8 cc, 9.0:1 compression ratio
-
Maximum Power: 9.3 BHP at 7,500 rpm
-
Maximum Torque: 0.96 kg-m (16.9 ft-lb) at 6,000 rpm
-
Transmission: 5-speed constant-mesh with reverse
-
Clutch: Wet multi-plate automatic
-
Fuel Tank Capacity: 7.5 liters (1.98 US gal)
-
Valve Clearance (Cold): 0.08 mm (0.003 in) for both intake and exhaust
-
Ignition Timing: 10° ± 2° BTDC at idle, 28° ± 2° BTDC at 5,000 rpm
-
Spark Plug: NGK DR8ES-L or ND X24ESR-U

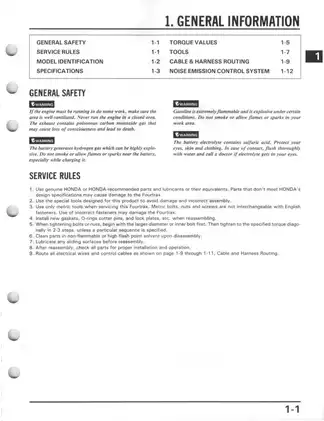

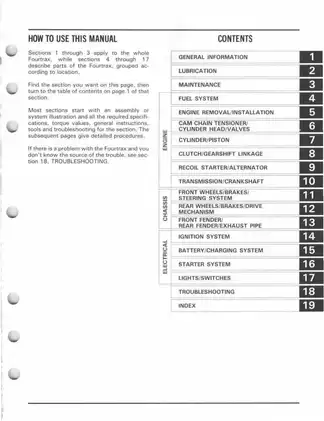

Honda Manual Features & Content Preview
This 193-page PDF is the Honda factory shop manual for the 1987-1988 TRX125 FourTrax, identified in Honda's catalog as Item/Part #61HC300. It covers the air-cooled 124.8 cc single-cylinder OHC four-stroke, five-speed constant-mesh transmission with reverse, wet multi-plate automatic clutch, CDI ignition, and both electric and recoil starting systems. Because the manual assumes knowledge of standard workshop practices and calls for dedicated service tools in several procedures, it is suited to professional technicians and mechanically experienced owners with the equipment to perform engine, brake, chassis, and electrical repair work.
- Engine repair coverage runs from removal and installation through oil-pump service, camshaft and cam-chain-tensioner work, cylinder-head and rocker-arm inspection, valve-guide and valve-seat service, and cylinder/piston/ring inspection and assembly.
- Clutch and transmission procedures address the centrifugal clutch, manual clutch, right crankcase cover, gearshift and reverse linkage, crankcase separation, crankshaft inspection, transmission disassembly and reassembly, and bearing replacement.
- Fuel and maintenance sections include carburetor teardown, float-level measurement, pilot-screw adjustment, high-altitude jetting, valve and clutch adjustment, compression testing, drive-chain service, reverse-lock checks, and the scheduled maintenance chart.
- Chassis repair content covers drum-brake overhaul, wheel and tire work, steering-shaft and kingpin service, rear-axle and bearing-holder repair, final-sprocket service, and body-panel and exhaust removal.
- Electrical diagnosis covers CDI ignition and spark testing, alternator and charging output, regulator/rectifier checks, starter-motor and relay faults, and continuity tests for lights, indicators, and handlebar and ignition switches.
- Factory reference data includes section-specific torque tables, specifications, inspection and wear limits, cable and harness routing, special-tool numbers, exploded assembly views, diagnostic charts, and a wire-color-keyed wiring diagram with switch-continuity tables.
Engine-Out Work and Internal Repair
The manual distinguishes work that can be done with the engine in the frame from repair that requires engine removal or crankcase separation. Engine chapters go beyond routine tune-up work to cover oil-pump disassembly and clearance checks, camshaft and rocker-arm inspection, cam-chain-tensioner service, cylinder-head removal, valve-guide replacement, valve-seat inspection and refacing, piston-ring fitting, and cylinder wear evaluation. The driveline chapters continue through clutch wear checks, gearshift return and reverse mechanisms, starter clutch and recoil starter repair, mainshaft and countershaft disassembly, shift-fork inspection, and transmission reassembly.

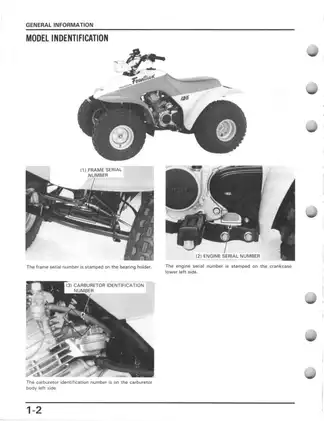

Factory specifications are organized by section rather than buried in one general list. They include component-specific torque data, standard dimensions, service limits, electrical resistance and continuity values, charging-system test data, lubrication requirements, capacities, and adjustment specifications. Frame, engine, and carburetor identification-number locations are illustrated near the front of the manual.
Drum-Brake, Steering, and Electrical Diagnosis
The tire chapter separates U.S. and non-U.S. removal methods and identifies the bead-breaking equipment each method requires. Brake chapters cover drum, shoe, cam, hub, seal, and bearing service; steering content reaches the shaft, bushings, kingpins, knuckle pipes, tie rods, and alignment checks. U.S.-market material also covers the noise-emission-control system and spark-arrester maintenance.
Section 18 uses symptom-to-probable-cause charts for hard starting, power loss, poor low-speed or high-speed performance, and poor handling. Supporting illustrations include the lubrication diagram, cable-and-harness routing views, cam-chain/cylinder-head assembly drawings, clutch and gearshift illustrations, rear brake and drive-mechanism views, and the full wiring diagram with switch-continuity charts. Tool references identify the clutch center holder 07923-9580000, flywheel puller 07733-0010000, and valve guide reamer 07984-0980001, with U.S. alternatives noted where Honda provides them.
Two repair cautions are easy to miss: the centrifugal-clutch locknut has a left-hand thread, and forcing it the wrong way risks thread damage. The inner and outer starter idle gears must also remain in their correct positions; incorrect engagement can damage the gears.

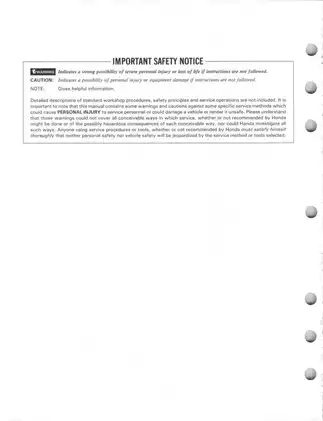

Honda states that detailed explanations of standard workshop methods and general safety practices are outside this manual's scope. Support the ATV securely before wheel, brake, steering, or rear-axle work, isolate the battery before starter repair, and do not clean brake drums or panels with compressed air.
