Honda Recon TRX250TM / TRX250TE ATV Service Manual, 2005–2013
408 Pages • Printable PDF • 37.81 MB • Download
Honda Models Covered & Key Technical Specifications
Models: TRX250TM, TRX250TE

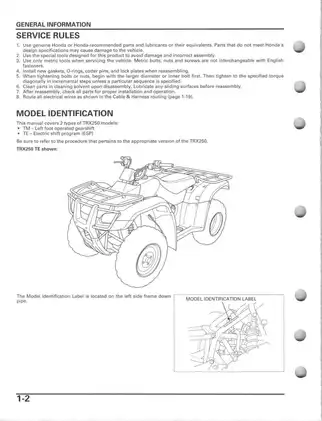

Sub-models / Variants: TRX250TM (Left foot operated gearshift), TRX250TE (Electric shift program - ESP)
Model Years: 2005–2013 (2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013)
-
Engine displacement: 229.2 cm3 (14.0 cu-in)
-
Engine type: Single cylinder, longitudinally installed OHV, 4-stroke
-
Compression ratio: 9.2:1
-
Transmission: 5-speed constant mesh with reverse
-
Clutch: Automatic, centrifugal and multi-plate wet
-
Fuel tank capacity: 9.1 liters (2.40 US gal)
-
Starting system: Electric starter motor and emergency recoil starter
-
Drive system: Rear final drive with hypoid gear oil SAE #80
-
Tire pressure (Standard): 20 kPa (2.9 psi)
-
Dry weight (TM): 190 kg (419 lbs)
-
Dry weight (TE): 193 kg (425 lbs)

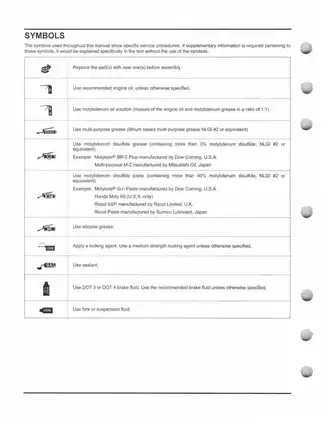

Honda Manual Features & Selected Content Preview
Honda service manual for the 2005–2013 Recon TRX250TM (manual foot-shift) and TRX250TE (Electric Shift Program) ATVs, covering maintenance, troubleshooting, and mechanical repair.
PDF Search, Navigation, and Page Count
Text search and diagram detail: OCR text search is partial and contains recognition errors. Embedded bookmarks cover chapters and subsections, but several chapter links are misdirected. Small wiring labels require zooming and remain soft in places. The alternator/starter-clutch component-location overview labeled 10-2 is missing.

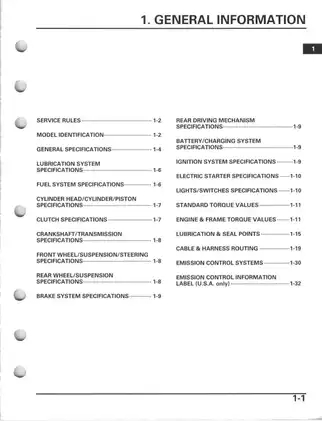

One printable, English-language PDF contains 408 pages total, including one cover page, two introductory pages, 13 memo pages, and one blank divider page.
Engine Overhaul, Drivetrain Service, and ESP Diagnosis
The following selected coverage highlights summarize major workshop tasks. Other included topics range from body-panel removal to spark-arrester maintenance.
-
Engine repair: Step-by-step procedures for cylinder-head and valve service, piston inspection, camshaft installation, crankcase separation, and crankshaft replacement.
-
Fuel and lubrication: Carburetor disassembly, pilot-screw adjustment, high-altitude settings, oil-pump inspection, oil-cooler service, and centrifugal-filter cleaning.
-
Clutch and shifting: Centrifugal and change-clutch inspection, clutch adjustment, gearshift-linkage repair, and transmission disassembly with component wear specifications.
-
Rear final drive: Axle removal, pinion-bearing replacement, gear-backlash measurement, tooth-contact checks, and shim selection.
-
Brakes and chassis: Front hydraulic drum-brake bleeding, master-cylinder and wheel-cylinder service, rear brake repair, steering work, and swingarm-bearing replacement.
-
Electrical troubleshooting: AC-CDI ignition tests, charging-system diagnosis, starter-motor overhaul, switch checks, and separate TM and TE wiring diagrams.
-
TRX250TE Electric Shift Program: Problem-code retrieval and erasure, diagnostic flowcharts, angle-sensor checks, and shift-control motor and reduction-gear service.
This manual suits mechanically qualified owners and technicians with the required tools and measuring equipment; the maintenance schedule reserves certain safety-related work for a Honda dealer.
Engine, Carburetor, and Lubrication Work
The air-cooled OHV engine sections go beyond routine servicing, with valve-guide replacement, valve-seat inspection and refacing, piston-ring inspection, and cam-chain timing procedures. Cylinder-head and valve work can be performed with the engine installed; crankshaft and transmission repair require engine removal and crankcase separation.
The PDC1F carburetor section covers the throttle valve, air-cutoff valve, jets, and float-valve inspection. It distinguishes initial pilot-screw settings from the subsequent adjustment procedure and explains that the float is not adjustable. A specific warning addresses damage caused by forcing the pilot screw against its seat.
Oil-pump rotor-clearance checks and oil-cooler inspection accompany the Lubrication System Diagram. Maintenance coverage also includes the oil strainer screen and centrifugal oil filter.
Clutch, Final Drive, and Running Gear
Separate centrifugal-clutch and change-clutch procedures include one-way-clutch checks, disc and plate inspection, and variant-specific spring limits. Gearshift-linkage illustrations identify the master arm, stopper mechanism, and reverse components during reassembly.
The rear final-drive section explains how backlash measurements, tooth-contact patterns, and shim selection relate to gear setup after bearing, gear-set, or housing replacement. These details help assess the work and equipment required before opening the assembly.
Chassis coverage addresses the double-cradle frame’s double-wishbone front suspension and rear swingarm, including ball-joint replacement and steering-shaft bearings. Brake procedures distinguish the hydraulic front drums from the mechanically operated rear drum.
Electrical Fault Tracing and TE Shift Problems
Charging-system and Electric Starter system diagrams support circuit tests, while the ignition chapter supplies peak-voltage checks for the coil, pulse generator, and alternator exciter coil. General troubleshooting charts connect hard starting, power loss, and poor running to the relevant inspections.
For the TE model, the ESP system diagram and problem-code charts help distinguish mechanical shifting faults from switch, sensor, wiring, and ECU-related problems. The manual identifies the ECU Test Harness, 22P, 07YMZ-0010100, and warns that disconnecting powered connectors can damage the ECU.
Keep in mind that working on ATVs involves heavy machinery, moving parts, and combustible fluids. Always refer directly to the detailed factory procedures and safety precautions in the manual.
A Preview of Adjustment, Wear, and Torque Data
Intake and exhaust valve clearances are listed at 0.13 mm, alongside a spark-plug gap of 0.8–0.9 mm. For the PDC1F carburetor, the initial pilot-screw opening is 1-1/2 turns out; the manual treats this separately from the completed adjustment.
Rear final-gear-case oil capacity is 80 cm³ after draining. Front brake-drum inspection data distinguishes the standard 130.0 mm internal diameter from the 131.0 mm service limit.
Examples of component-specific tightening data include 25 N·m for the engine oil drain bolt and 23 N·m for the muffler band bolt.
