Land Rover Range Rover Sport 2012–2014 Workshop Manual Set
8,432 Pages • ZIP Download: 13 Printable PDFs • 188.04 MB
Rover Models Covered & Key Technical Specifications
Models & Model Codes: Sport (LW; L494)
Sub-models / Variants: TDV6 3.0L Diesel (306DT), V6 S/C 3.0L Petrol (306PS), V8 5.0L Petrol, V8 S/C 5.0L Petrol (508PS), Hybrid Electric Vehicle (HEV) (SDV6 3.0L Diesel; 306DT), TDV8 4.4L Diesel (448DT)
Model Years: 2012–2014 (2012, 2013, 2014)
Transmission variants: ZF 8HP70 8-speed automatic AWD (non-HEV); ZF 8P70H 8-speed automatic AWD (HEV)
VIN engine identifiers (position 7, UK/EU/ROW): TDV6: F (without cDPF), K (with cDPF); TDV8: H (without cDPF), J (with cDPF); HEV: L (with cDPF), Z (without cDPF); V6 S/C: V; V8 S/C: E
VIN engine identifiers (position 7, NAS/Canada): V6 S/C: V (Petrol), W (Petrol FFV); V8 S/C: E (Petrol), T (Petrol FFV)
Serial Numbers: VIN 300000 and greater (LHD connector quick reference guide only); VIN LW300600 onwards (PDI battery positive-cable clip procedure)
-
Engine oil and filter renewal interval: 16,000 miles or 12 months (Normal usage; UK/EU maintenance check sheet)
-
Supercharger belt service interval: Every 7 years
-
Coolant renewal interval: Every 10 years
-
Brake fluid renewal interval: Every 3 years
-
Automatic gearbox fluid and filter renewal interval: Every 10 years (Non-HEV; UK/EU maintenance check sheet)
-
High voltage battery nominal voltage: 260 V
-
High voltage battery energy content: 1.7 kWh
-
Maximum gross vehicle weight (GVW): 3,200 kg (7,055 lbs)
-
Maximum trailer weight (overrun brakes, on-road): 3,500 kg (7,700 lbs)
Rover Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| 2014 Range Rover Sport (LW) workshop manual, TOPIx reference WSM-16923 — General Information | 1,215 |
| Workshop manual — Chassis | 743 |
| Workshop manual — Powertrain | 3,863 |
| Workshop manual — Electrical | 1,129 |
| Workshop manual — Body and Paint | 1,461 |
| UK/EU Maintenance Check Sheet, from 14MY — JLR 18 27 10_2E | 2 |
| Land Rover Anti-Corrosion Guidelines — JLR 18 39 10_1E | 1 |
| Land Rover Plastic Paint Guidelines — JLR 18 40 10_1E | 1 |
| Land Rover Aluminum Repair Guidelines — JLR 18 41 10_1E | 2 |
| Land Rover Steel Repair Guidelines — JLR 18 46 10_1E | 1 |
| Range Rover Sport LHD Connector Quick Reference Guide, VIN 300000 onward — JLR 18 55 21_1E | 6 |
| Range Rover Sport L494 HEV Rescue Sheet, LHD — JLR 19 43 10_1E | 4 |
| Range Rover Sport L494 HEV Rescue Sheet, RHD — JLR 19 45 10_1E | 4 |
The maintenance sheet organizes scheduled work and refers to the workshop manual for the corresponding operations. The coating guidelines, connector reference and HEV rescue sheets supplement the repair procedures with material-specific preparation, component-location and emergency-response information.
Engine coverage: Dedicated engine sections distinguish TDV6 3.0L Diesel, TDV8 4.4L Diesel, V6 S/C 3.0L Petrol, V8 S/C 5.0L Petrol and SDV6 3.0L Diesel HEV. Naturally aspirated V8 5.0L Petrol appears in diagnostic and transmission references, but the dedicated V8 gasoline engine section is for the supercharged version.

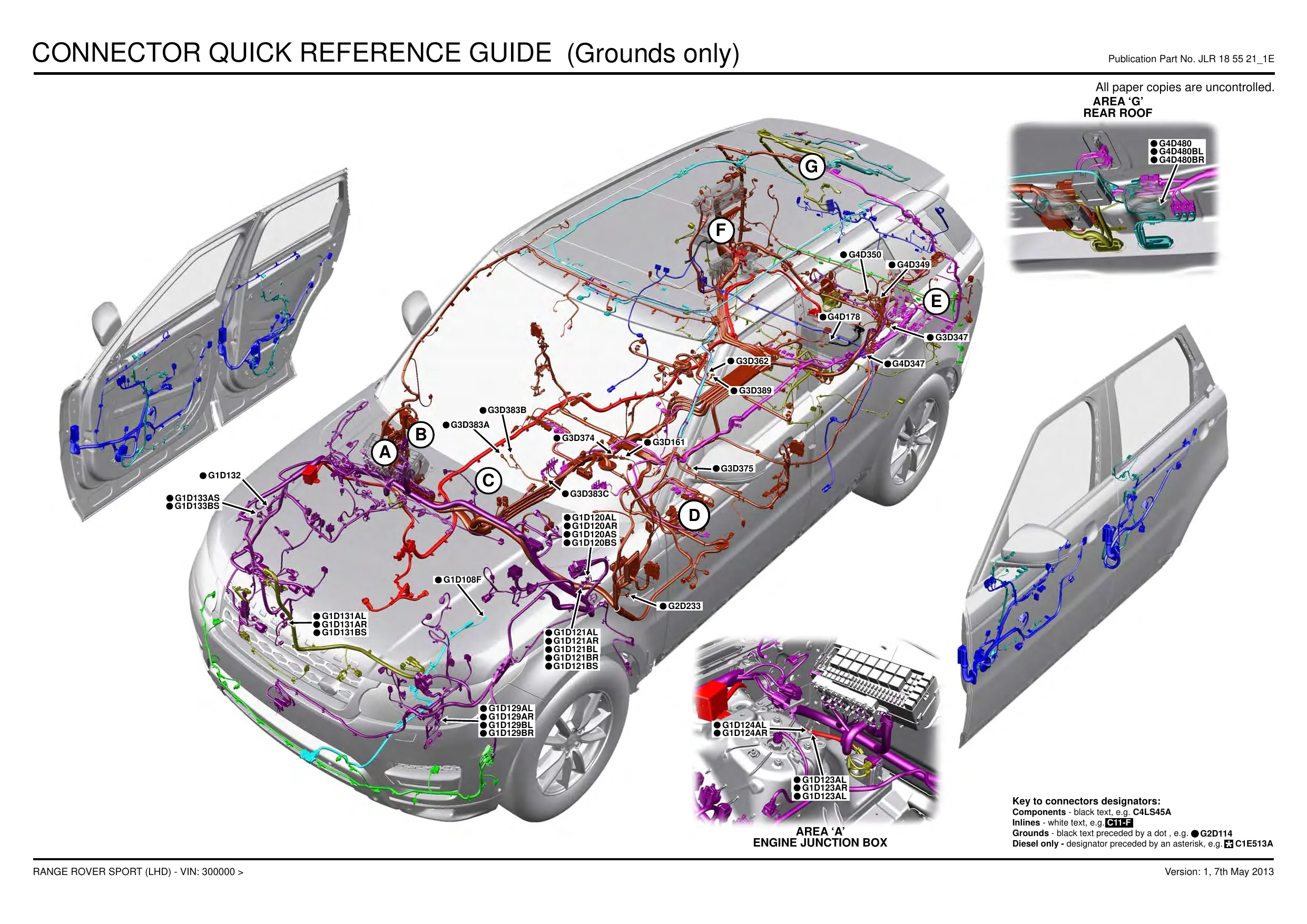

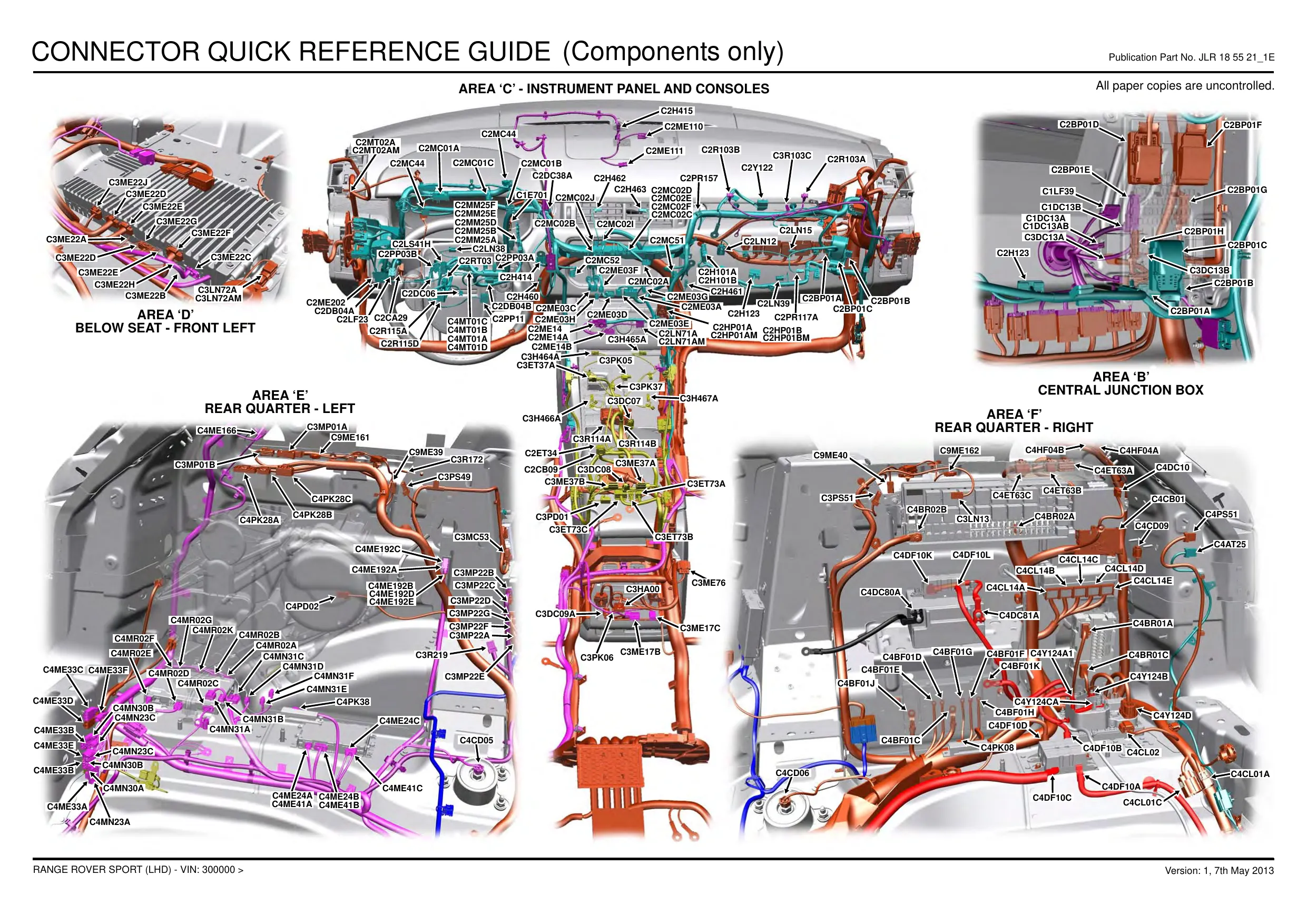

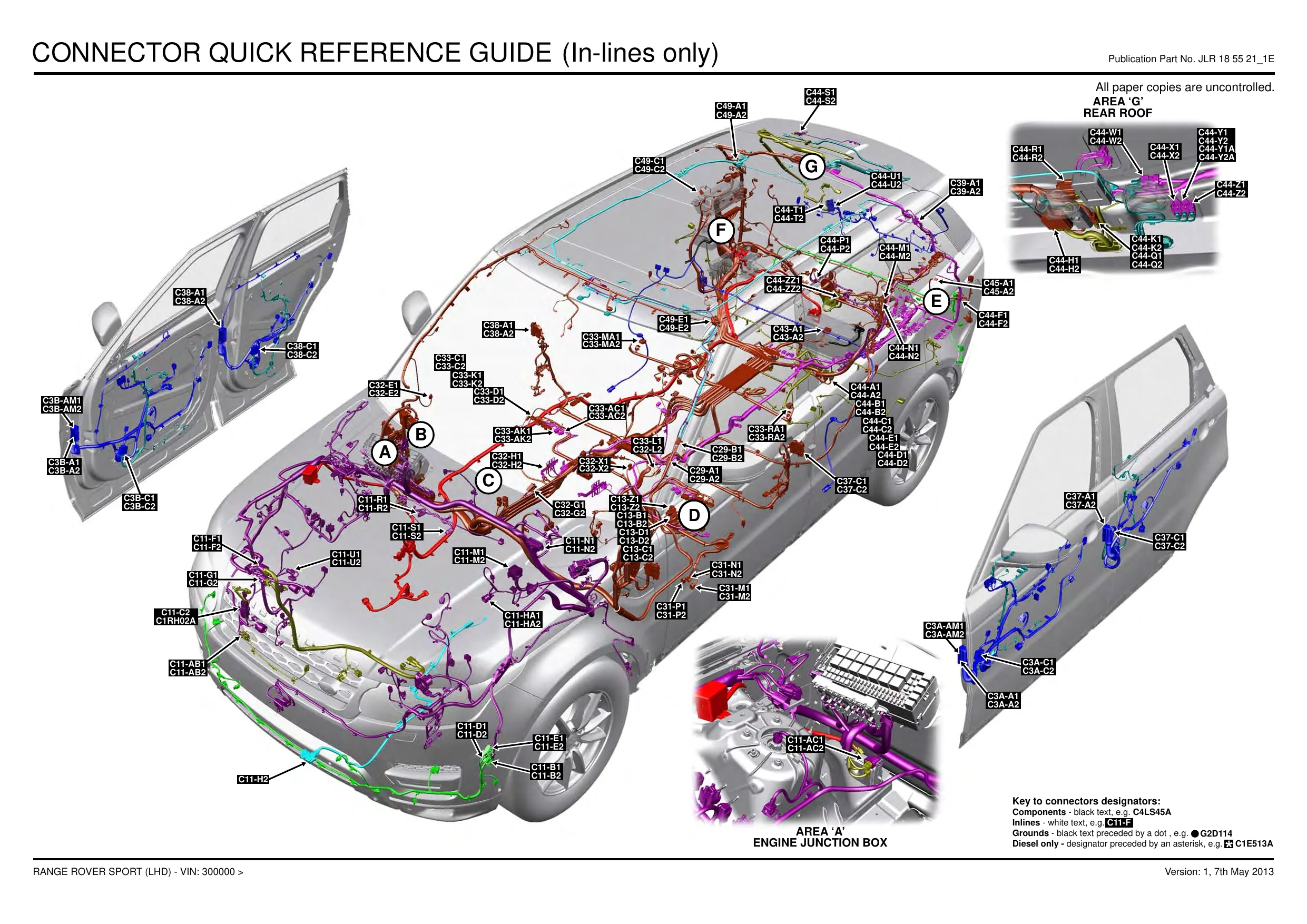

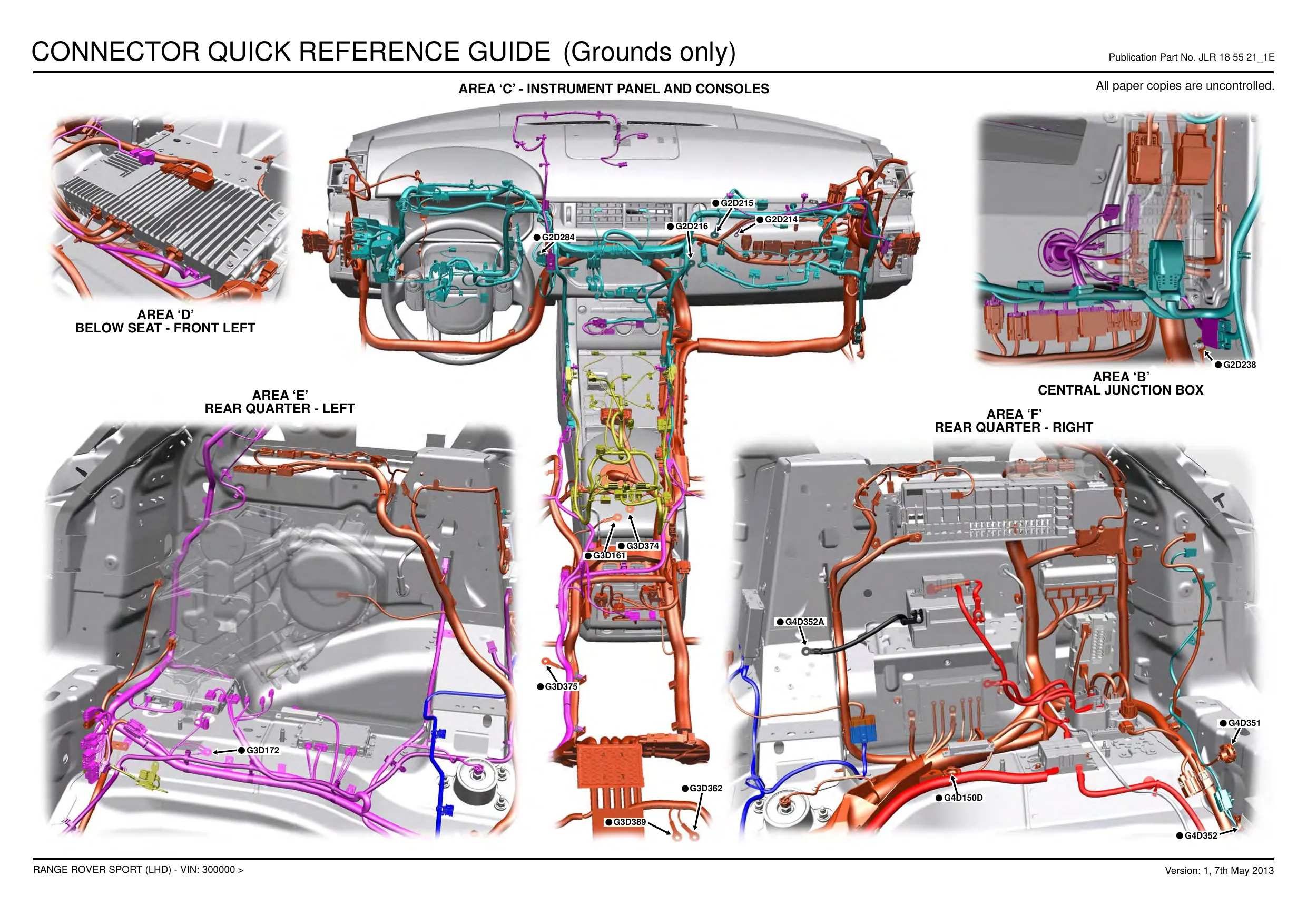

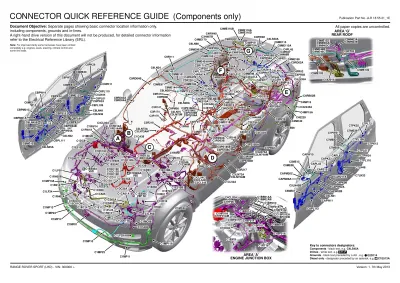

Electrical references: The connector guide provides LHD locations, not a complete circuit-diagram library. It omits several harnesses, including engine, seat, steering and climate-control harnesses, and directs detailed connector work to the separate Electrical Reference Library.
PDF Search, Diagram Detail and File Contents
Search and diagram access: Text sections in all 13 PDFs are searchable, although some workshop illustration pages contain no searchable text. None of the files has embedded PDF bookmarks. Dense connector-location labels require zooming; the checked system schematics have readable component callouts and legends.
The ZIP contains 13 printable PDFs totaling 8,432 pages, including the 21 pages of supplementary maintenance, coating, connector-reference and rescue documents listed above.
Engine, Chassis and Hybrid Workshop Procedures
The following selected coverage highlights summarize major repair areas rather than reproduce the full contents. Additional topics include power-steering diagnosis and air-conditioning recovery, evacuation, charging and compressor commissioning.
-
Engine repair: Step-by-step procedures cover TDV6 timing-belt replacement, camshaft and cylinder-head removal, diesel compression testing, and separate gasoline, diesel V8 and HEV engine work.
-
Transmission and driveline: Fluid-level checks, draining and refilling, pan/filter replacement, valve-body service and transmission removal accompany conventional and HEV coverage, transfer cases and differentials.
-
Suspension and brakes: Four-wheel alignment, air-suspension depressurization, ride-height calibration and active-stabilization bleeding accompany standard/high-performance brake procedures and electronic parking-brake service mode.
-
Hybrid service: Decommissioning, system bonding tests and battery-cooling service accompany removal procedures for the battery, inverter converter, hybrid drive assembly and motor generator.
-
Fault finding: Module-specific DTC tables support engine, transmission, brake, suspension, body and HEV diagnosis, alongside communication-network testing, quiescent-drain checks and wiring-harness repair.
-
Body repair and restraints: SRS diagnosis, airbag disposal and restraint replacement accompany structural procedures for front side members, pillars, rocker panels, roof panels and rear structure.
Written for technicians, the workshop manual assumes familiarity with diagnostic equipment, specialist tools, and vehicle-system repair.
Timing Work and Follow-Up Calibration
The V6 S/C section extends to fuel-pump camshaft timing checks and adjustment, valve-clearance inspection and adjustment, and timing-drive service. Engine chapters also address the corresponding cooling, fuel and engine-control systems.
The TDV6 timing-belt instructions distinguish timing tools from counterholding equipment and warn that using the timing pegs to lock the camshafts can damage the engine or tools.
Ride-height procedures identify when calibration is required after work on height sensors, suspension arms, the control module or body panels with suspension mounting points. This gives the workshop a reference for the follow-up setup associated with those repairs.
Hybrid Drive and Cooling Systems
The HEV transmission description identifies the ZF 8P70H and explains its hybrid drive assembly, engine disconnect clutch and electric transmission-fluid pump. Separate procedures address motor-generator and hybrid-drive components.
Battery-cooling instructions cover draining, filling and bleeding. The LHD and RHD rescue sheets identify high-voltage components and explain emergency deactivation.
HEV work requires suitably qualified personnel. The workshop instructions prohibit opening the high-voltage battery-pack casing or disassembling the electric power inverter converter casing.
Diagnostic Figures and Material-Specific Repairs
Illustrated references include adaptive-damping and air-suspension control diagrams, HEV engine-cooling and air-conditioning schematics, and a high-pressure fuel-pump schematic. DTC tables connect fault descriptions with possible causes and diagnostic actions.
The UK/EU maintenance sheet separates A and B services and adds requirements for arduous use. Workshop sections supply related torque tables, fluid specifications, alignment data, pressure-test information and service limits.
Body coverage includes tolerance checks and structural replacement procedures. Separate guidelines address corrosion rectification and coating preparation for plastic, aluminum and steel replacement parts. The aluminum guideline cautions against sanding through a new panel’s protective coating, which provides corrosion protection.
Examples of Valve-Clearance and Suspension-Height Data
For the V6 S/C 3.0L gasoline engine, the specifications list cold valve clearances of 0.18–0.22 mm at the intake and 0.23–0.27 mm at the exhaust, alongside the inspection and adjustment procedures.
Air-suspension specifications give nominal hub-center-to-wheel-arch heights of 471 mm at the front and 468 mm at the rear, measured with the vehicle at unladen weight.
