2002-2013 Hyundai Matrix Service Manual

Full service documentation for the Hyundai Matrix, covering all models from 2002 to 2013. This manual includes detailed repair procedures and technical specifications for various vehicle systems. Part number: 00000-00000.

4.5starstarstarstarstar_half(4)
visibility Preview Available
Hyundai 2002-2013 Hyundai Matrix Service Manual manual page preview - page 1 of

Sample pages from the 2002-2013 Hyundai Matrix Service Manual manual

Hyundai 2002-2013 Hyundai Matrix Service Manual manual preview page 1 - thumbnail
Hyundai 2002-2013 Hyundai Matrix Service Manual manual preview page 2 - thumbnail
Hyundai 2002-2013 Hyundai Matrix Service Manual manual preview page 3 - thumbnail
info_outline Click thumbnails to preview different pages
$17.30 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Hyundai Models Covered & Key Technical Specifications

Models: Hyundai Matrix
Build Years: 2002–2013
Technical Data:

  • Door glass thickness: 3.2 mm (front/rear), 3.5 mm (rear fixed/tailgate)
  • Windshield glass thickness: 5 mm
  • Headlamp bulb rating: 60W / 55W (high/low beam)
  • Windshield wiper motor: 12V DC ferrite magnet
  • Transmitter battery: Lithium CR2032 (3V, 220mA/h)
  • Front seat mounting bolt torque: 35–55 Nm
  • Door hinge to body bolt torque: 34–42 Nm
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
31904 / Carol Gomez
File Size:
73.05 MB
File Type:
ZIP
Language:
English
Printable:
Yes
Category:
Automobile
Last updated / verified
Mar 25, 2025

Hyundai Manual Features & Content Preview

Hyundai Matrix 2002–2013 Body and Electrical Service Data

  • Covers 2002–2013 Hyundai Matrix variants, providing technical specifications for exterior body components, interior trim, and body electrical systems
  • Official manufacturer publication with identified ESNB and ETNC body and electrical series documentation
  • Contains 51 exploded-view component diagrams and 15 torque specification tables for body and interior hardware
  • File link appears in your order confirmation straight away
  • Suitable for printing individual sections for shop-floor use
  • This 100-page manual is the primary reference for 2002–2013 Hyundai Matrix chassis-specific interior/exterior removal and electrical system troubleshooting

Body and Interior Documentation

The 2002–2013 Hyundai Matrix documentation details the structural assembly and trim configuration for the entire vehicle body. Expert sections address the removal and installation of exterior elements including hoods, doors, tailgates, and bumpers, while interior segments provide guidelines for consoles, dash assemblies, and seating configurations. The technical content focuses on precise component identification and alignment, including specific procedures for windshield and quarter glass glass sealing techniques and molding installation.

Electrical System and Diagnostic Preview

The Hyundai Matrix body electrical system section covers circuitry for audio units, multi-function switches, and integrated control modules. Wiring schematics and pinout diagrams are provided for the audio systems, ETACS control module, and internal instrument cluster illumination. The manual details standard electrical values such as a 12V rated voltage, system temperature environmental limits, and specific bulb wattages for all exterior lamps and internal warning indicators.

Reference only — always consult a certified technician before performing service on this equipment. Understanding factory workshop documentation is vital for proper vehicle maintenance. An official Hyundai Matrix OEM service manual covering 2002–2013 builds, documenting body, interior, and electrical specifications essential for professional-grade component removal and installation procedures.

Document Reference: ESNB and ETNC series documentation

Manual FAQ, Purchase & Download Details

What specification tables and technical data for body components are provided in the manual? keyboard_arrow_down

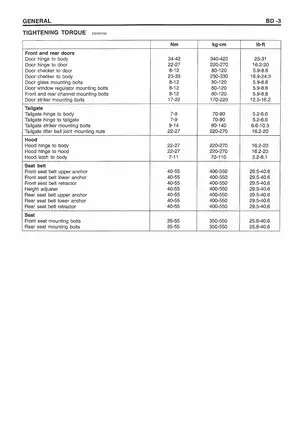

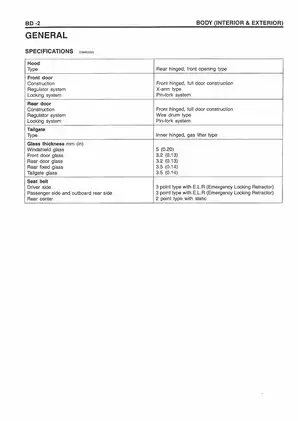

Document includes detailed specification tables for glass thickness, regulator systems, and door construction types. Tightening torque specification tables are also provided for various body assembly fasteners, including door hinges and seat belt anchors.

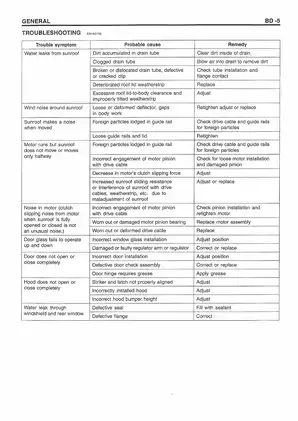

Is there a section in the manual that lists common trouble symptoms for the sunroof and door assemblies? keyboard_arrow_down

Document contains a troubleshooting section that references common symptoms for sunroof and door operation along with the associated probable causes.

Are wiring diagrams or electrical connector references included in the sections covering door and tailgate components? keyboard_arrow_down

Manual contains sections that reference the electrical connections for the tailgate actuator, rear wiper motor, and various door lock components. These references assist in locating wire connectors within the vehicle body architecture.

Which pages feature exploded view diagrams for the sunroof and body components? keyboard_arrow_down

Document includes exploded view illustrations for the sunroof components, tailgate assemblies, and interior trim layouts.
