Daihatsu Models Covered & Key Technical Specifications

Model & Model Codes: Terios II (J200: J200LG, J200RG; J210: J210LG, J210RG; J211: J211LG)

Sub-models / Variants: LHD, RHD, Manual Air Conditioner; 2WD, 4WD; engines: 3SZ-VE, K3-VE; transmissions: automatic (A4Q-D1), manual (M5S)

Model Years: 2006–2014 (2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014)

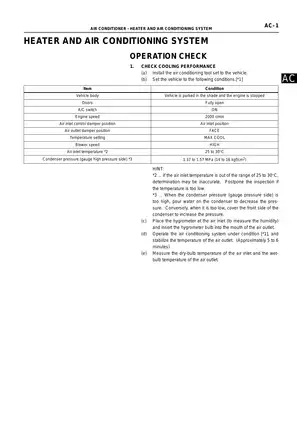

  • Engine speed (cooling performance test): 2000 r/min

  • Air inlet temperature range: 25–30°C

  • Condenser pressure (high pressure side): 1.37–1.57 MPa (14–16 kgf/cm2)

  • Refrigerant charge volume (RHD): 300 ± 30 g

  • Refrigerant charge volume (LHD): 350 ± 30 g

  • Cooler thermistor resistance (0°C): 4.79–4.91 kΩ

  • Cooler thermistor resistance (15°C): 2.25–2.44 kΩ

  • Magnetic clutch air gap: 0.5 (+0.15, -0.20) mm

Daihatsu Manual Features & Selected Content Preview

Daihatsu Terios II J2-series service manual, P/N 9708, February 2006 edition, for J200, J210 and J211 models. Procedures distinguish 2WD and 4WD applications and identify left- and right-hand-drive differences where relevant.

Searchable Chapter PDFs and Diagram Detail

Text search and circuit labels: The PDFs contain searchable text but no embedded PDF bookmarks. Small pin and connector labels in dense circuit diagrams are best read with zoom.

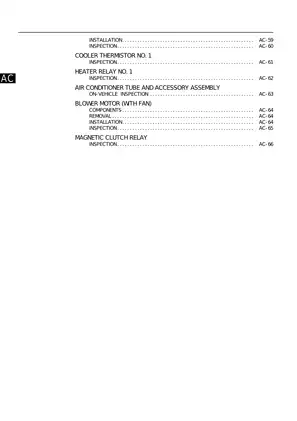

The ZIP contains 49 printable PDFs totaling 2,219 pages: 2,153 numbered service and reference pages, 63 chapter-contents pages, a one-page foreword and a two-page index. These introductory and contents pages are included in the total.


Engine, Driveline and Vehicle-System Diagnostics

The following selected workshop topics illustrate the coverage. Additional sections address parking-brake cable replacement and wiper-motor testing.

  • Engine repair: Step-by-step procedures for valve-clearance adjustment, timing-chain and camshaft replacement, cylinder-head gasket work, and engine removal and installation for 3SZ-VE and K3-VE engines.

  • Transmission service: Automatic-transmission stall and pressure tests, valve-body replacement and solenoid inspection, plus manual-transmission removal and installation and clutch repair.

  • Differentials and transfer: Front and rear differential disassembly and reassembly with backlash, bearing-preload and tooth-contact checks; transfer-actuator testing, oil-seal replacement and unit removal.

  • Brake control: Separate ABS/EBD and ABS/TRC/VSC/BA with EBD diagnostics, test modes, brake-actuator bleeding and sensor zero-point acquisition procedures.

  • Heating and A/C: Heater-unit and evaporator removal, compressor and magnetic-clutch service, refrigerant-system testing, and heater-control cable adjustment.

  • Electrical diagnosis: EFI circuit diagrams, ECU terminal tables, oscilloscope waveforms, data lists and active tests, with separate CAN and LIN communication troubleshooting.

  • SRS and restraints: Fault diagnosis and component replacement for driver, passenger, side and curtain airbags, together with seat-belt pretensioner service.

This manual is suited to technicians familiar with vehicle repair and electrical testing, with access to workshop lifting equipment, measuring instruments and the DS-II diagnostic tool.

Engine Repair and Supporting Systems

Compression testing and front and rear crankshaft oil-seal replacement extend the mechanical coverage beyond routine service. Full engine bottom-end rebuilding is outside this vehicle manual’s repair coverage.

A camshaft timing-sprocket caution explains how pressure against a misaligned knock pin can damage the sealing surface and cause seal failure.

Fuel, cooling and lubrication: Injector inspection and fuel-pump and tank replacement are documented separately for the two engine types. Radiator, water-pump and thermostat procedures accompany cooling-fan checks; lubrication sections provide oil-pressure inspection and oil-pump replacement.

Transmission, Driveline and Chassis Work

Automatic-transmission diagnosis: Separate shift and lockup schedules distinguish 2WD and 4WD operation. Freeze-frame data and fail-safe charts support fault analysis, while the replacement procedures identify when learned-value initialization is required. Disconnecting the battery alone does not erase those learned values.

Complete internal transmission overhaul is outside this publication’s scope. Clutch coverage includes pedal adjustment, master-cylinder replacement, release-cylinder disassembly and clutch-unit inspection.

Chassis repair: Front drive-shaft disassembly and axle-bearing procedures accompany front strut service, wheel alignment, front disc and rear drum brake work, and hydraulic steering-rack disassembly and reassembly. Vehicles without ABS have separate proportioning-valve inspection procedures.

Heating, Ventilation and Air Conditioning

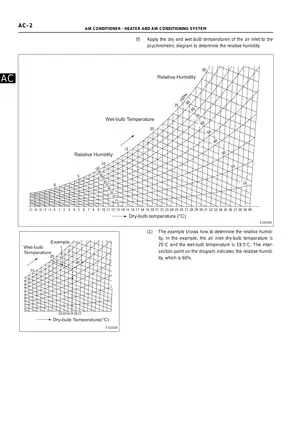

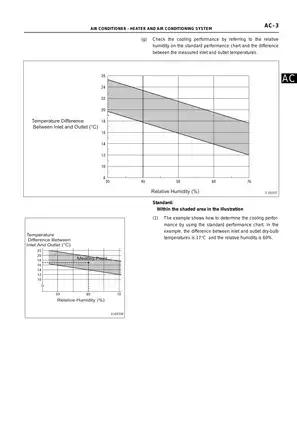

Cooling-performance diagnosis uses measured temperatures, humidity and a psychrometric diagram. Refrigerant-pressure checks and sight-glass diagnosis address poor cooling, while the Blower Motor Circuit and Magnetic Clutch Relay Circuit diagrams support electrical fault isolation.

Pressure-switch and cooler-thermistor tests provide component-level checks. Repair procedures also cover the condenser with receiver, expansion valve and heater-control cables, with refrigerant charging specifications distinguished by steering configuration.

The R134a precautions specify ND-OIL 8 and explain how incompatible R12 compressor oil can impair lubrication and swell rubber parts, causing compressor lockup or refrigerant leakage.

Audio, Body Electrical and Network Faults

Factory audio: Radio/CD inspection mode includes display and panel-switch checks and AVC-LAN trouble-code interpretation. Poor-reception and noise diagnosis distinguish antenna and shielding faults from radio interference.

The Audio System circuit diagram, connector chart, stereo-unit terminal tables and front and rear speaker inspections support diagnosis before component replacement. Tuner, speaker and antenna removal and installation procedures are also included.

Engine and network circuits: The EFI System (3SZ-VE, K3-VE) diagrams distinguish General Export and EU specifications. CAN Communication System diagrams and terminal checks support diagnosis of open circuits, short circuits and control-unit communication failures.

Body electrical coverage adds immobilizer troubleshooting, wireless door-lock transmitter registration and power-window initialization. Related body procedures cover door alignment, windshield replacement, headlight aiming, seats and trim.

Workshop Equipment and Publication Scope

Preparation tables identify equipment by application, including the DS-II diagnostic tool (09960-97001) and A/T pressure-gauge adapter SST 09325-87201. Component illustrations identify tightening torques, lubrication points and non-reusable parts; reference sections supply capacities, inspection limits and electrical test specifications.

The separately referenced wiring-diagram and body-repair manuals are not included. System-specific circuit diagrams remain part of this service manual.

Selected Valve-Clearance and Compression Specifications

For both 3SZ-VE and K3-VE engines, cold valve-clearance specifications are 0.145–0.235 mm for intake valves and 0.275–0.365 mm for exhaust valves.

The compression reference lists a standard pressure of 1.47 MPa at 330 r/min and a limit of 1.08 MPa, providing both nominal and limit data for the documented engine inspection.

Reference only — always consult a certified technician before performing service, especially on refrigerant, brake, and SRS systems.
