Ford F-150 2014 Workshop Manual
7,684 Pages • Printable PDF • 335.92 MB • Download
Ford Models Covered & Key Technical Specifications
Model & Model Code: F-150 (powertrain calibration vehicle-line code: F6)
Sub-models / Variants: Regular Cab, SuperCab, Crew Cab, 2WD, 4WD, SVT Raptor, Harley-Davidson, Lariat Limited, 3.5L GTDI, 3.7L, 5.0L, 6.2L
Model Years: 2011–2014 (2011, 2012, 2013, 2014)

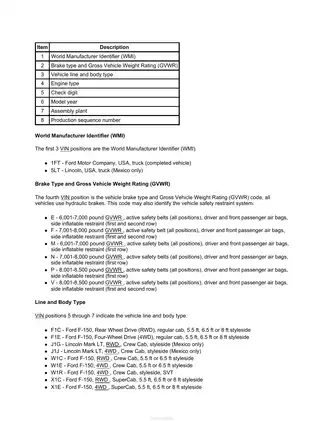

VIN positions 5–7: Regular Cab: F1C (2WD), F1E (4WD); SuperCab: X1C (2WD), X1E (4WD); Crew Cab: W1C (2WD), W1E (4WD); SVT Raptor: X1R (SuperCab, 4WD), W1R (Crew Cab, 4WD)

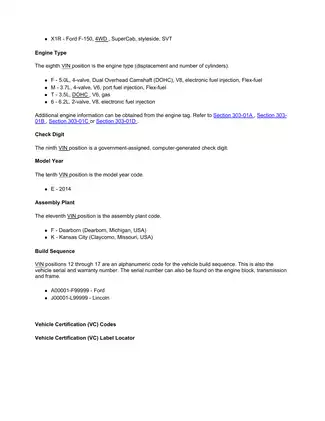

Engine identification — VIN position 8: T = 3.5L GTDI V6; M = 3.7L V6; F = 5.0L 4-valve V8; 6 = 6.2L 2-valve V8
-
Engine displacement: 3.5L, 3.7L, 5.0L, 6.2L
-
Engine types: V6 (3.5L GTDI, 3.7L), V8 (5.0L, 6.2L)
-
Transmission: 6R80 6-speed automatic (VC transmission code: 6; RWD and 4WD applications, with separate early- and late-build procedures)
-
Transfer case — 4WD: Borg-Warner 4419 Electronic Shift-On-The-Fly (ESOF); Borg-Warner 2-speed torque-on-demand
-
Wheelbases: 126 in, 133 in, 145 in, 157 in, 163 in
-
Front toe: 0.20° ± 0.20° (total)
-
Front camber: RWD and 4WD except SVT Raptor: LH -0.2° ± 0.75°, RH -0.4° ± 0.75°; SVT Raptor: LH and RH -0.45° ± 0.75°
-
Cam bolt torque: 350 Nm (258 lb-ft)
-
Lower ball joint nut torque: 175 Nm (129 lb-ft)
-
Tie-rod jam nut torque: 103 Nm (76 lb-ft)
Ford Manual Features & Selected Content Preview
Ford’s 2014 F-150 Workshop Manual covers Rear-Wheel Drive and Four-Wheel Drive Regular Cab, SuperCab, and SuperCrew/Crew Cab styleside configurations, including SVT Raptor. Coverage is for the 2014 model year only.
Searchable Text, Bookmarks, and Diagram Detail
Finding procedures and reading diagrams: Searchable PDF text and embedded bookmarks provide access to General Information, Chassis, Powertrain, Electrical, and Body and Paint. Text inside illustrations is not consistently searchable. Small hydraulic-circuit labels and connector pin numbers need zooming; some lettering remains soft at higher magnification.
One printable English PDF contains 7,684 pages, including 550 blank or separator-only continuation pages.
Powertrain Overhaul, Chassis Service, and Module Diagnosis
These selected coverage highlights are not a complete contents list. Further topics include fuel-tank and fuel-line service and cruise-control diagnosis.
-
Engine repair: Engine removal and internal disassembly/assembly for 3.5L GTDI, 3.7L, and 5.0L (4V) engines; in-vehicle timing, camshaft/phaser, lubrication, and valve-train work for 6.2L (2V).
-
Transmission and driveline: Early- and late-build 6R80 overhaul, clutch and main-control service, transfer-case repair, driveshaft balancing, and front and rear differential work.
-
Chassis and brakes: RWD/4WD suspension repair, ride-height and alignment checks, TPMS training, brake bleeding, ABS/stability-control diagnosis, and EPAS/HPAS steering-gear replacement.
-
Electrical and modules: Starter-circuit and charging-system tests, Ford DTC charts, pinpoint tests, network diagnosis, Programmable Module Installation, PATS/key procedures, APIM service, and parking-aid checks.
-
Climate, restraints, and body: HVAC diagnosis and component replacement, SRS/OCS operations, cab-specific body repairs, panel sectioning, corrosion protection, and weld-bonded repairs.
-
Workshop references: Torque tables, capacities, wear and clearance data, hydraulic circuit diagrams, exploded views, connector layouts, diagnostic worksheets, and Rotunda special-tool references.
The diagnostic sections assume Ford-specific diagnostic knowledge; this manual suits technicians familiar with scan-tool testing and the specified workshop equipment.
Engine Repair Depth and Diagnostic References
The engine chapters distinguish the engine families rather than treating them as mechanically interchangeable. The 3.5L GTDI material covers turbocharger and direct-injection hardware, valve-clearance checks, timing-drive repair, cylinder-head and piston work, seals, camshafts, cooling, and final installation. Step-by-step engine teardown and assembly procedures also appear in the 3.7L and 5.0L sections.
6.2L scope: This section focuses on in-vehicle camshaft/phaser, timing, rocker-arm, valve-spring, valve-seal, front-cover, oil-pan, and lubrication repairs. It does not provide a complete engine overhaul sequence or dedicated cylinder-head removal and overhaul procedures.
Compression and cylinder-leakage testing support mechanical fault isolation. The leakage-test discussion relates escaping air to intake valves, exhaust valves, piston rings, head-gasket leakage, or the cooling system, helping distinguish possible causes of a low compression reading.
Separate diagnostic publications: Complete cell-based circuit schematics and engine driveability/emissions fault isolation require Ford’s referenced Wiring Diagrams and Powertrain Control/Emissions Diagnosis publications. Those publications are not included.
6R80 Overhaul and Axle Setup
The 6R80 material includes sensor and PID references, DTC and symptom charts, output-state-control tests, shift-point road testing, torque-converter diagnosis, solenoid-body strategy procedures, cooler backflushing, and contamination inspection. Clutch plate quantities and selected internal parts are identified by engine and transmission build; transmission removal is separated for RWD and 4WD.
Diagrams and connector references: The Clutch Application Chart, Torque Converter Hydraulic Circuits, and Transmission Connector Layouts relate clutch operation, oil flow, and terminal assignments to the diagnostic material.
Driveline procedures address driveshaft runout, U-joints, halfshafts, Integrated Wheel Ends, electronic-shift and torque-on-demand transfer cases, and 8.8- and 9.75-inch rear axles. Differential work covers disassembly, bearing and seal replacement, ring-and-pinion contact, backlash, preload, limited-slip assemblies, and final operational checks.
Suspension, Steering, and NVH Diagnosis
Alignment data separates RWD, standard 4WD, and SVT Raptor. Ride-height references distinguish cab style, wheelbase, engine, Heavy Duty and Max Trailer Tow configurations. Related procedures address vehicle lean, thrust angle, ball-joint deflection, camber/caster/toe adjustment, control arms, wheel knuckles, hubs, stabilizer bars, shocks, coil and leaf springs, shackles, and tip isolators.
Steering coverage: HPAS filling, flushing, and purging procedures accompany steering-component service. EPAS operation and steering-gear replacement are covered, but its interactive diagnostic procedure is referred to the online Workshop Manual.
Ford’s NVH material follows a symptom-to-system-to-component-to-cause path. Customer interviews and pre-drive checks lead into acceleration, neutral coast-down, downshift, steering-input, brake, bump, engine run-up, accessory-isolation, and cold-soak tests.
Frequency worksheets and the Tire Speed and Frequency Chart help separate tire/wheel, driveshaft, engine, accessory, and engine-firing vibration orders.
Named equipment includes the Electronic Vibration Analyzer, MTS 4000 Driveline Balance and NVH Analyzer, EngineEAR, ChassisEAR, Vibrate Software, an ultrasonic leak detector, and a squeak-and-rattle repair kit. These support diagnosis of steering-wheel shake, driveline shudder, axle howl, suspension clunks, accessory noise, body rattles, and wind or water leaks.
Component damage cautions: Incorrect suspension-bushing clamp load can damage bushings. Improper CV-shaft/IWE spline engagement during axle-nut installation can damage the Integrated Wheel End.
Coil-over assemblies contain substantial stored spring energy. Stable frame support and a suitable spring compressor are required when separating the spring and shock assembly.
Electrical, HVAC, Restraints, and Body Repairs
Electrical coverage extends to exterior/interior lighting, audio and SYNC, instruments and message-center functions, trailer-brake controls, power accessories, and module replacement. Network Topology diagrams distinguish CAN connections.
Configuration and related service procedures address as-built data, PATS parameter resets, misfire neutral-profile correction, self-tests, and initialization routines. Some APIM/network diagnostic branches direct the reader to the online Workshop Manual, and programming work requires the specified diagnostic tools and service access.
HVAC sections distinguish manual and electronic climate controls and cover refrigerant recovery/charging, leak testing, compressors, condensers, evaporators, heater cores, blower controls, and actuator calibration. Dedicated depowering and handling procedures apply to SRS work; refrigerant service requires recovery equipment.

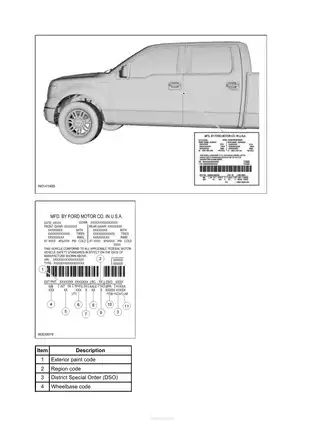

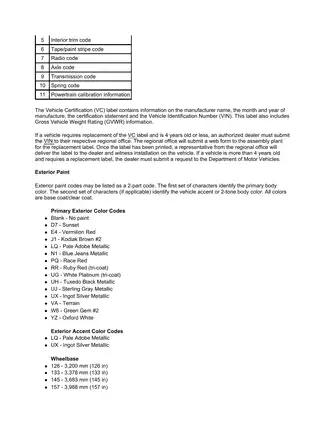

Body and Paint covers doors, glass, seats, mirrors, locks, wipers, roof-opening panels, pickup-box and tailgate components, bumpers, trim, and body alignment. Identification material also distinguishes axle and spring codes and powertrain calibrations, with separate Mexico-market Lincoln Mark LT references where applicable.
A Preview of Valve-Clearance and Ball-Joint Data
For the 3.5L GTDI engine at room temperature, valve tappet clearance is specified as 0.15–0.25 mm intake and 0.360–0.460 mm exhaust in the cylinder-head and valve-train tables.
The suspension specifications list ball-joint deflection of 0–0.8 mm for the lower joints and 0–0.2 mm for the upper joints, for all vehicles. These values accompany the ball-joint inspection material.
