Ford F-150 2009 Repair & Owner's Manual Collection
7,345 Pages • ZIP Download: 76 Printable PDFs • 80.54 MB
Ford Models Covered & Key Technical Specifications
Model: F-150
Sub-models / Variants: Platinum, Styleside, Flareside, 2WD, 4WD
Model Year: 2009
-
Engine variants: 4.6L (2V), 4.6L (3V), 5.4L (3V) V8 gasoline engines
-
Automatic transmissions: 4R75E four-speed (code Q; covered in the 4R70E/4R75E service article), 6R80 six-speed (code 6); RWD and 4WD procedures
-
Radio frequencies (AM): 530, 540–1700, 1710 kHz
-
Radio frequencies (FM): 87.7, 87.9–107.7, 107.9 MHz
-
Headlamp bulbs: H13/9008
-
Front park/turn lamp bulbs: 3157NA (natural amber)
-
Fog lamp bulbs: 9140
-
Oil change service interval: 7,500 miles (12,000 km) or six months at the 100% oil-life setting; follow the message-center oil-change indication
Ford Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

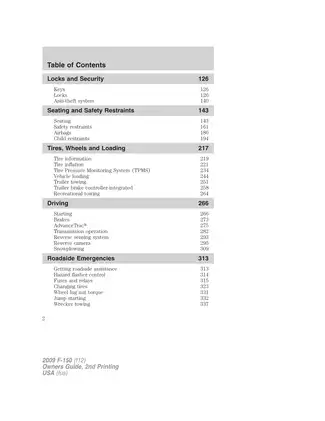

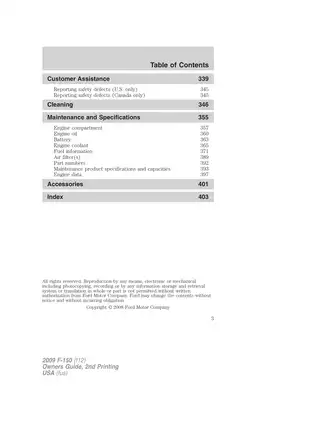

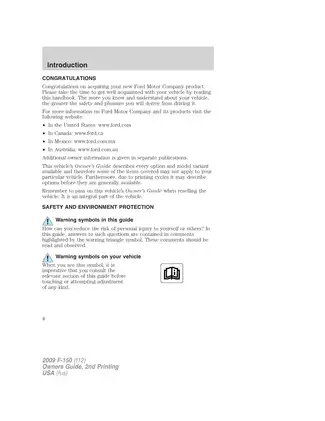

| Ford 2009 F-150 Owner's Guide — U.S. edition, 2nd Printing; copyright 2008 | 409 |
| 2009 F-150 — Four-Wheel Drive Systems | 151 |
| 2009 F-150 — Engine: 4.6L (2V) | 330 |
| 2009 F-150 — Engine: 4.6L (3V) | 373 |
| 2009 F-150 — Front Suspension: 4WD | 17 |
| 2009 F-150 — Engine: 5.4L (3V) | 416 |
| 2009 F-150 — Supplemental Restraint System | 407 |
| 2009 F-150 — Passive Anti-Theft System (PATS) | 41 |
| 2009 F-150 — Automatic Transmission: 4R70E/4R75E | 379 |
| 2009 F-150 — Automatic Transmission: 6R80 | 501 |
| 2009 F-150 — Brake System: General Information | 23 |
| 2009 F-150 — Bumpers | 7 |
| 2009 F-150 — Charging System | 40 |
| 2009 F-150 — Electronic Compass | 13 |
| 2009 F-150 — Speed Control | 22 |
| 2009 Gasoline Models — Diagnostic Methods | 25 |
| 2009 F-150 — Handles, Locks, Latches and Entry Systems | 92 |
| 2009 F-150 — Body Closures | 17 |
| 2009 F-150 — Accessory Drive | 12 |
| 2009 F-150 — Driveline System: General Information | 33 |
| 2009 F-150 — Driveshaft | 22 |
| 2009 F-150 — Electrical Component Locations | 60 |
| 2009 F-150 — Electronic Engine Controls | 26 |
| 2009 F-150 — Engine Emission Control | 11 |
| 2009 F-150 — Engine Cooling | 84 |
| 2009 F-150 — Engine System: General Information | 83 |
| 2009 F-150 — Information and Entertainment Systems | 222 |
| 2009 F-150 — Evaporative Emissions | 16 |
| 2009 F-150 — Exhaust System | 24 |
| 2009 F-150 — Exterior Lighting | 178 |
| 2009 F-150 — Exterior Trim and Ornamentation | 48 |
| 2009 F-150 — Front Drive Axle/Differential | 182 |
| 2009 F-150 — Front Disc Brake | 8 |
| 2009 F-150 — Front Drive Halfshafts | 21 |
| 2009 F-150 — Front End Body Panels | 11 |
| 2009 F-150 — Fuse & Relay Information | 7 |
| 2009 F-150 — Horn | 13 |
| 2009 F-150 — Climate Control | 53 |
| 2009 F-150 — Hydraulic Brake Actuation | 33 |
| 2009 F-150 — Engine Ignition: 4.6L (2V) | 4 |
| 2009 F-150 — Engine Ignition: 4.6L (3V) | 6 |
| 2009 F-150 — Engine Ignition: 5.4L (3V) | 5 |
| 2009 F-150 — Instrument Panel and Console | 44 |
| 2009 F-150 — Intake Air Distribution & Filtering | 4 |
| 2009 F-150 — Interior Lighting | 48 |
| 2009 F-150 — Interior Trim and Ornamentation | 39 |
| Ford Trucks 1985–2010 — Maintenance-Light Reset Procedures | 15 |
| 2009 F-250–F-550 Super Duty — ZF Six-Speed Manual Transmission | 138 |
| 2009 F-150 — Instrumentation, Message Center and Warning Chimes | 148 |
| 2009 F-150 — Parking Aid | 43 |
| 2009 F-150 — Parking Brake and Actuation | 15 |
| 2009 F-150 — Pickup Bed and Platform Bed | 18 |
| 2009 Gasoline Models — Pinpoint Tests | 689 |
| 2009 F-150 — Power Brake Actuation | 3 |
| 2009 F-150 — Power Steering | 29 |
| 2009 F-150 — Rear Axle/Differential: Ford 8.8-Inch Ring Gear | 103 |
| 2009 F-150 — Rear Axle/Differential: Ford 9.75-Inch Ring Gear | 134 |
| 2009 F-150 — Rear Disc Brake | 9 |
| 2009 F-150 — Rear Suspension | 7 |
| 2009 F-150 — Rear View Mirrors | 83 |
| 2009 F-150 — Front Suspension: RWD | 30 |
| 2009 F-150 — Seating | 380 |
| 2009 F-150 — Starting System: Gasoline | 31 |
| 2009 F-150 — Steering Column Switches | 34 |
| 2009 F-150 — Steering Column | 36 |
| 2009 F-150 — Steering System: General Information | 24 |
| 2009 F-150 — Roof Opening Panel | 36 |
| 2009 F-150 — Suspension System: General Information | 29 |
| 2009 F-150 — Transmission Cooling | 21 |
| 2009 F-150 — Transfer Case | 85 |
| 2010 F-150 — DTC Index | 220 |
| 2009 F-150 — Vehicle Dynamic Systems | 62 |
| 2009 F-150 — Wheels & Tires | 52 |
| 2009 F-150 — Glass, Frames and Mechanisms | 90 |
| 2009 F-150 — Wipers and Washers | 36 |
| 2009 F-150 — System Wiring Diagrams | 185 |
Use the Owner's Guide for vehicle operation, towing and routine owner checks, and the service articles for component diagnosis, repair and reassembly specifications. The service material consists of individual articles exported to PDF in February 2011, rather than one bound OEM workshop publication.
Coverage boundaries: Repair coverage centers on the 2009 gasoline F-150. The 2010 publication is a DTC index, not a complete second model-year repair manual. The ZF six-speed manual-transmission article applies to F-250 through F-550 Super Duty, not the F-150.
PDF Search, Bookmarks and Diagram Detail
Search and diagram access: Text search is available in the Owner's Guide and service text, but the wiring-diagram labels are not searchable. Embedded PDF bookmarks are available in the Owner's Guide only. Small wiring labels require zooming.
The ZIP download contains 76 printable English-language PDFs totaling 7,345 pages. This total includes two supplementary pages within the Owner's Guide.
Engine, Transmission and Vehicle-System Procedures
The following is a selection of covered work, rather than a complete contents list. Accessory-drive diagnosis and windshield-wiper/washer testing are additional examples.
- Gasoline engine repair: Step-by-step procedures for engine removal, timing components, cylinder heads, valve train, lubrication components and internal disassembly.
- Automatic transmissions: Removal, overhaul and installation procedures, clutch and hydraulic-system testing, mechatronic service, cooler cleaning and adaptive road testing.
- Driveline and four-wheel drive: Transfer-case overhaul, TCCM and Integrated Wheel End diagnosis, driveshaft service, and differential setup.
- Brakes, suspension and steering: Brake diagnosis and bleeding, ABS/HCU service, suspension and hub replacement, alignment checks, and power-steering flushing and purging.
- Restraint systems: SRS fault isolation, component replacement, Occupant Classification Sensor system reset, and zero-seat-weight testing.
- Electrical diagnosis: Engine pinpoint tests, starting and charging checks, system wiring diagrams, connector references and electrical component-location graphics.
- Body and cab systems: HVAC component service, PATS and entry-system diagnosis, instrumentation, entertainment, seating, mirrors, windows and roof-opening-panel procedures.
The repair material is suited to professional technicians and advanced owners who can work with IDS or equivalent scan equipment, precision measuring tools, and proper lifting and support equipment; it assumes working knowledge rather than teaching basic shop practice.
Engine Repair and Cooling
The engine articles address the 4.6L 2-valve, 4.6L 3-valve and 5.4L 3-valve gasoline engines. Coverage includes in-vehicle timing work, cylinder-head and valve-train service, oil pump and oil pan work, lower-end disassembly and inspection, and engine removal and installation.
The 3-valve sections add VCT housings, cam phasers and camshaft timing. They warn that incorrect camshaft or timing-component positioning can damage valves and pistons. Referenced equipment includes Crankshaft Holding Tool 303-448 and Cam Phaser Locking Tool 303-1046.
Cooling-system material covers coolant-loss and overheating diagnosis, draining, filling and bleeding, radiator service, and cooling-fan components. Post-repair engine guidance includes Misfire Monitor Neutral Profile Correction using a scan tool.
Automatic Transmission Diagnosis and Overhaul
The 4R70E/4R75E and 6R80 articles cover RWD and 4WD layouts. Procedures extend from removal and installation to internal clutch, pump, geartrain and valve-body work, with mechatronic service in the 6R80 material.
Diagnostic references include air and line-pressure testing, road tests, cooler backflushing and cleaning, and the 6R80 adaptive drive cycle. The 6R80 Transmission Major Components Cutaway View and Hydraulic Circuit Identification and Function Chart connect component layout with hydraulic operation. Transmission Fluid Fill Tube 307-570 is among the specified service tools.
Transfer Cases, Driveshafts and Axles
Mechanical- and electronic-shift 4WD coverage includes TCCM and Integrated Wheel End fault isolation, transfer-case disassembly and assembly, driveshaft and U-joint service, and front drive-axle repair.
Rear-axle articles cover Ford 8.8-inch and 9.75-inch assemblies, including conventional, Traction-Lok and electronic locking differential configurations as applicable. Backlash, bearing preload, tooth-contact patterns and shim selection are covered, with an Exploded View of Electronic Locking Differential Field Coil and tools such as Drive Pinion Depth Gauge/Aligner 205-226.
The axle procedures warn that backing off the pinion nut to reduce bearing preload can cause component damage; the specified correction involves renewing the collapsible spacer and pinion nut.
Chassis and Restraint Service
Brake coverage includes diagnosis, bleeding, disc-brake component replacement, parking-brake work, and ABS/HCU and AdvanceTrac components. Separate RWD and 4WD front-suspension articles accompany rear-suspension, wheel-bearing, hub and halfshaft procedures.
Steering material adds assist diagnosis, flushing and purging. Tire information includes TPMS sensor activation and training.
The SRS article provides fault-isolation charts and Restraints Control Module System Diagrams, along with Occupant Classification Sensor system reset and zero-seat-weight testing. Follow the applicable article's SRS depowering, brake-system, fuel/refrigerant handling, and vehicle-support precautions before beginning repair work.
Electrical Fault Isolation and Module Setup
Gasoline-engine pinpoint tests address no-start conditions, reference-voltage and sensor faults, fuel delivery, misfire, ignition, electronic throttle control, VCT, EVAP, emissions and network/readiness concerns. DTC charts, PID checks, connector references and component tests support fault isolation before component removal or replacement.
The wiring article contains 92 named system diagrams, while the component-location article provides 42 location graphics. Examples include the 4WD Circuit, Electronic and 4.6L Engine Performance Circuit, with separate coverage for starting, charging, lighting and trailer circuits.
Programming and setup material includes PATS keys and parameter reset, RKE and keypad functions, PCM VID-block programming guidance, and 6R80 TCM calibration requirements. These tasks assume access to compatible diagnostic software and the applicable vehicle calibration or As-Built data.
Cab Equipment and Owner Information
Cab-system articles cover the factory Trailer Brake Control module, HVAC, instrumentation and message center, parking aid, SYNC/navigation/audio, and memory and climate-controlled seats. Other sections address mirrors, doors, windows, the roof opening panel, tailgate and power running boards, including compass calibration and roof-panel initialization.
The Owner's Guide addresses standard and Platinum instrument clusters; Regular Cab, SuperCab and SuperCrew configurations; and Styleside and Flareside beds. It covers entertainment, climate, lighting, driver controls, seating and restraints, towing and integrated trailer-brake operation, TPMS, AdvanceTrac, roadside procedures, and maintenance/specification data. Individual features remain equipment-dependent.
A Preview of 6R80 Clutch End-Play Specifications
The 6R80 end-play table specifies forward clutch (A) end play of 0.71–1.10 mm and direct clutch (B) end play of 0.50–1.30 mm. These are clutch-specific inspection specifications used alongside the internal assembly procedures and clutch-plate selection data.
