Polaris MSX 140 Personal Watercraft Factory Service & Repair Manual (P/N 9918121)

• Document identity and model coverage: Official 2003 Polaris OEM service manual, P/N 9918121, supplied as a 196-page PDF. The model, pump, EMM, and final wiring references are keyed to MSX 140 W035303CA/B.
• W120HO-DFI engine repair: Covers engine removal and installation, complete disassembly and reassembly, piston, cylinder, rod, and bearing inspection, crankshaft truing and indexing, torque sequences, oil-pump adjustment and bleeding, and cooling/exhaust service.
• FICHT direct-injection diagnostics: Includes fuel and oil routing, EMM pinouts and service-code failure modes, PODIAG setup, injector/ignition/fuel-pump static tests, cylinder-drop testing, timing verification, live engine monitoring, and EMM replacement data transfer.
• Dominator 2 jet-pump and driveline service: Details pump and bearing-carrier removal, impeller and driveshaft inspection, stator overhaul, pump-to-engine alignment, and intake-scoop/ride-plate removal, resealing, and installation.
• Hull, controls, and electrical systems: Documents steering-post shimming, steering and reverse cable adjustment, Enhanced Steering Performance diagnosis, gauge/sender/switch testing, starter-motor disassembly and troubleshooting, gelcoat repair, and footpad replacement.
• Factory reference material: Provides component-specific torque and fastener tables, pressure and electrical test specifications, capacities, clearance and wear limits, troubleshooting charts, connector views, exploded assemblies, and wiring schematics.

Exact Model and Shop Scope

This factory publication covers the 2003 MSX 140 with the 1192cc three-cylinder Polaris Liberty Marine High Output 1200 DI engine, identified as W120HO-DFI-01A or B. In the model code, C denotes the 50-state domestic configuration and A/B identifies the color option. Although the identification legend also defines D and I market codes, the model-specific specifications, pump data, EMM information, and wiring sheet in this manual are labeled W035303CA/B. Polaris lists the 2003 MSX four-stroke models under a separate service manual, P/N 9918569.

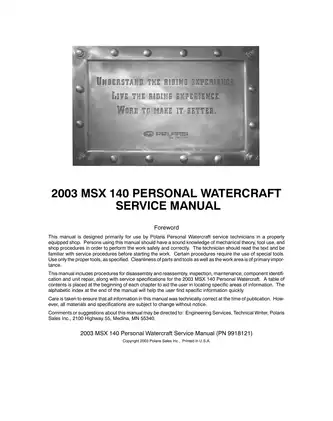

Polaris states that this book was designed primarily for personal-watercraft service technicians in a properly equipped shop and assumes sound knowledge of mechanical theory, tool use, and shop procedures. It is therefore suited to experienced mechanics with the required measuring equipment and special tools, not as a first-time repair primer. Fuel-system, high-voltage ignition, running-engine, and jet-pump work also calls for the craft to be securely supported and the manual's isolation and workshop-safety procedures to be followed.

Procedures Beyond Routine Maintenance

The maintenance chapter goes well beyond a service schedule. It covers compression testing, cylinder-head, cylinder-base, and exhaust-manifold re-torque work, oil-pump setting and line bleeding, cooling-system flushing, saltwater corrosion treatment, seasonal storage and fogging, bilge-siphon service, hydrolock diagnosis, and impeller-clearance checks. Internal engine coverage includes Nicasil cylinder evaluation, piston/ring and connecting-rod checks, crankshaft runout and truing, crankcase sealing, cylinder alignment to the exhaust manifold, stator/flywheel assembly, and final oil-pump setup.

The injection chapter maps EMM pins and fault codes to the TPS, temperature and barometric sensors, fuel pump, injectors, ignition coils, stator, and crankshaft-position circuit. Its PODIAG material is period-correct and assumes access to a serial-port/DOS-capable laptop, Polaris diagnostic software 2874492, communication cable 2872454, adapter PW-45776, and service-power connector 2872456. The required-tool table also identifies the crankshaft truing stand 2870569, driveshaft removal tool PW-46593, alignment coupler PW-46592, and pump alignment tool 2871343.

Diagrams, Repair Data, and Model-Specific Cautions

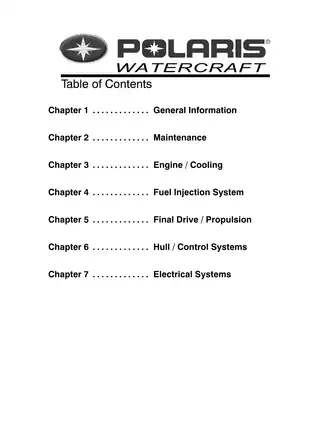

The contents allocate 12 pages to engine assembly illustrations, four to drive-system illustrations, and seven to hull assemblies. Named visual references include the W120HO-DFI Stator/Flywheel Assembly, Cooling System Flow Illustration, Fuel Injection Wiring Diagram, Pump Assembly exploded view, E.S.P. schematic, and the full-sheet MSX 140 W035303CA/B wiring diagram. Related tables supply torque sequences, fuel-pressure test data, electrical resistance and voltage checks, component clearances, wear limits, paint codes, and recommended maintenance products.

The oil-pump section warns that a misseated pump drive key can cause serious engine damage. The cooling chapter likewise flags incorrect thermostat/pop-off reassembly as a failure that can damage the engine within a very short operating period.
