2004 Polaris Freedom, Virage, Virage i, Genesis i, and MSX 140 Personal Watercraft Service Manual (P/N 9919061)

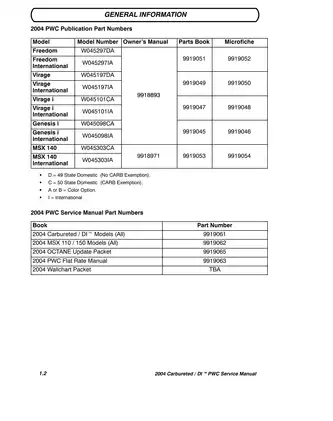

This Polaris service manual, P/N 9919061, covers the 2004 Freedom, Virage, Virage i, Genesis i, and MSX 140 two-stroke personal watercraft, with separate information for carbureted and direct-injection (DI) systems.

• Engine repair: Engine removal and installation, crankcase disassembly, piston and bearing inspection, crankshaft truing and indexing, and assembly torque sequences.

• Fuel systems: Keihin carburetor overhaul, fuel-system leak testing, Ficht injection troubleshooting, TPS checks, and EMM and injector replacement procedures.

• Cooling and exhaust: Thermostat/pop-off service, cooling-flow illustrations, Virage i water-injection solenoid maintenance, and PLANET resonator inspection.

• Jet pump and driveline: Pump removal, impeller inspection, pump-stator bearing and seal replacement, driveshaft alignment, and MSX 140 coupler measurements.

• Steering and hull: Steering-cable replacement and adjustment, reverse-linkage service, MSX 140 steering-post assembly, and hull-component drawings.

• Electrical diagnosis: Ignition and charging tests, starter-motor overhaul, instrument troubleshooting, RPM-limiter circuits, and model-specific wiring diagrams.

This manual suits technicians familiar with two-stroke watercraft and equipped for mechanical measurements and EMM diagnostics; its crankshaft repair section calls for trained Polaris service technicians with a properly equipped shop.

Engine Inspection and Assembly

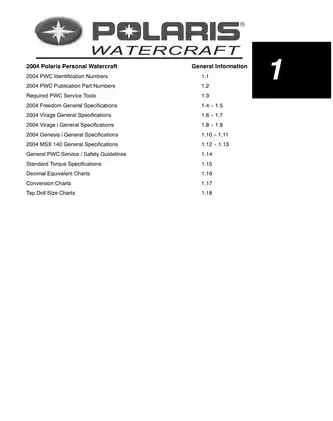

Engine assembly illustrations show the cylinder heads, exhaust manifolds, crankcases, and crankshaft components alongside torque sequences and inspection limits. General reference material also includes tap drill charts.

Crankshaft-index checks address running problems associated with hydrolock or mechanical damage. The DI procedure uses piston bumper tool 2872604 because its injector and spark-plug arrangement differs from the carbureted engine.

The MSX 140's plated cylinders receive separate treatment: only light honing is described, and measurements outside the specified limits call for cylinder replacement.

Keihin Service and Ficht Diagnostics

Carburetor coverage extends to diaphragm and needle-valve inspection, pop-off testing, accelerator-pump checks, and mixture adjustment. Fuel-delivery exploded views distinguish the carbureted and DI hose arrangements.

Ficht troubleshooting charts separate no-crank, cranks-but-won't-start, and power-loss complaints. Their links to service-code failure modes, sensor readings, and electrical tests help narrow down fuel, wiring, and mechanical faults before components are replaced.

The software sections explain static injector, ignition-coil and fuel-pump tests, timing verification, EMM data transfer, and injector replacement data. The cylinder-drop test is unavailable on Virage i; timing verification may also be unavailable on some Virage i models.

The documented diagnostic setup requires Polaris software PW-46992 and a serial-port laptop connection with communication cable 2872454. These are separate equipment requirements.

Cooling and Exhaust Troubleshooting

Model-specific cooling-flow illustrations show the water paths, including the DI EMM and stator cooling circuits. Thermostat/pop-off cleaning and exhaust-orifice inspection accompany PLANET acoustic-resonator and exhaust-hose checks.

Incorrect thermostat/pop-off reassembly can cause severe engine damage. The maintenance chapter also covers saltwater flushing, engine fogging, and seasonal storage.

Pump Alignment, Steering and Reverse Controls

Driveshaft alignment and engine-mount shimming procedures distinguish the bonded rubber couplers from the MSX 140 arrangement, which uses alignment coupler tool PW-46592. The inspection section links worn driveshaft, impeller, or coupler splines to possible alignment problems.

Pump-stator overhaul includes bearing-spacer inspection and seal installation. A short bearing spacer can side-load the bearings and cause premature wear.

Steering Control Assembly drawings support cable replacement and nozzle adjustment. Hull coverage includes footwell-pad replacement and sponson service; detailed fiberglass repair instructions are supplied with the separate repair kits.

Electrical Systems and Instruments

Start/stop regulator schematics and EMM connector views support circuit tracing. The MSX 140 Start/Stop/Gauge System diagram shows its separate instrument connections, while starter coverage includes brush inspection and armature testing.

The electrical chapter explains S.L.O.W. warnings, Multi-Function Instrument (MFI) troubleshooting, and MSX gauge operation. Genesis i PERC reverse-control layouts and MSX 140 Enhanced Steering Performance (ESP) troubleshooting cover their different control systems, including TPS readings and steering-switch checks.

Fuel and ignition work involves pressurized gasoline and high-voltage circuits; follow the manual's isolation and fuel-handling precautions.

A Sample of Engine Fit, Torque and Idle Data

These examples are a small selection of the engine specifications in the manual. For Freedom, standard piston-to-cylinder clearance is 0.0055–0.0065 in. (0.14–0.16 mm).

The MSX 140 cylinder-head bolt torque is listed as 20 ft-lb (27 Nm), alongside the assembly and tightening-sequence information.

Virage i idle speed is specified at 1250 ± 50 RPM with the craft in the water. DI idle speed is not manually adjustable.

Searchable Chapters and Wiring-Diagram Access

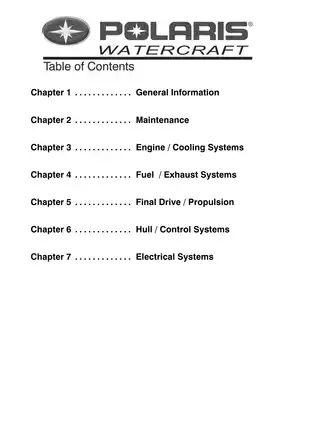

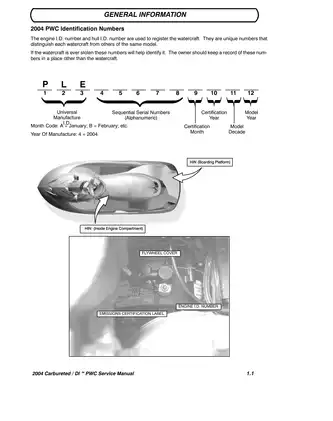

Text navigation and diagram detail: Service-chapter text is searchable, with embedded chapter and subsection bookmarks; some subsection links land one page away. The cover and final wiring-diagram graphics are not searchable. Small wiring labels require zooming.

Supplied as one printable English 298-page PDF. The total includes the cover, contents pages, four-page index, and eight-page wiring-diagram section.
