Polaris 2001–2005 PWC Service Manual: SLX, PRO 1200, Virage TX/TXi, Genesis & Genesis i (P/N 9917164)

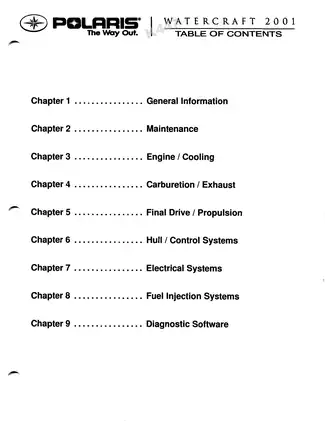

This Polaris 2001–2005 personal watercraft service manual (P/N 9917164) covers the SLX, PRO 1200, Virage TX, Virage TXi, Genesis and Genesis i. Its nine chapters address carbureted and DFI engines, propulsion, hull controls and electrical diagnosis across the different chassis configurations.

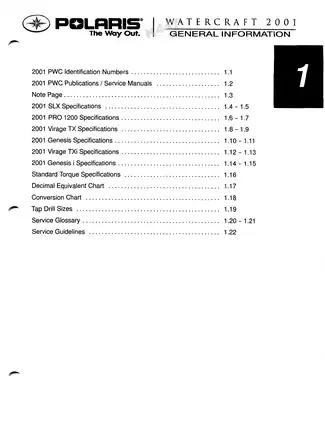

PDF Search, Bookmarks and Diagram Detail

Search and wiring detail: An OCR text layer supports searches through most chapters, with embedded bookmarks for the nine chapters, wiring diagrams and index. Some pages, including several wiring diagrams and a steering-adjustment page, lack searchable text. Small wiring labels require zooming; some dense terminal-board markings remain difficult to read.

One printable, 372-page PDF, including front and rear covers, five repeated specification pages and two additional starter-motor pages. The final-drive chapter jumps from printed page 5.9 to 5.12; printed pages 5.10–5.11 are absent.

Engine Overhaul, Fuel Diagnosis and Jet-Pump Service

The following selected coverage highlights outline the main workshop areas. Other topics include off-season storage and speedometer pressure testing.

• Engine repair: Step-by-step removal, disassembly, inspection and reassembly procedures, including cylinder honing, port chamfering, crankshaft truing and indexing.

• Carburetor service: Keihin diaphragm-carburetor overhaul, needle-and-seat pop-off testing, synchronization, accelerator-pump checks and fuel-line air-leak tests.

• DFI diagnosis: EMM service codes, sensor and injector tests, fuel-pressure checks, S.L.O.W. troubleshooting and diagnostic-software operating instructions.

• Cooling and exhaust: Thermostat/pop-off inspection, cooling-system flushing, exhaust-cooling screen cleaning and model-specific exhaust removal and installation.

• Jet-pump repair: Pump removal, stator bearing and seal replacement, impeller inspection, driveshaft checks and engine-to-pump alignment.

• Electrical troubleshooting: PVL ignition tests, starter-motor overhaul, warning circuits, MFD/MFI diagnosis and model-specific wiring diagrams.

• Hull and controls: Steering-cable replacement and adjustment, reverse controls, Quick Trim testing, SMC hull repair and FRC fiberglass repair.

Written for Polaris watercraft service technicians in a properly equipped shop, this manual assumes sound knowledge of mechanical theory, tool use and shop procedures.

Engine Inspection and Cooling Layouts

Separate carbureted and DFI assembly views identify differences in the crankcase, cylinder-head and intake arrangements. Inspection coverage extends to piston clearance, ring end gap, connecting-rod bearings and cylinder condition, with torque sequences alongside the assembly instructions.

Model-specific cooling-flow diagrams distinguish the thermostat housings and hose layouts. The manual warns that incorrect thermostat/pop-off assembly can quickly cause severe engine damage.

Keihin Carburetors and FICHT Diagnostics

The Genesis carburetor tables distinguish assemblies P/N 1253410 and 1253322, which use different jetting and base settings. The Fuel Delivery Effect Diagram explains how the overlapping metering circuits relate to throttle opening.

Fuel-line leak tests and needle-and-seat checks support diagnosis of hard starting and lean running before mixture adjustments are considered.

For DFI models, symptom-based diagnostic tables connect no-start, rough-running and low-power complaints with fuel, ignition and electrical checks. EMM connector views identify circuit pins and wire colors.

Chapter 9 documents the legacy Polaris Diagnostic Software, P/N 2873377, including cylinder-drop tests, live engine monitoring, injector replacement and EMM replacement functions. These procedures require the separate software and interface hardware.

Injector flow information is matched to the EMM and cylinder assignment. The manual warns that swapping injectors between cylinders or using injectors from another watercraft can cause serious engine damage.

Propulsion, Steering and Electrical Fault Tracing

The pump cutaway and ventilation/cavitation discussion connect poor acceleration with intake sealing, impeller condition and alignment faults. Alignment procedures specify the engine/pump alignment tool, P/N 2871343, and distinguish engine-mount corrections from pump-to-hull problems.

Steering and reverse sections cover cable routing, nozzle centering and linkage adjustment. Electrical coverage includes PERC reverse-motor testing, trim operation and bilge-pump circuits.

The RPM Limiter System Troubleshooting flowchart and starter-system test chart support fault isolation. Separate SMC and FRC repair sections address the different hull materials.

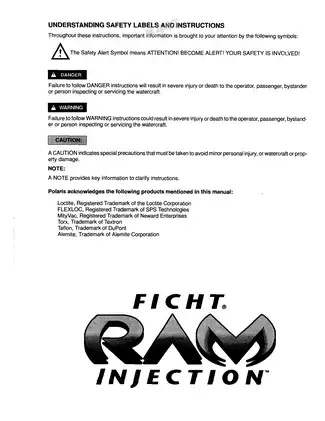

Follow the manual’s fuel-vapor, ignition-voltage and rotating-driveshaft precautions before service work.

Selected Cylinder-Head, Fastener and Electrical Data

For the carbureted engines, installed cylinder-head volume is listed as 37.72cc. The crankcase torque table distinguishes 8mm bolts at 22 ft. lbs. (30 Nm) from 10mm bolts at 28 ft. lbs. (38 Nm), both with Loctite 242.

Cooling specifications list thermostat opening at 143°F (62°C), alongside the thermostat inspection and cooling-system information.

The electrical tables list the battery specification as 12V/19A for both carbureted and DFI models. Alternator output and ignition specifications are documented separately.
