2002 Polaris Freedom, Virage, Virage TX, Virage i, Virage TXi, Genesis, Genesis i PWC Service Manual (P/N 9917370)

This Polaris service manual, P/N 9917370, covers the 2002 Freedom, Virage, Virage TX, Virage i, Virage TXi, Genesis and Genesis i personal watercraft.

Supplied as one 360-page PDF, it brings the factory service chapters and model-specific wiring diagrams together in the same file.

• Engine repair: Engine removal and installation, crankcase disassembly, cylinder and piston inspection, crankshaft truing and indexing, and assembly specifications.

• Fuel systems: Keihin carburetor overhaul, synchronization and fuel-pump testing, plus Ficht direct-injection diagnostics, injector replacement and EMM service procedures.

• Propulsion repair: Jet-pump disassembly, impeller and stator inspection, driveline alignment, and model-specific manual reverse or PERC electric-reverse service.

• Electrical diagnosis: PVL ignition and charging-system tests, starter-motor overhaul, multifunction instrument troubleshooting, connector references and individual model wiring diagrams.

• Hull and steering: SMC and FRC repair methods, through-hull fittings, steering-cable replacement and adjustment, and associated deck and control components.

• Maintenance and cooling: Scheduled service, lubrication, storage and winterization, submerged-engine procedures, thermostat/pop-off inspection, and DI cooling-system checks.

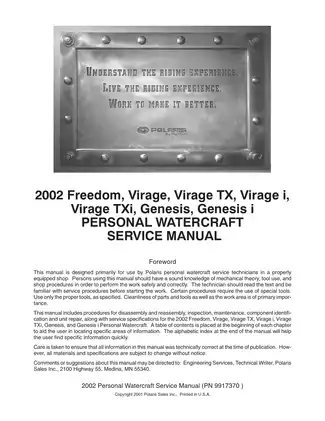

Written primarily for Polaris PWC service technicians working in a properly equipped shop, this manual assumes sound knowledge of mechanical theory, tool use and shop procedures.

Engine Platforms and Internal Repair

The 700 LE powers Freedom and Virage; Virage i uses the 800 DI. The 1200 carbureted engine serves Virage TX and Genesis, while Virage TXi and Genesis i use the 1200 DI.

Internal repair coverage extends to cylinder boring and honing, piston-ring inspection, crankshaft condition and indexing. The 700cc Crankcase Assembly exploded view identifies the associated components; engine-specific torque sequences, wear limits and clearance tables support inspection and reassembly.

Maintenance schedules are backed by oil-injection adjustment and bleeding procedures, exhaust-system service, and factory reference data for capacities, idle speed and compression ratios.

Keihin Carburetors and Fuel Delivery

Separate procedures address the single-carburetor LE arrangement and the triple-carburetor installations. Needle-and-seat pressure testing, metering-lever inspection, accelerator-pump service and synchronization are covered alongside fuel-pump and vent-system troubleshooting.

The Fuel Delivery Effect Diagram relates carburetor circuits to throttle range, giving the fuel-system repair sections context beyond a parts breakdown.

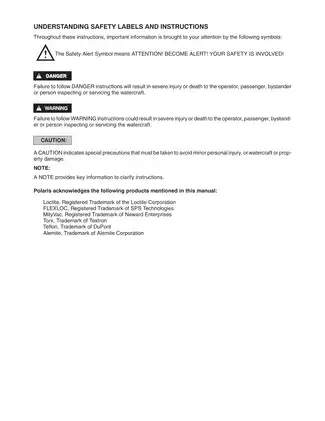

Follow the manual's fuel-pressure relief and battery-disconnection precautions before starting any teardown.

Ficht DI Diagnostics and EMM Service

The DI chapters cover TPS and crankshaft-position sensing, fuel-pressure tests, ignition output checks and EMM service codes. Static component tests and running cylinder-drop tests help isolate a weak or misfiring cylinder before further repair.

The EMM Connectors references identify the 8-, 12- and 40-pin connections. Injector replacement and flow-map programming receive separate treatment: injector calibration is tied to the EMM and cylinder position, and an incorrect injector match can cause severe engine damage.

PODIAG software procedures use the legacy DOS-based diagnostic system. Software P/N 2874118 and communication cable P/N 2872454 are identified as separate service equipment; this PDF provides the instructions, not diagnostic software or hardware.

Thermostat and DI Cooling Circuits

The Cooling System – Virage i diagram shows the EMM/stator cooling circuit and water solenoid. Inspection and testing cover the thermostat/pop-off assembly, hose routing and model-specific cooling components.

The manual warns that incorrect thermostat/pop-off assembly can cause rapid engine damage, with different housing orientation on Virage TX and Genesis requiring particular attention.

Jet Pump, Alignment and Reverse Systems

The Cutaway View of Pump supports the pump-service section, which addresses stator bearings, seals, impeller clearance and shaft runout. Alignment procedures specify pump alignment tool P/N 2871343.

Virage-family manual reverse and Genesis-family PERC electric reverse have distinct service procedures; Freedom has no reverse system. PERC coverage includes actuator testing, limit switches and electrical troubleshooting.

Ignition, Starting and Instruments

Carbureted models use Generation III PVL/CDI procedures, while DI models have EMM-specific electrical tests. Starter repair, regulator checks and multifunction-instrument diagnostics are supported by connector information and electrical test specifications.

The model-specific wiring section includes the two-sheet Genesis i wiring diagram, showing the relationship between the EMM, sensors, ignition and reverse-system circuits.

SMC and FRC Hull Repair

Hull repair distinguishes SMC from FRC construction, including structural adhesive and laminate repair methods. Steering service covers cable removal, installation and adjustment.

PDF Format and Wiring-Diagram Readability

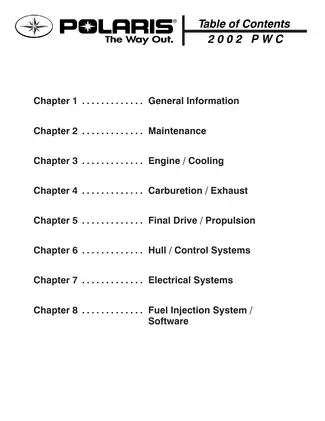

The total includes 326 numbered service-chapter pages, 10 wiring-diagram pages, 13 cover, introductory and contents pages, and 11 blank pages. These are all included in the stated page count.

Chapter text is searchable, but labels within the final wiring diagrams are not. There are no embedded PDF bookmarks. Small wiring labels require zooming, and the sideways diagrams benefit from rotating the view.
