Polaris Freedom, Virage, Virage i & Genesis i – 2003 PWC Service Manual (P/N 9918112)

The Polaris 2003 Personal Watercraft Service Manual, P/N 9918112, covers Freedom, Virage, Virage i, and Genesis i, with separate information for carbureted and direct-injection systems.

Searchable Text, Chapter Bookmarks and Wiring Detail

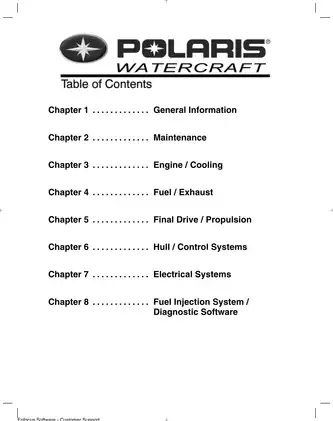

Text search and diagram navigation: Most manual text is searchable, but the labels within the six full wiring diagrams are not. Nine embedded bookmarks open the contents and eight chapters. Small wiring labels require zooming; the checked connector numbers and wire codes remain readable when enlarged.

Supplied as one printable 294-page PDF, including the front and back covers and 10 blank divider pages already counted in the total.

PWC Repair and FICHT Diagnostics

The following selected coverage highlights outline the main workshop areas rather than reproduce the complete contents. Additional topics include bilge-siphon maintenance and off-season engine fogging.

• Engine repair: Step-by-step disassembly and reassembly, cylinder and piston inspection, crankshaft indexing and truing, flywheel/magneto service, oil-pump work, and model-specific torque sequences.

• Keihin carburetion: Carburetor overhaul, pop-off and accelerator-pump testing, fuel-pump inspection, fuel-line air-leak checks, and mixture adjustment for Freedom and Virage.

• DIt diagnostics: FICHT/PODIAG service-code review, injector and ignition static tests, cylinder-drop testing, timing verification, and EMM service utilities.

• Cooling and maintenance: Model-specific cooling-flow illustrations, thermostat/pop-off service, exhaust-cooling screen cleaning, flushing, and Virage i water-injection solenoid maintenance.

• Jet-pump service: Pump removal and installation, stator bearing and seal replacement, driveshaft inspection, pump alignment, and ventilation/cavitation diagnosis.

• Hull and controls: Steering-post and cable service, nozzle centering, reverse-cable adjustment, speedometer testing, footpad replacement, and sponson installation.

• Electrical reference: Starter-motor overhaul, Hall-effect sensor tests, warning and RPM-limiter troubleshooting, wiring diagrams, EMM connector views, torque tables, and wear limits.

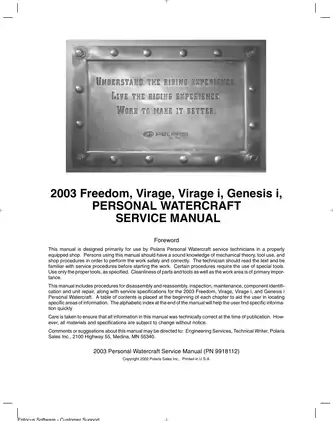

Written primarily for Polaris PWC service technicians in a properly equipped shop, this manual assumes sound knowledge of mechanical theory, tools, and workshop procedures.

Model and System Differences

Carbureted and DIt engines: Freedom and Virage use the two-cylinder Polaris Marine 700 LE with a Keihin 40mm carburetor, digital CDI, and flywheel magneto. Virage i uses the 800 DIt twin with an Engine Management Module, two injectors, and a water-injection solenoid. Genesis i uses the 1200 DIt triple with three injectors and EMM-controlled ignition.

Hull and reverse arrangements: Freedom, Virage, and Virage i have an SMC hull with an FRC top deck; Genesis i uses FRC for both. Freedom has no reverse system, Virage and Virage i use manual reverse with RPM limiting, and Genesis i uses PERC electronic reverse and a different jet-pump layout.

The MSX 140 and MSX four-stroke lines use separate service manuals.

Internal Engine Inspection and Cooling Service

Engine removal and installation coverage extends to crankcase separation, reed assemblies, starter-drive components, stator housings, and oil-pump installation. Assembly drawings distinguish the engine layouts and their tightening sequences.

Inspection sections address cylinder taper and out-of-round, piston-to-cylinder clearance, ring gap, connecting-rod clearances, crankshaft runout, and cylinder-head condition. Cylinder honing, port chamfering, and separate twin-cylinder and DIt crankshaft-indexing procedures support work beyond routine maintenance.

Crankshaft repair requires specialized equipment and trained service personnel. Mixing engine-mount alignment shims can damage driveline parts, while incorrect thermostat/pop-off assembly can quickly damage the engine.

Carburetor, Fuel Delivery and Exhaust

The Keihin chapter explains the overlapping fuel circuits through a carburetor cutaway and Fuel Delivery Effect Diagram. Jet and passage identification, diaphragm condition, control-arm height, needle-seat sealing, cleaning, and reassembly are covered alongside idle and mixture setup.

Fuel-system illustrations show hose routing, tank assemblies, and the different water-separation arrangements. Exhaust coverage adds model-specific exploded views and troubleshooting for leaks, restricted hoses, damaged resonators, and overheating.

PODIAG Tests and EMM Service Limits

The DIt chapter distinguishes hard and intermittent service codes and documents RPM profiles, service reports, EMM identification, replacement-EMM data transfer, and real-time engine monitoring. Troubleshooting charts address no-crank, crank/no-start, loss of power or top end, and communication faults.

Cylinder-drop testing helps identify a weak or misfiring cylinder, while the monitoring screens support checks of sensor behavior and charging-system operation.

Injector replacement: The Injector Information screen checks cylinder-to-injector serial-number assignments. Loading a replacement injector’s flow-map data is no longer supported by PODIAG; the manual directs technicians to the instructions supplied with the replacement injector.

The diagnostic procedures require separate software, cables, adapters, a service power connector, and a DOS-capable laptop. These are not included with the PDF.

Pump Alignment, Controls and Electrical Diagnosis

The ventilation/cavitation section helps distinguish intake air leaks, alignment faults, impeller damage, and worn housings from engine-related performance complaints. Driveshaft/coupler exploded views and pump-alignment diagrams accompany coupler, sacrificial-anode, intake-scoop, and ride-plate service.

Bearing assemblies: Pump-stator bearings and seals have replacement procedures. The driveshaft bearing-carrier housing is inspected and replaced as a complete assembly rather than rebuilt. Forcing the impeller spacer through new pump-stator seals can damage their lips and allow water into the bearing housing.

Electrical coverage distinguishes LR-505 start/stop regulation on the carbureted models from LR-503-1 control on the DIt models. It includes charging tests, MFI diagnosis, Genesis i compass calibration, dynamic ignition timing, and PERC motor/limit-switch checks. The PERC continuity-test table carries a 2002-model procedure note.

Reference drawings include model-specific cooling-flow diagrams, the Keihin cutaway, PERC connector/continuity tables, the DIt Fuel Injection Wiring Diagram, EMM pin-location views, and full wiring diagrams for all four models.

Hull repair scope: SMC/FRC repair guidance refers detailed material preparation and cure instructions to the repair kits and recommends consultation with a marine fiberglass repair facility.

The service-tool references identify timing adjustment tool P/N 2872290, EMM communication cable P/N 2872454, FICHT diagnostic software P/N 2874492, service power connector P/N 2872456, and pump alignment tool P/N 2871343.

Fuel, battery, rotating driveline, and DIt ignition work require proper isolation and the specified test equipment. Follow the manual's warnings before cranking or running the watercraft during repair or diagnosis.

A Preview of Fuel-Pressure and Sensor-Test Data

For Freedom and Virage, the Keihin specifications list a needle-and-seat pop-off pressure of 18–21 PSI. The DIt fuel-system pressure specification is 20–30 PSI (138–207 kPa).

The DIt sensor-test table specifies an air-temperature sensor resistance of 990–1010 Ω at 77°F (25°C).
