Kymco People 250 Scooter 1999–2005 Service Manual (P/N 4122-LLJ3-S00)

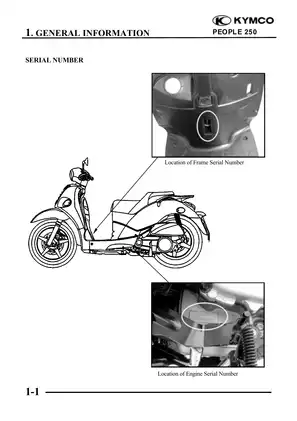

This factory Kymco People 250 service manual covers the BC50AA model identified in the General Information section. It is the First Edition, March 2003, publication 4122-LLJ3-S00, delivered as a 229-page PDF split into a cover/preface file and 19 numbered service sections. Its teardown depth, measurement-based inspections, and special-tool callouts make it suited to professional technicians and experienced owners who already understand normal motorcycle workshop practice.

• Engine repair: Covers engine removal and installation, oil-pump service, cylinder-head and valve disassembly, camshaft timing and installation, cylinder and piston inspection, crankcase separation, and crankshaft checks.
• CVT and final drive: Details drive and driven pulley removal, V-belt and weight-roller inspection, clutch/driven-pulley disassembly, bearing replacement, and final-reduction teardown and reassembly.
• Cooling system: Documents system testing, radiator and fan service, water-pump repair, mechanical-seal replacement, thermosensor and thermostat testing, coolant refill, leak checks, and air bleeding.
• Fuel system: Explains the CVK carburetor circuits and covers vacuum- and float-chamber service, auto bystarter and air cut-off valve inspection, float-level checks, vacuum fuel-pump repair and output testing, plus fuel-tank and strainer removal.
• Brakes and chassis: Includes frame-cover and exhaust removal, steering-head race service, front and rear wheel work, fork and shock removal, brake master-cylinder and caliper overhaul, and hydraulic brake bleeding.

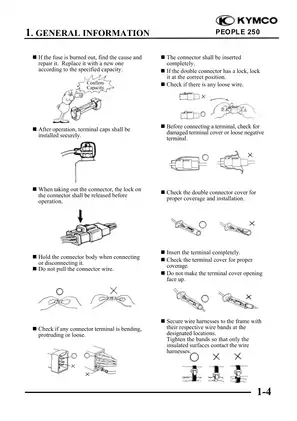

• Electrical diagnosis: Provides system-by-system procedures for the battery and charging circuit, A.C. generator and regulator/rectifier, CDI ignition, starter motor and relay, switches, gauges, lighting, thermostatic switch, and side-stand switch, with electrical test values and continuity tables.

BC50AA Service Data and Troubleshooting

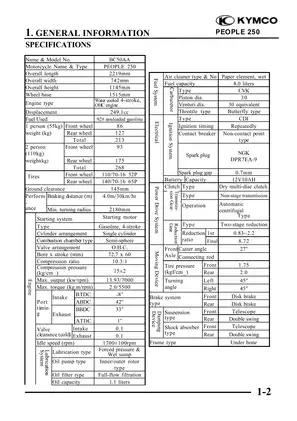

The specifications identify the covered powerplant as a 249.1cc, water-cooled, four-stroke OHC single with a CVK carburetor, dry centrifugal clutch, continuously variable transmission, and two-stage final reduction. The engine chapters pair parts-location drawings with component inspection points, service limits, clearance data, lubrication requirements, and fastener-specific torque information for repair and reassembly.

Section-based troubleshooting traces hard starting, poor low-speed running, overheating, abnormal engine noise, low oil pressure, drive-belt slip, clutch engagement faults, wheel wobble, weak braking, charging failure, loss of spark, and starter problems. The ignition chapter also makes an important scope distinction: ignition timing is not adjustable on this CDI system, so incorrect timing is handled through CDI and A.C. generator inspection rather than an adjustment procedure.

Routine service coverage includes the maintenance schedule, throttle free play, engine and final-drive oil, air cleaner and spark plug, valve clearance, idle speed, cylinder compression, drive belt and clutch-shoe wear, coolant, brake fluid, brake pads and discs, steering-head bearings, wheels, tires, and suspension. The related tables supply capacities, wear limits, electrical readings, adjustment data, and engine- and chassis-specific torque specifications for each covered assembly.

Factory Tools, Diagrams, and Assembly Cautions

The special-tool chart identifies tools by application and, where supplied, by factory number. Examples include clutch spring compressor E034, bearing puller E037, valve spring compressor E040, oil-seal and bearing installer E014, flywheel puller E003, universal holder E017, flywheel holder E021, and steering-stem lock-nut socket F002. The manual also calls out a tappet adjuster, float-level gauge, and mechanical-seal driver where those operations require them.

Visual support includes the complete vehicle wiring diagram, multi-page cable and harness routing views, the lubrication-system flow diagram, cooling-system exploded schematic, fuel-system routing and vacuum-pump construction views, and charging, ignition, starting, and heater circuit diagrams. Section-opening assembly drawings and labeled component photographs support the written removal, inspection, and installation procedures.

During front-wheel installation, the manual warns that the speedometer gear unit must be indexed to the hub and fork tab or its retaining pawl can deform as the axle is tightened. Clutch/driven-pulley disassembly requires the specified spring compressor to prevent damage to the clutch spring.

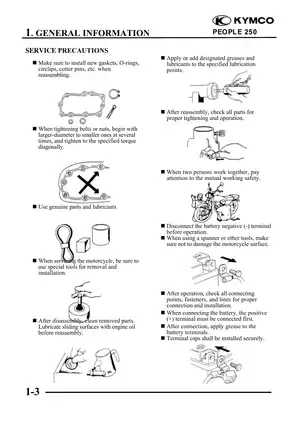

This publication is a repair reference, not a substitute for normal shop safety. Cooling-system work must begin with the engine cool, and fuel-system work requires a ventilated area free of sparks or flame; brake service also calls for the specified fluid and protection of painted and plastic surfaces.
