1999 KYMCO People 50 Scooter Service Manual

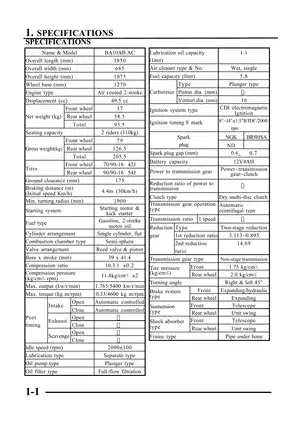

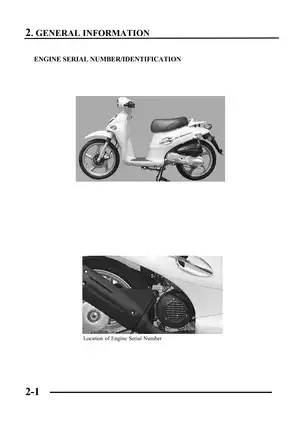

The January 1999 KYMCO People 50 service manual covers the air-cooled two-stroke scooter identified throughout the specifications and service sections as BA10AB.AC and BA10AB.AC.50.

Searchable Text, Chapter Bookmarks and Wiring Detail

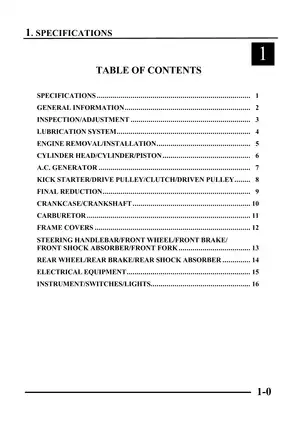

Search and diagram detail: Body text is searchable, with 17 chapter bookmarks labeled in Italian. Text inside the full wiring diagram is not searchable, and some small labels remain blurred when enlarged. The separate charging, ignition and starting circuit schematics are clearer.

One printable, English-language 189-page PDF, including the unnumbered preface.

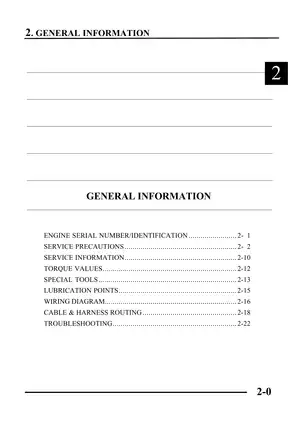

Two-Stroke Engine, CVT and Electrical Service

These selected service topics outline the main workshop coverage. Other subjects include frame-cover removal and fuel-gauge and oil-level sender checks.

• Engine repair: Engine removal and installation, cylinder-head and piston inspection, crankcase separation, crankshaft measurement, and bearing replacement.

• Lubrication system: Oil-pump removal and inspection, control-cable synchronization, oil-line bleeding, and oil-tank service.

• CVT and kick starter: Drive-belt replacement, drive-pulley and roller inspection, clutch/driven-pulley disassembly, and kick-starter mechanism service.

• PB058 carburetor: Disassembly and passage cleaning, float-level inspection, auto-bystarter testing, air-screw adjustment, and reed-valve inspection.

• Brakes and chassis: Front hydraulic-brake service, rear drum-brake shoe replacement, steering-bearing work, wheel inspection, and front and rear shock-absorber service.

• Electrical troubleshooting: A.C. generator, charging, ignition and starter-relay tests, supported by circuit diagrams, resistance tables, and cable and harness routing illustrations.

Written for service personnel, the manual calls for mechanical measuring tools, electrical testers, and dedicated pullers or compressors for internal repairs.

Engine Inspection and Lubrication Limits

The cylinder head, cylinder and piston can be serviced with the engine installed; crankcase and crankshaft work requires engine removal. Inspection procedures cover cylinder wear, piston pins, ring gaps and connecting-rod play, with illustrations showing the crankcase assembly tools.

The oil-pump section covers external inspection, installation and bleeding rather than internal pump overhaul. Its cautions explain how air trapped in the oil lines can interrupt lubrication and cause severe engine damage.

Drive-Belt, Clutch and Carburetor Work

Step-by-step instructions cover drive-belt replacement, clutch/driven-pulley disassembly, bearing replacement and final-reduction assembly. Component inspection criteria and troubleshooting charts support repair planning by distinguishing belt, roller, clutch and gear faults.

Auto-bystarter diagnosis combines resistance measurements with fuel-enrichment passage tests. The electrical section also identifies faulty resistors as a possible cause of poor bystarter operation. Carburetor cautions address damage to the air-screw seat from forceful seating.

The preface references an emissions-control Section 17, but that section is not included in this PDF, which ends with Section 16.

Brake, Suspension and Steering Repairs

Front hydraulic-brake coverage extends to fluid replacement and bleeding, master-cylinder disassembly, piston and cup inspection, and caliper reassembly. Rear drum-brake illustrations show brake-shoe removal, brake-cam installation and wear-indicator alignment.

Suspension procedures include shock-absorber disassembly and steering-race replacement. Review all foundational safety protocols and stabilize the scooter properly before removing any chassis components or opening engine casings.

Electrical Fault Isolation and Circuit References

Factory troubleshooting charts connect starting and running symptoms with fuel-supply, compression and ignition checks. These references support component inspection and electrical testing before replacement parts are selected.

Diagram coverage includes the BA10AB.AC Wiring Diagram, Charging System, Ignition System, Starting System, and Cable & Harness Routing illustrations. Regulator/rectifier and CDI test tables specify Sanwa or Kowa testers because meter type and range can affect the readings.

Cylinder-Head Torque, Gear-Oil Capacity and Ignition-Test Examples

The engine service data lists cylinder-head bolt torque at 1.5–1.7 kg-m. Final-reduction service information specifies 0.12 liter of gear oil following disassembly.

In the ignition-coil continuity-test section, primary resistance is listed as 0.153–0.187 ohm at 20°C. This test-specific information accompanies the circuit diagrams and component inspection procedures.
