2001-2003 Indian Chief Service Manual (305 P.)
Chief Vintage, Standard, Deluxe & Roadmaster troubleshooting and repair procedures — electronic ignition diagnostics, carburetor tuning, transmission overhaul, and primary/rear drive service. Complete Indian POWERPLUS™ engine rebuild specs.
Manual Preview

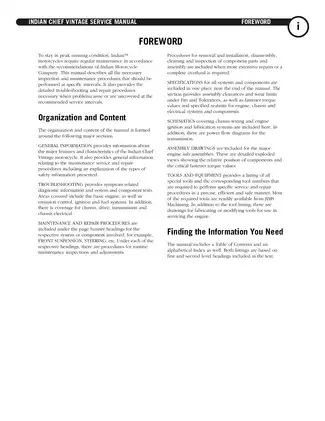

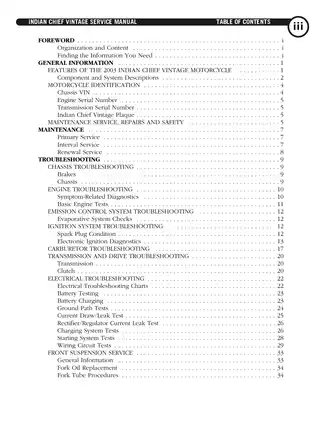

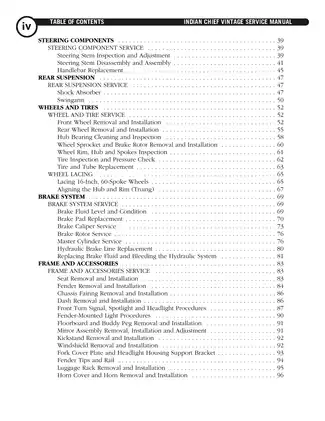

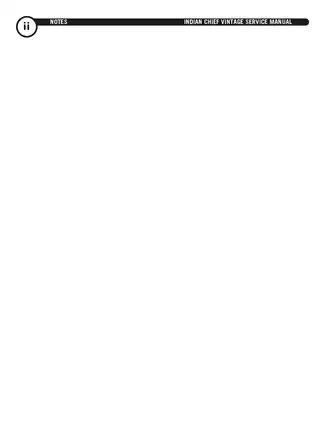

Sample pages from the 2001-2003 Indian Chief Service Manual (305 P.) manual
Purchase & Download
Models Covered & Key Technical Specifications
Indian Chief Vintage, Standard, Deluxe, Roadmaster, Springfield — 2001–2003 Certified Documentary Overview | Chief Series Repository.
- Engineered Footprint Data: 100 cubic inches is configured at the engine cylinder displacement Mapping.
- Measured Imaging Specs: For optimal performance, 67 hp at 4750 rpm represents the maximum rated horsepower Configuration.
- Standard Tightening Data: 78 foot-pounds at 3800 rpm limits the peak crankshaft torque output Benchmarks.
- Prescribed Gap Specs: The compression ratio requires 9.2:1 for standard combustion chamber pressure Range.
- Nominal Power Draw: Tank capacity maintains 5.5 gallons (including 1.2 gallon reserve) Sequences.
- Verified Component Weight: Wheelbase achieves 68.4 inches dimensional accuracy Baseline.
Professional Workshop Service Manual & Technical Specifications
Functional Calibration Manual: 2003 Indian Chief Vintage, Standard, Deluxe, Roadmaster & Springfield Models Workshop-Compendium
Diagnostic-Area: Indian Chief Vintage, Standard, Deluxe, Roadmaster & Springfield (2001–2003); Scout Standard/Deluxe/Springfield, Scout Centennial (2001–2003); Spirit Standard/Deluxe/Roadmaster/Springfield (2001–2003); Terminator 3 Chief (2003) // Documentation-Type: Factory Service & Technical Maintenance Operations // Operational-Framework: 311 pages covering engine, chassis, electrical, and drivetrain systems.
| System Category | Component Coverage | Documentation Provided |
|---|---|---|
| Engine & Powerplant | V-Twin 100 CID POWERPLUS engine, fuel systems, ignition, lubrication | Complete specifications with assembly drawings |
| Chassis & Suspension | Front fork (Paioli), rear swingarm, brakes, wheels, steering | Torque values and adjustment procedures documented |
| Drivetrain | Primary chain, clutch, 5-speed transmission, rear belt drive | Power flow diagrams and maintenance specifications |
| Electrical | Charging, starting, lighting, wiring circuits | Troubleshooting charts and diagnostic procedures |
Table of Contents Overview: This comprehensive reference addresses front suspension components and system descriptions, methodically covering motorcycle identification and maintenance service intervals, examines troubleshooting for chassis and engine conditions, documents transmission and drive systems, and provides electrical component specifications, detailing frame and accessory service procedures, fuel system operations, and ignition system maintenance.
Adjustment procedures are detailed for the complete range of mechanical systems. The manual encompasses rocker box assemblies, pushrod and tube configurations, and cylinder head operations specific to both front and rear cylinder installations. Timing procedures are documented for the electronically controlled ignition system, with technical notes provided for the trigger plate and speedometer sensor diagnostics. Quality checks are addressed for the carburetor circuits, float bowl assembly, and jet needle positioning.
The engine section documents crankcase disassembly sequences, connecting rod alignment specifications, and flywheel assembly procedures. Detailed exploded views and part illustrations accompany all major engine sub-assemblies. The primary drive section includes chain adjustment methodology, compensator assembly operations, and clutch component identification. The document references torque specifications for the engine fastener assemblies to ensure proper mechanical alignment.
Methodical operation coverage extends to the rear drive belt system with alignment and tension adjustment data. The transmission maintenance section includes shift control linkage procedures and fluid service intervals. Electrical system documentation provides battery testing protocols, charging circuit evaluation, and starting system diagnostic sequences. The brake system section documents fluid specifications and caliper service procedures across front and rear applications.
Note: This manual documents torque specifications for fastener assemblies throughout the engine, chassis, and drivetrain systems to ensure proper mechanical assembly. All service procedures reference specific measurement tolerances and clearance requirements as established in the Specifications section.
