Indian Chief PowerPlus 100 Engine Service Manual (2002–2003)

This factory engine service manual covers the Indian Chief PowerPlus 100 with a carburetor and electronic ignition. It details scheduled maintenance, in-chassis engine repair, and engine removal and installation for a full rebuild. Chassis and accessory procedures focus on access to the engine.

PDF Search, Navigation, and Page Count

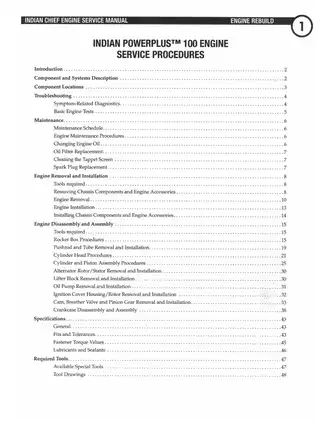

Finding sections: The manual opens with a printed table of contents. PDF text search and embedded bookmarks are unavailable.

One printable, English-language PDF contains 50 pages, including 48 numbered manual pages, the front cover, and a blank final page.

Engine Testing, Top-End Repair, and Crankcase Rebuild

This selection of procedures and references highlights the main engine work. The manual also covers carburetor flooding symptoms and primary chain adjustment during engine installation.

• Diagnosis and maintenance: Symptom-based troubleshooting, cylinder leak-down and compression tests, scheduled oil and filter changes, tappet screen cleaning, and spark plug replacement.
• Engine removal and installation: Chassis and accessory removal, primary chain housing and compensator sprocket removal and refitting, and engine installation.
• Top-end repair: Rocker box service, pushrod and tube removal, cylinder head and intake manifold work, valve guide and seat service, and piston, ring, and cylinder inspection.
• Crankcase and timing: Case separation and reassembly, flywheel and crank assembly removal and refitting, bearing installation, and camshaft, breather valve, and pinion gear service.
• Oil pump, lifters, and ignition: Gerotor oil pump and lifter block removal, inspection, and installation, plus alternator rotor and stator service and ignition rotor removal and installation.
• Assembly references: Fastener torque tables, fits and wear limits, lubricant and sealant specifications, exploded views, timing illustrations, and dimensioned tool drawings.

This manual suits mechanics experienced in internal engine repair and equipped for precision measurement, bearing installation, and valve work.

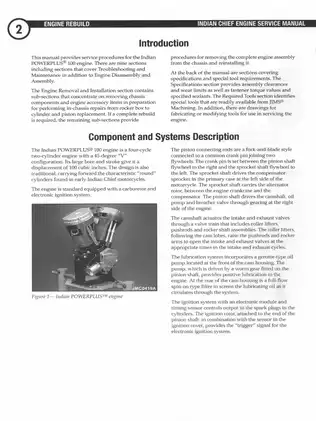

Engine Diagnosis and In-Chassis Repair

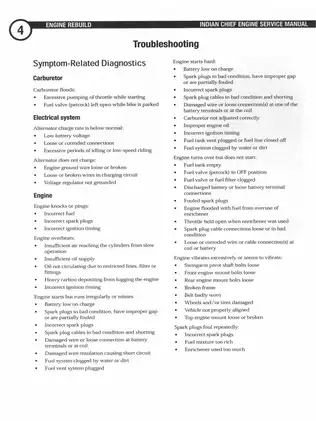

Troubleshooting lists cover hard starting, misfires, overheating, vibration, charging faults, and oil return problems. The compression and leak-down test sections help narrow down ring wear, valve-seating problems, and head-gasket leaks before teardown.

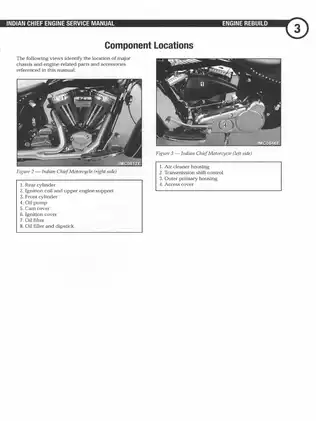

Rocker boxes, heads, cylinders, pistons, pushrods, and lifter blocks can be serviced with the engine in the chassis once access components are removed. The engine removal section includes fuel-handling and battery-disconnection precautions. Electrical coverage is limited to symptom checks and engine-component service. Vehicle wiring diagrams are outside its scope.

Cylinder Head, Valvetrain, and Crankcase Details

The pushrod diagram identifies each position by color and length. The manual also distinguishes front and rear cylinder heads, lifter blocks, and cylinder base gaskets so parts can be matched to the correct cylinder during reassembly.

Rocker shaft procedures cover shaft orientation and support bracket alignment. Cylinder head procedures detail valve seat recutting, guide finishing, spring testing, and valve seat insert fits. Crankcase and timing work includes sprocket shaft bearing and seal installation, gear timing marks, and camshaft end play checks.

The stator section shows where the leads sit against the crankcase to avoid rotor contact. The cylinder removal section identifies the risk of piston damage from contact with exposed studs.

Cylinder head tightening: The torque table distinguishes new engines or new studs from rebuilt engines or used studs. Its tightening stages differ from those on the cylinder head installation page, so the applicable specification requires clarification before assembly.

Assembly Figures and JIMS Tools

The 87 numbered figures include assembly photographs and exploded views of the rocker boxes, pushrods and tubes, cylinder heads, and the pinion shaft, camshaft, and breather valve. A dimensioned drawing shows the cam cover puller.

The tool list identifies the JIMS 1006T engine stand, 1071 flywheel rebuilding jig, and 33443-84 tappet block alignment tool. The drawings give the dimensions needed to make the cam cover puller and modify piston lock ring driver 96780-58A-2 and collar 96781-72-2, so those tools can be prepared before teardown.

Cylinder Head and Crankshaft Inspection Examples

For cylinder head gasket-surface flatness, the table lists 0.003 in as standard and 0.005 in as the wear limit. The intake valve seat width is specified at 0.041–0.063 in.

For the flywheel and crank assembly, standard connecting rod-to-crank pin clearance is 0.0004–0.0017 in. The table places clearance above 0.002 in beyond the wear limit.
